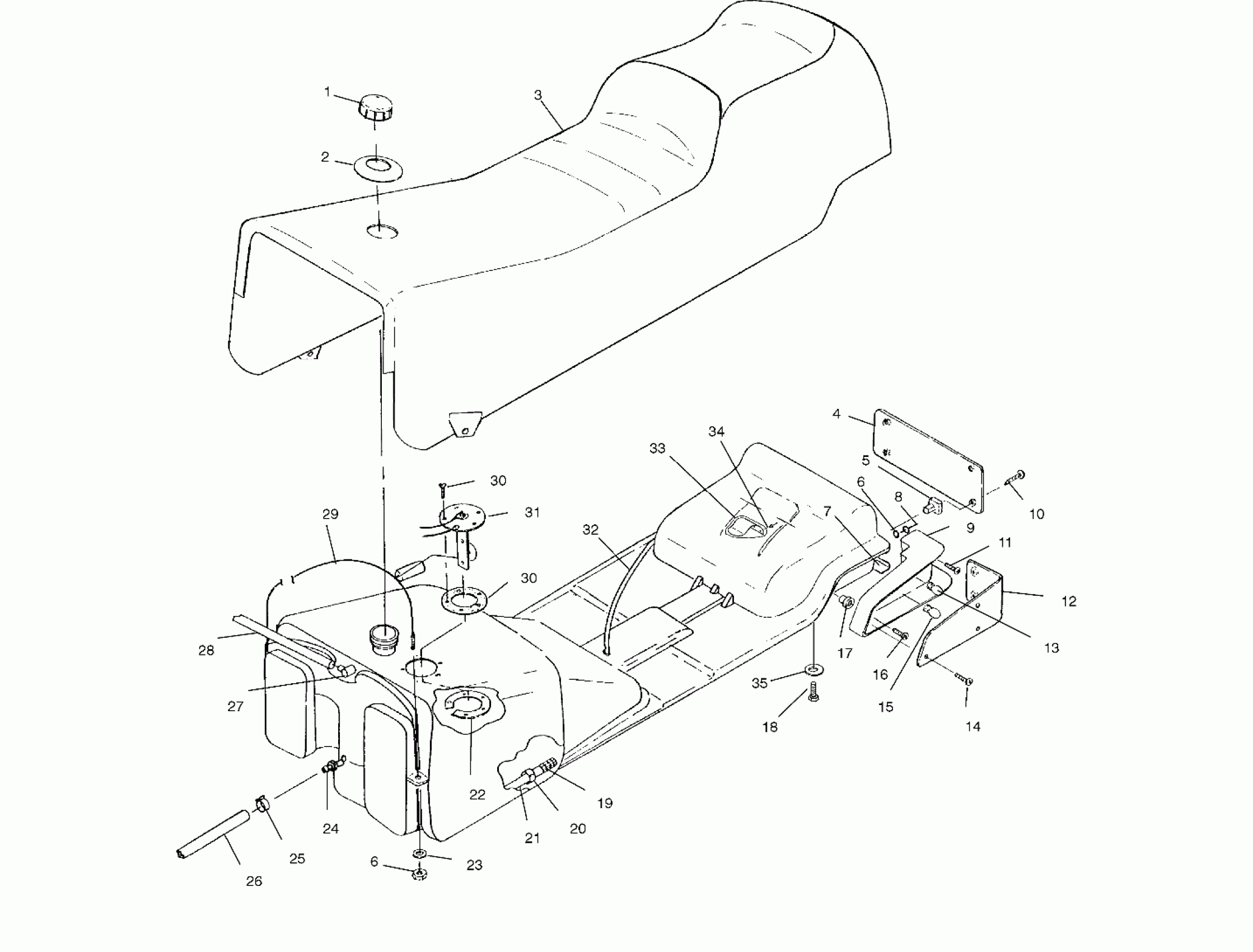

Polaris 600 TOURING - S00ST6ES SEAT and GAS TANK - S00ST6ES (4954135413A006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,FUELTANK,W/GASKET

2511226

Unavailable

2

GROMMET,FUELTANK

5410842

Unavailable

3

COVER ASM,SEAT,TOUR

2682368

Unavailable

3

SEAT,CUSION,TOUR (Incl. 3,4-17,19-21,24,27)

2682484

Unavailable

4

REFLECTOR,CTR,SEAT

5432008

Unavailable

5

NUT(10)

7546908

$2.63

6

NUT(10)

7541925

$1.49

6

NUT(10)

7541925

$1.49

7

DESC NOT_AVAILABLE

1012838-067

Unavailable

8

RIVET(50)

7621433

$1.49

9

HOUSING,LH,LENS

5432002

Unavailable

9

HOUSING,RH,LENS

5432003

Unavailable

10

SCREW(10)

7511840

Unavailable

11

SCREW,SELF-TAP(10)

7522004

Unavailable

12

LENS,RH

5432032

$44.51

12

LENS,LH

5432031

Unavailable

13

Bulb, Brakelight

4030045

Unavailable

14

SCREW(10)

7512054

$2.39

15

BULB, T/L.

4032084

Unavailable

16

SCREW(10)

7511954

$1.19

17

NUT, WELL(10)

7541901

$6.39

18

SCREW(10)

7512242

$2.39

19

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

20

RING, COMPRESSION(10)

7080402

$1.60

21

DESC NOT_AVAILABLE

8350019-1525

Unavailable

22

FLANGE-FUEL TANK MOUNTING

5244067

Unavailable

23

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

24

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

27

FITTING,90 DEG,1/8,(10)

7052095

$4.79

28

FUELLINE,3MMX7MM

8450061-600

Unavailable

29

CABLE,TANK,RETENTION

7080559

Unavailable

30

HDWE.PKG,SEND.UNIT

2410012

Unavailable

30

HDWE.PKG,SEND.UNIT

2410012

Unavailable

31

SENDER,FUEL-LEVEL,W/GASKET

3280227

Unavailable

32

HARNESS,T/L,(TOUR)

2460524

$58.39

33

RETAINER-CLIP TOOL POUCH,TOUR

5243593

$11.35

34

RIVET, BLIND(50)

7621467

$1.49

35

WASHER,WROUGHT(10)

7558302

$1.59
