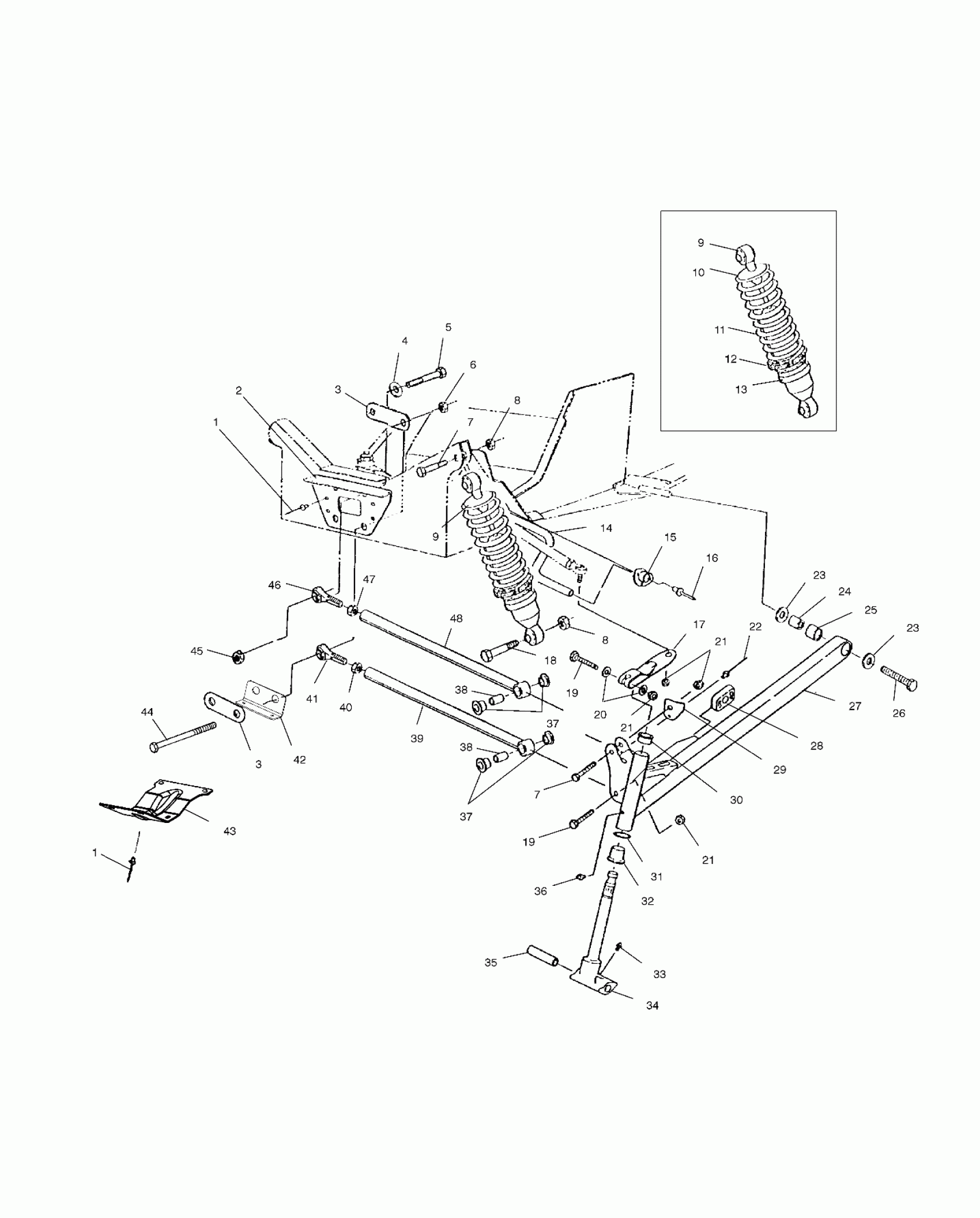

Polaris 600 TOURING - S00ST6ES FRONT SUSPENSION - S00ST6ES (4954135413B003) Diagram

#

Description
Price

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

BRACE,BULKHEAD,FRONT,BLK

1012575-067

$23.99

3

STRAP,SPACER BOTTOM

5211345

$12.99

3

STRAP,SPACER BOTTOM

5211345

$12.99

4

WASHER THRUST(10)

7558702

$1.59

5

BOLT(10)

7512551

Unavailable

6

NUT FLEX,(10)

7542703

Unavailable

7

BOLT(10)

7515415

$1.49

7

BOLT(10)

7515415

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

9

SHOCK-GAS,IFS,SELECT

7041795

Unavailable

9

SHOCK-GAS,IFS,SELECT

7041795

Unavailable

10

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

11

SPRING,COMPRESSION

7041551-067

$74.99

12

RING,SPRING PRELOAD ADJ.

5431734

$52.60

13

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

14

TORSION,BAR,5/8,X-12,CRC

5243438-067

$49.59

15

BUSHING,SWAY BAR

5432038

$19.99

16

RIVET,(50)

7621477

$1.19

17

ARM,LH,STRG,BLK.

5241660-067

Unavailable

17

ARM,RH,STRG,BLK.

5241661-067

Unavailable

18

BOLT Substituted by 7515491

7515433

$1.59

19

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

19

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

20

WSHR-.813X.406X.105-Y

7555832

$2.39

21

NUT LOCK(10)

7542403

$3.99

21

NUT LOCK(10)

7542403

$3.99

21

NUT LOCK(10)

7542403

$3.99

22

RIVET(50) Substituted by 7661130

7661643

Unavailable

23

WASHER(10)

7555721

$1.49

23

WASHER(10)

7555721

$1.49

24

TUBE, BUSHING

5010310

$9.70

25

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

26

BOLT(10)

7512557

$7.60

27

ARM,TRLG,LH,CRC. Substituted by 2201470 (Incl. 24,25)

1822517

Unavailable

27

ARM,TRLG,RH,CRC. Substituted by 2201471 (Incl. 24,25)

1822518

Unavailable

28

SLIDE,SWAYBAR,5/8

5432561

$24.27

29

STOP,LH,STRG,BLK

5241777-067

$15.08

29

STOP,RH,STRG,BLK.

5241778-067

$18.23

30

BUSHING-FLANGE

3573909

$2.39

31

WASHER SPECIAL(10)

7556509

$1.59

32

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

33

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

34

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

35

BUSHING,PIVOT,(10)

5010158

$19.99

36

ZERK,FITTING,THREADED(10)

7080433

$1.49

37

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

37

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

38

BUSHING-RADIUS ROD,(10)

5010127

$7.99

38

BUSHING-RADIUS ROD,(10)

5010127

$7.99

39

RADIUS ROD,LOWER,BLK

1820673-067

Unavailable

40

NUT-JAM(10)

7542711

$2.39

41

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

42

BRKT,RAD.ROD,BTM.

5242578

$44.99

43

Brace, Pan, Lower (See Nosepan Pg. A9, Ref. 17)

-------

Unavailable

44

BOLT(10)

7512684

Unavailable

45

NUT, LOCK,(10)

7542503

$10.39

46

ROD,END,7/16 LINED Substituted by 7061049

7061010

Unavailable

47

NUT JAM(10)

7542520

$2.39

48

RADIUS ROD,UPPER,BLK

1820672-067

$36.37
