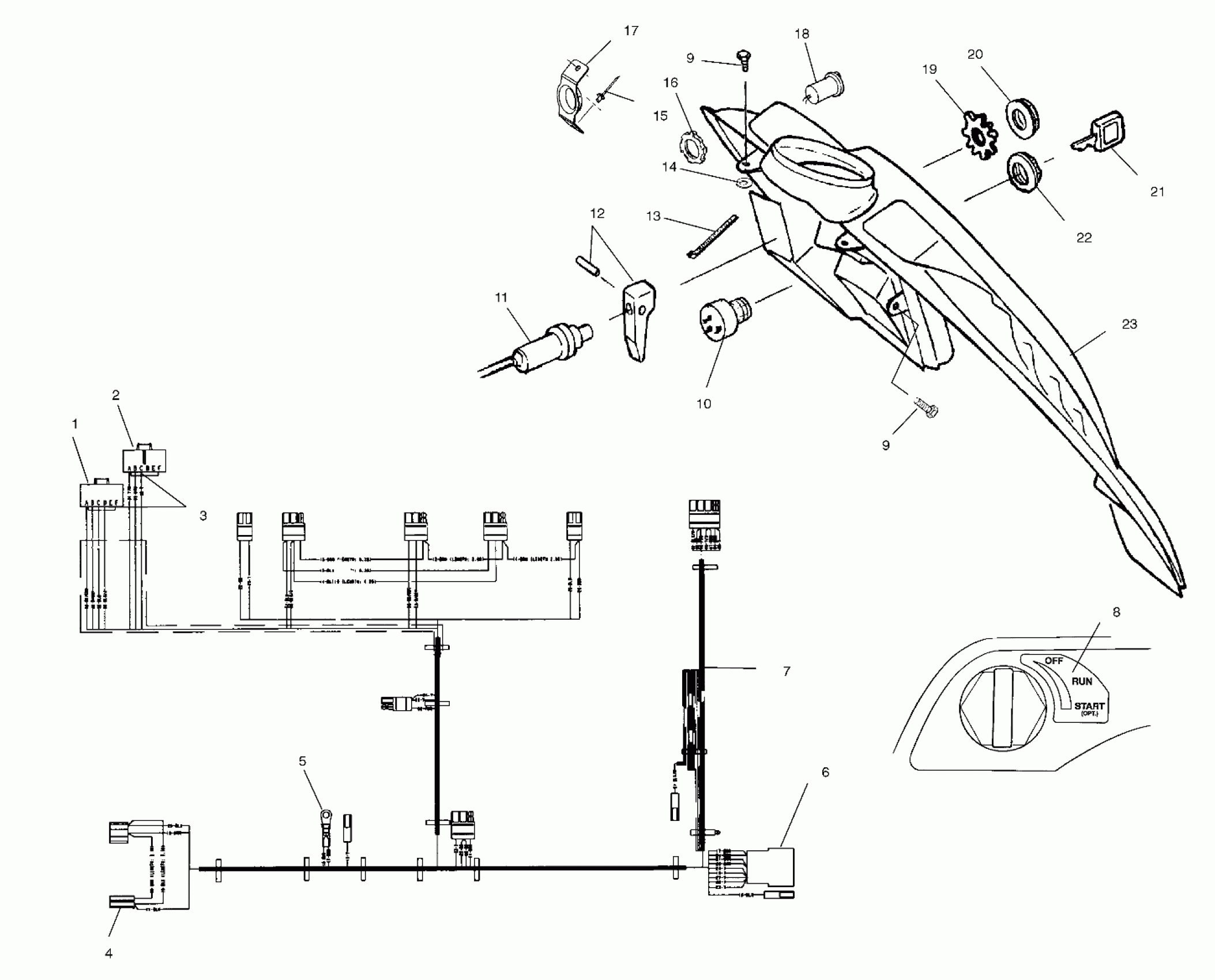

Polaris 600 TOURING - S00ST6ES CONSOLE - S00ST6ES (4954135413B001) Diagram

#

Description
Price

1

HOUSING-CONNECTOR,PAC#12064860

4010194

$15.99

2

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

3

SOCKET-PACKARD#12047767

4010192

Unavailable

4

HOUSING

4020063

$3.19

5

Terminal, Ring

4020092

Unavailable

6

Housing w/Receptacle

4020057

$3.51

7

HARNESS-MAIN TPS,GEN 2,COMMON

2460725

Unavailable

8

DECAL-IGNTN,OFF/PREM/REG/START

7078148

Unavailable

9

SCREW(10)

7515199

$1.49

9

SCREW(10)

7515199

$1.49

10

KIT-IGNITION SWITCH,ES,FUEL

2201614

$89.03

11

CABLE,CHOKE,SINGLE-PULL (Incl. 12,20)

7080734

Unavailable

12

KIT,CHOKE LEVER (Incl. Pin)

2201439

$24.27

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

WASHER,NYLON

7555932

$2.39

15

RIVET, POP(50)

7621330

$1.49

16

NUT,SLEEVE TYPE

7547110

$9.52

17

GUIDE-RECOIL

5243049

$9.70

18

PLUG (POWER 12V (Incl. 16)

2410097

Unavailable

19

WASHER-LOCK(10)

7571610

$3.99

20

NUT,CHOKE

5432944

$8.79

21

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

22

NUT,IGNITION

7547035

$8.79

23

CONSOLE-HYB,STD,PWR PLUG,REV

5433281

Unavailable
