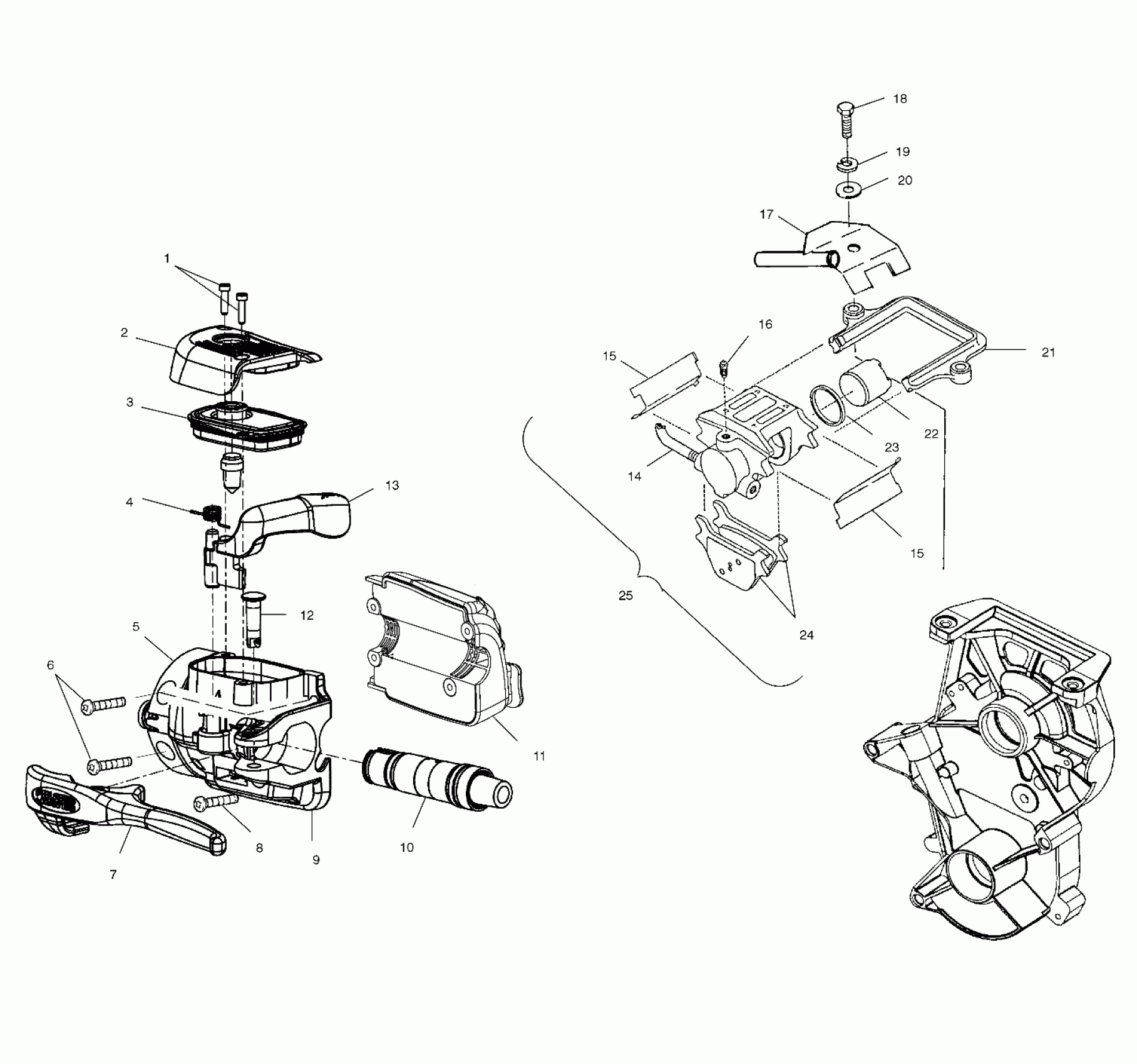

Polaris 600 TOURING - S00ST6ES BRAKE - S00ST6ES (4954135413B002) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,12)

2050087

$304.98

6

SCREW(10)

7517441

$2.39

7

LEVER AND PIVOT PIN,HAYES,KIT Substituted by 2201943

2201569

$52.60

8

SCREW(10)

7517566

$3.99

9

KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948

2201249

$304.98

9

SWITCH,BRAKE LIGHT

4010157

Unavailable

10

KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944

2201248

Unavailable

11

CONTROL ASM,LH,(BASIC)

2010167

$93.08

12

KIT,PIVOT PIN,(HAYES) Substituted by 2201946

2201252

Unavailable

13

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

14

LINE-BRAKE,HYBRID

1910313

Unavailable

15

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

15

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

16

KIT, INLET

1930735

$9.11

17

GUIDE,ROPE,CHAINCASE-Z

1012581

Unavailable

18

BOLT(10)

7515521

$3.99

19

WASHER(10)

7552603

$1.49

20

WASHER(10)

7555806

$1.49

21

KIT,CALIPER BRKT.

1930733

Unavailable

22

KIT, PISTON SEAL (Incl. 23)

1930734

Unavailable

23

SEAL

2200466

$32.37

24

KIT,BRAKE,PAD TYPE 81(LARGE) (Incl. 15)

2201430

Unavailable

24

KIT,BRAKE,PAD TYPE 81(SMALL) (Incl. 15)

2201429

Unavailable

25

BRAKE CALIPER,HD,LIQ,NOSW (Incl. 22,23,24)

1910344

Unavailable
