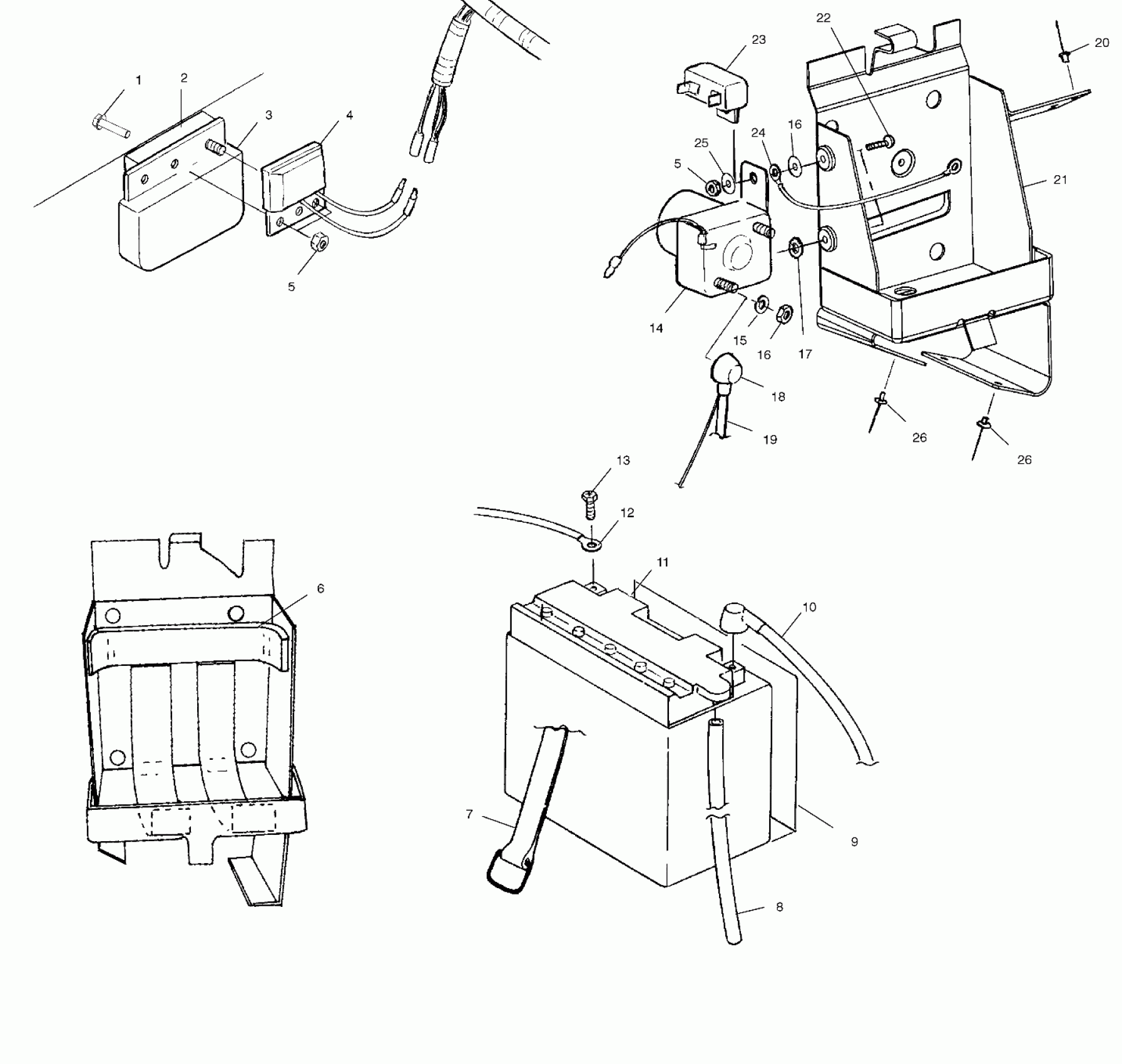

Polaris 600 TOURING - S00ST6ES BATTERY BOX - S00ST6ES (4954135413C002) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

REGULATOR-RECTIFIER,SNO,LR26

4010196

Unavailable

5

NUT(10)

7541925

$1.49

5

NUT(10)

7541925

$1.49

6

PAD-BATTERY

5810290

$7.27

7

STRAP ASM,BATT.HOLD.

2450020

$29.03

8

TUBE,BATT.VENT,400 MM

5433681

Unavailable

9

TAPE,FOIL W/BACK.3MIL 6"W. [No Longer Available]

8360018

Unavailable

10

CABLE ASM,SOLENOID

2460393

$36.41

11

Battery

4140006

$99.99

12

CABLE,11",BATT.,BLK.

4010114

Unavailable

13

BOLT,BATT,KIT(SHORT)

2200361

$3.99

14

Switch, Magnetic (See Footnote) (See Starting Motor Pg. C9, Ref. 18)

-------

Unavailable

15

Washer, Spring (See Footnote) (See Starting Motor Pg. C9, Ref. 19)

-------

Unavailable

16

Nut (See Footnote) (See Starting Motor Pg. C9, Ref. 17)

-------

Unavailable

16

Nut (See Footnote) (See Starting Motor Pg. C9, Ref. 17)

-------

Unavailable

17

WASHER(10)

7571602

$4.79

18

INSULATOR-CABLE

5410346

$6.39

19

CABLE-RED,25"

4010190

Unavailable

20

POP RIVET(50)

7621418

$1.49

21

BATTERY BOX,BLK

1012799-067

$82.39

22

SCREW(10)

7512027

$1.49

23

CIRCUIT BREAKER

2434008

Unavailable

24

WIRE,JUMPER,SOL/BATT,8.5"

4010108

Unavailable

25

WASHER, FLAT(10)

7558201

$5.79

26

RIVET, BLIND(50)

7621467

$1.49

26

RIVET, BLIND(50)

7621467

$1.49
