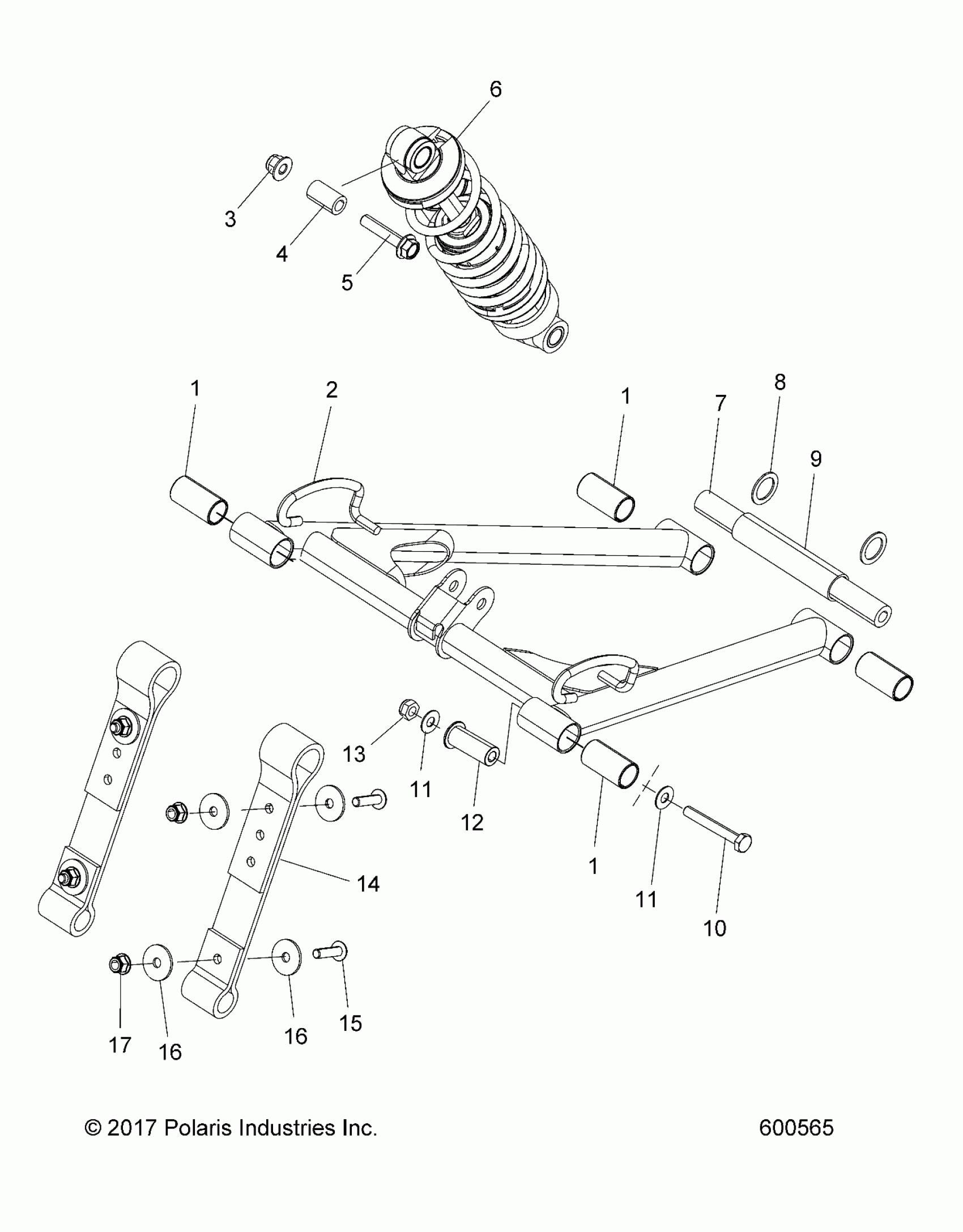

Polaris 600 SWITCHBACK XCR ALL OPTIONS (R01) - S21DDL6PS SUSPENSION, TORQUE ARM, FRONT - S21DDL6PS ALL OPTIONS (600565) Diagram

#

Description
Price

1

BUSHING-PIVOT

5438875

$11.99

1

BUSHING-PIVOT

5438875

$11.99

1

BUSHING-PIVOT

5438875

$11.99

2

ASM., ARM, TORQUE, FRONT, BLACK [INCL. 1]

1543703-329

$377.60

3

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

4

BUSHING

5137360

$3.99

5

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

6

SHOCK, FTA [SEE PAGE- SUSPENSION, SHOCK, FRONT TRACK]

-------

Unavailable

7

SHAFT-FTA LWT LOWER

5142500

$28.32

8

WASHER-30MM ODX 21MM ID X 1.5

7556483

$3.99

9

SPACER-FTA

5450572

$6.39

10

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

12

SHAFT, PIVOT

5138648

$14.21

13

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

14

STRAP-LIMITER

5414733

$24.27

15

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

16

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

16

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
