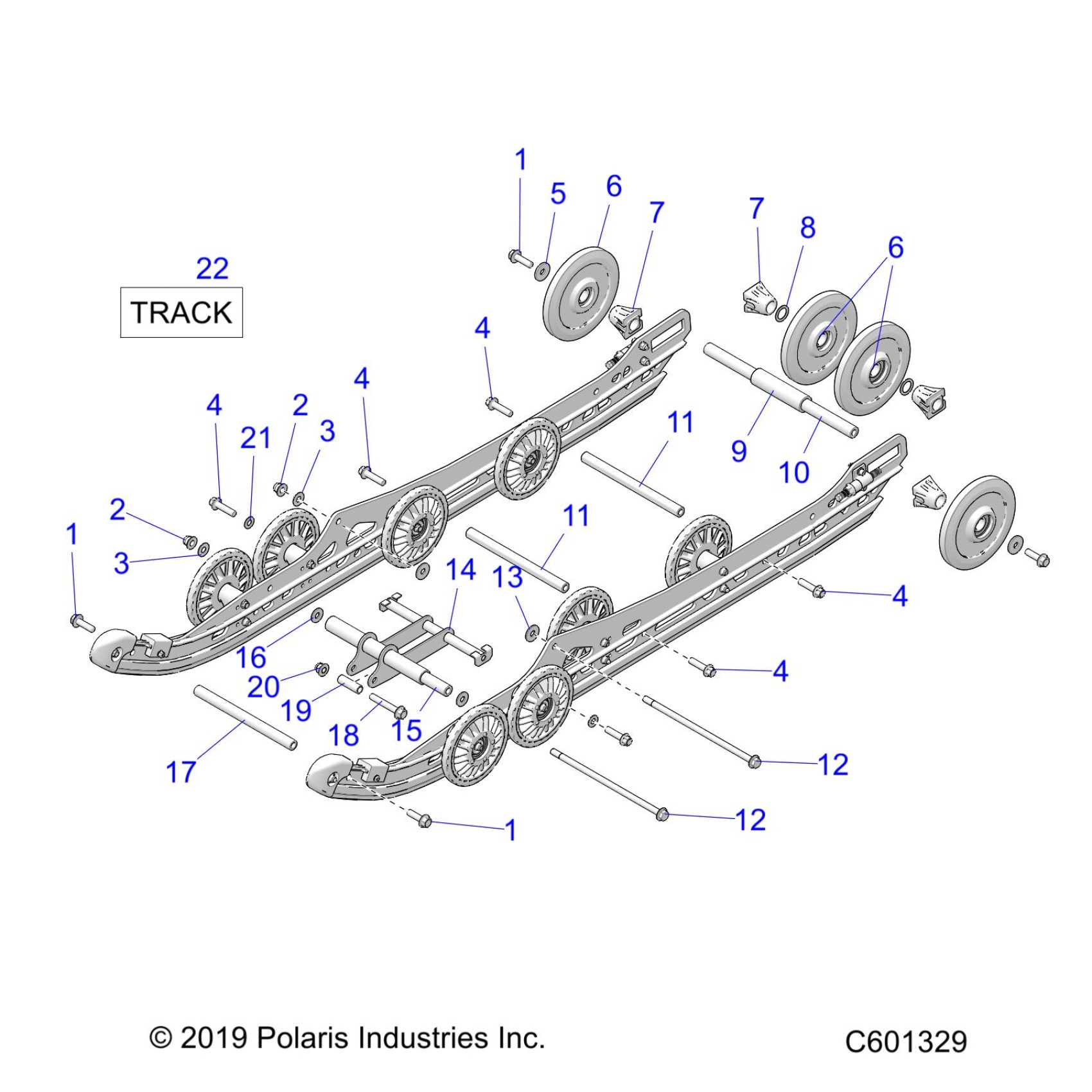

Polaris 600 SWITCHBACK XCR ALL OPTIONS (R01) - S21DDL6PS SUSPENSION, REAR and TRACK - S21DDL6PS ALL OPTIONS (600564) Diagram

#

Description
Price

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

2

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

2

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

5

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

6

BEARING [1 PER WHEEL]

3514384

$19.84

6

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

6

ASM-WHEEL 6.38 OD PLAIN,RACE

1590426

$64.75

6

BEARING [1 PER WHEEL]

3514384

$19.84

6

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

6

ASM-WHEEL 6.38 OD PLAIN,RACE

1590426

$64.75

7

SPACER-IDLER

5432535

$11.99

7

SPACER-IDLER

5432535

$11.99

8

BUSHING

7555918

$1.59

9

SPACER-IDLER, CENTER

5333283

$19.99

10

SHAFT, IDLER

5136745

$38.71

11

SHAFT

5139172

$29.03

11

SHAFT

5139172

$29.03

12

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

12

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

13

WSHR-10.4X28.58X2.4 ZOD

7556563

$3.19

14

SHOCK MOUNT, METRIC, E-COAT

1543700-329

$137.76

15

SHAFT-H BRKT, CC AL

5140492

$43.56

16

WASHER

7556559

$3.19

17

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$33.87

18

SCREW-M10x65 HXFL

7518960

$3.19

19

SHAFT-SHOCK

5335719

$13.75

20

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

21

WASHER

7556153

$1.99

22

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

22

CLIP-TRACK, FLAT

5251273

Unavailable

22

TRACK, 1.75"x136 INCH BACKCOUNTRY [SNOW CHECK SELECT]

5414378

$915.99

22

TRACK,1.352"x136 INCH COBRA [SNOW CHECK SELECT]

5413655

$846.99

22

TRACK-1.25"X136 INCH ICE RIPPER [SNOW CHECK SELECT]

5417024

$835.99
