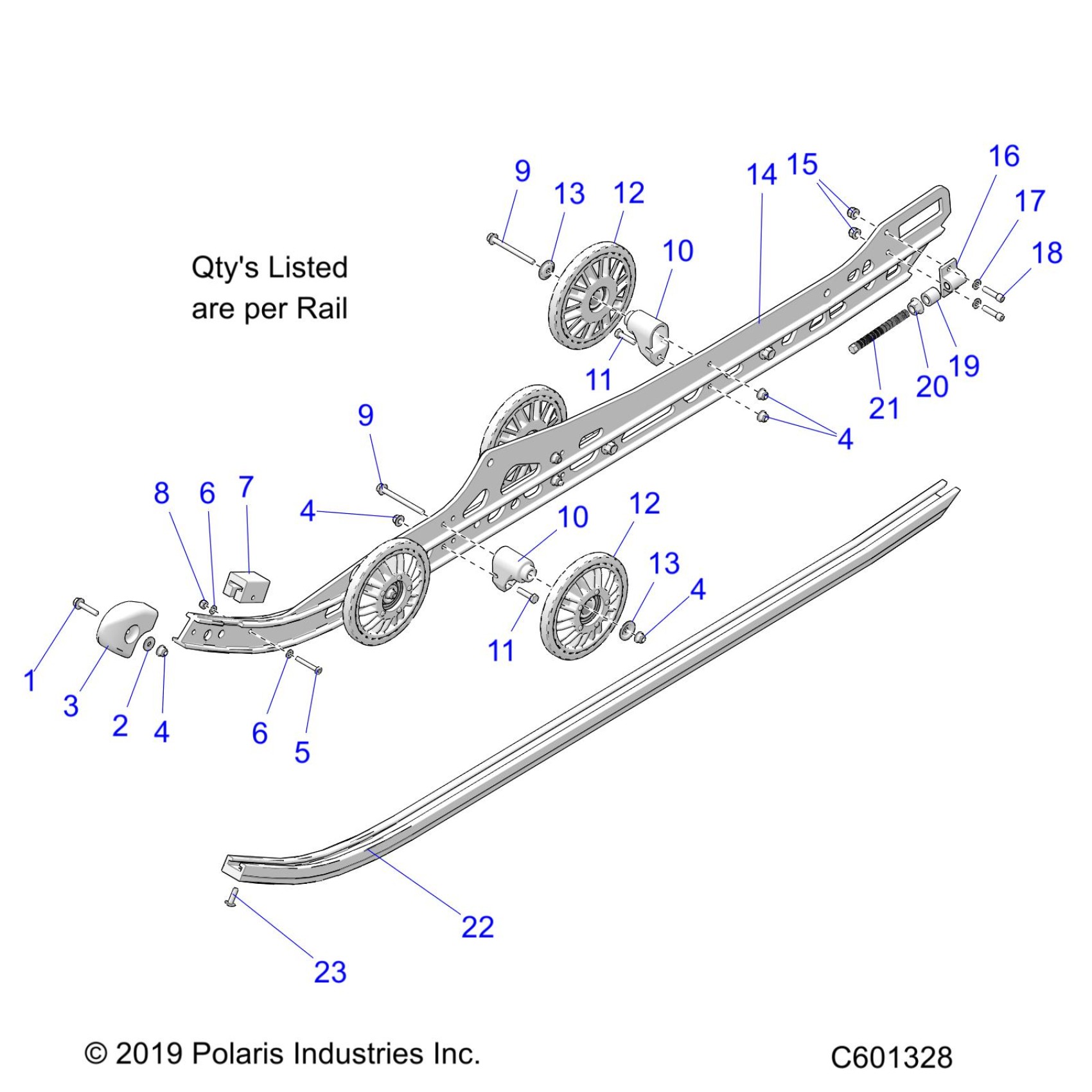

Polaris 600 SWITCHBACK XCR ALL OPTIONS (R01) - S21DDL6PS SUSPENSION, RAIL ASM. - S21DDL6PS ALL OPTIONS (601328) Diagram

#

Description
Price

1

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$2.39

2

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

3

CAP, RAIL TIP

5438374

$20.22

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

5

SCREW-#10-24X1.5,TRX/PN MC-Y

7510504

$6.76

6

Washer

7555783

$3.99

6

Washer

7555783

$3.99

7

BUMPER, JOUNCE, FRONT

5521499

$8.89

8

NUT-NYLOC 10-24 Y

7541925

$1.49

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

10

BLOCK, WHEEL MOUNT

5632808

$24.27

10

BLOCK, WHEEL MOUNT

5632808

$24.27

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

ASM-WHEEL SPOKED 5.62

1590632

$38.39

12

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

12

RING-RETAINING

7710444

$8.79

12

ASM-WHEEL SPOKED 5.62

1590632

$38.39

12

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

12

RING-RETAINING

7710444

$8.79

13

WASHER, OFFSET

7556799

$3.19

13

WASHER, OFFSET

7556799

$3.19

14

ASM-RAIL PROG136 CC BSC LH BLK [COLOR OPTION][INCL. 15-18]

1543847-067

$769.99

14

ASM-RAIL PROG136 CC BSC RH BLK [COLOR OPTION][INCL. 15-18]

1543848-067

$769.99

14

ASM-RAIL PROG136 CC BSC LH RED [COLOR OPTION][INCL. 15-18]

1543847-293

$689.99

14

ASM-RAIL PROG136 CC BSC RH RED [COLOR OPTION][INCL. 15-18]

1543848-293

$689.99

14

ASM-RAIL PRG136CC BSC LH PBLUE [COLOR OPTION][INCL. 15-18]

1543847-751

$689.99

14

ASM-RAIL PRG136CC BSC RH PBLUE [COLOR OPTION][INCL. 15-18]

1543848-751

$689.99

15

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

16

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

17

SCR-1/4-20X1 SOC CP-Y

7515102

$4.79

18

WASHER-.5X.262X.06(16 GA)-Y

7555827

$3.99

19

SPACER-17.46 OD X 10.5 ID

5137152

$3.19

20

NUT, HEX FLANGED

7547017

$5.59

21

SCR-HX-M10X1.5X90,8.8,ZOD

7520854

$12.99

22

HI-FAX,.45/74",SERVICE,BLK

5521633-070

$40.46

23

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19
