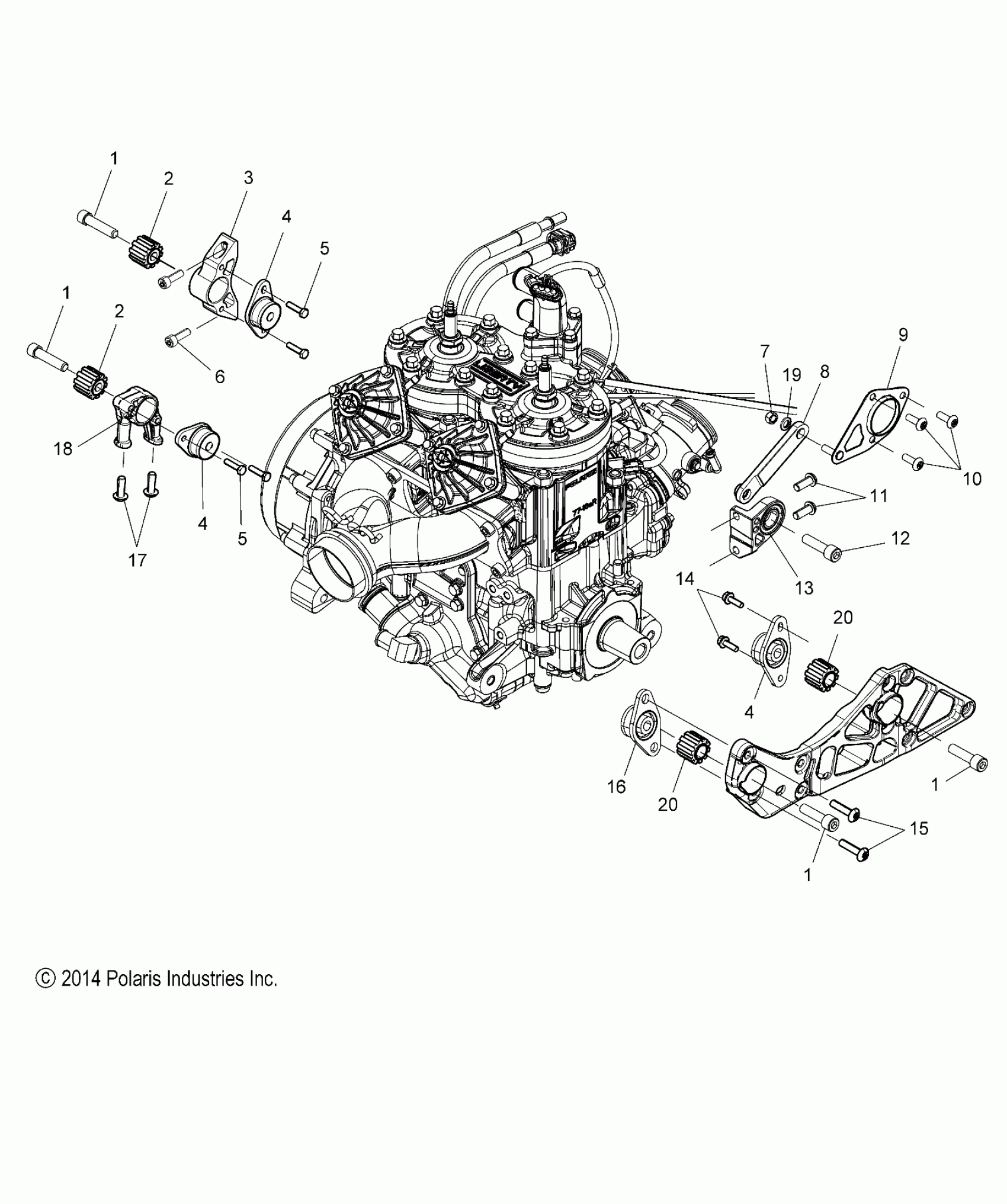

Polaris 600 SWITCHBACK XCR ALL OPTIONS (R01) - S21DDL6PS ENGINE, MOUNTING & LONG BLOCK - S21DDL6PS ALL OPTIONS (49SNOWENGINEMOUNT156PROS) Diagram

ENGINE, LONG BLOCK, 600 AXYS

2206134

$5,599.99

SCR-SH-M10X1.5X50 12.9 ZFK L

7519334

$4.79

SCR-SH-M10X1.5X50 12.9 ZFK L

7519334

$4.79

SCR-SH-M10X1.5X50 12.9 ZFK L

7519334

$4.79

SCR-SH-M10X1.5X50 12.9 ZFK L

7519334

$4.79

MOUNT, ENGINE INSERT RAD, MAG

3023291

$28.32

MOUNT, ENGINE INSERT RAD, MAG

3023291

$28.32

MOUNT, ENGINE, REAR, MAG

5138294

$59.99

MOUNT, ENGINE

3023293

$40.46

MOUNT, ENGINE

3023293

$40.46

MOUNT, ENGINE

3023293

$40.46

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

SCR-M8X1.25X25 8.8 SH ZOD P30

7519010

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

ASM., LINK, TORQUE, FIXED

1019180

$67.76

ASM., BEARING FLANGE, JACKSHAFT

1020378

$15.99

SCR-TXTH-M8X1.25X15 8.8 ZODP30

7520311

$3.99

SCR-TXBH-M8X1.25X20 TX W/PATCH

7519648

$3.99

SCR-SH-M10X1.5X25 ZOD

7519119

$3.19

LIMITER, TORQUE, ENGINE

3022281

$53.24

SCR-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$7.19

MOUNT, ENGINE, PTO, FRONT

3023292

$44.51

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

MOUNT, ENGINE, FRONT BASE

5139042

$44.51

Washer

7556216

$4.79

MOUNT, ENGINE INSERT RAD, PTO

3023290

$28.32

MOUNT, ENGINE INSERT RAD, PTO

3023290

$28.32
