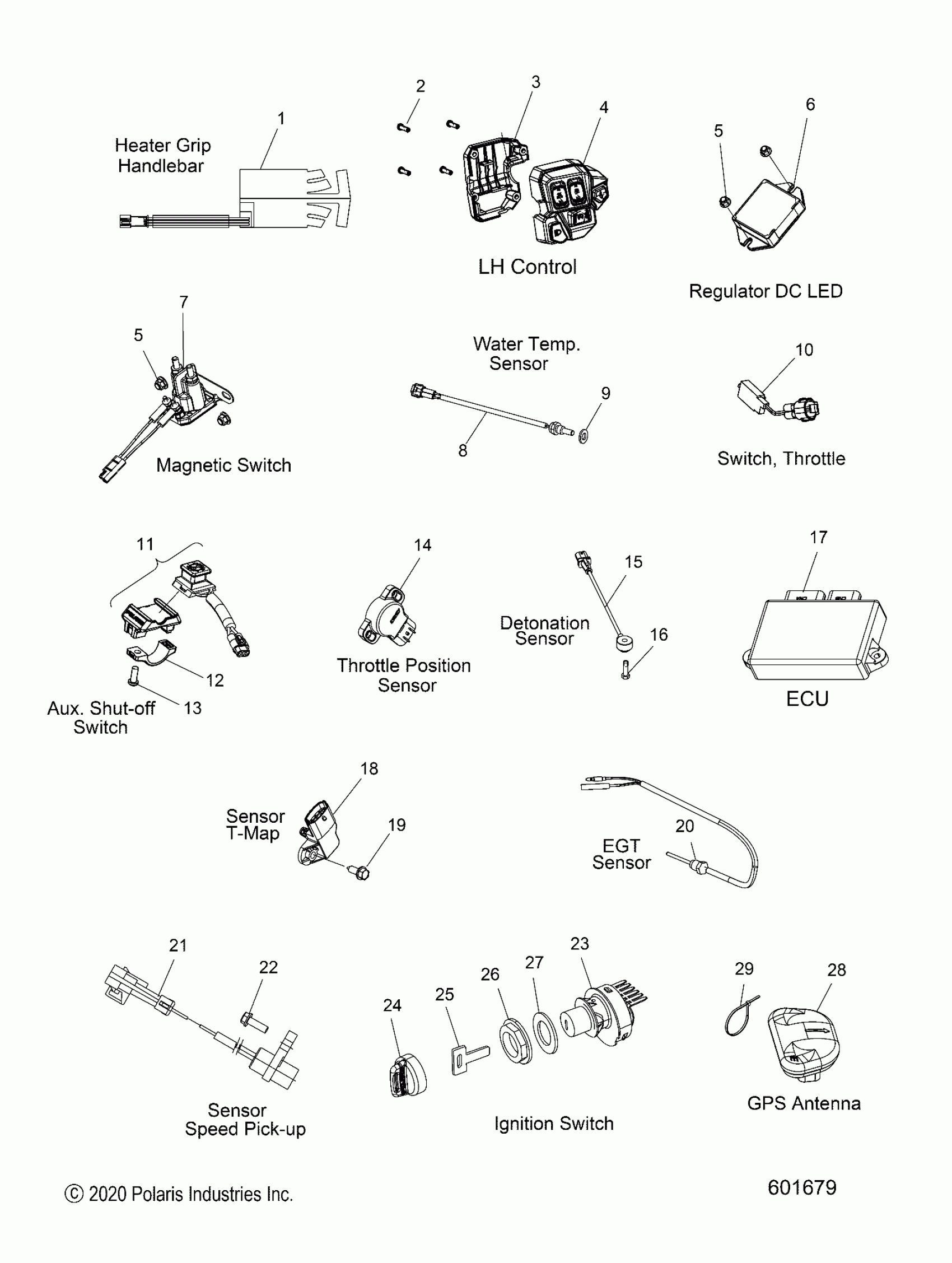

Polaris 600 SWITCHBACK XCR ALL OPTIONS (R01) - S21DDL6PS ELECTRICAL, SWITCHES, SENSORS and COMPONENTS - S21DDL6PS ALL OPTIONS (601679) Diagram

GRIP, HEATER, LO/MED/HI, LH

2413778

$54.99

GRIP, HEATER, LO/MED/HI, RH

2413779

$54.99

SCR-#8X3/4-HI/LO-PN-T20,TRX-M

7518227

$3.99

COVER, CONTROL, LH

5450542

$13.75

ASM., LH CONTROL

2010409

$199.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

REGULATOR, DC LED

4015642

$329.99

SOLENOID-STARTER,SEALED

4014655

$49.99

SENSOR, WATER TEMP

4012115

$64.99

WASHER, COPPER

7556357

$3.99

SWITCH-THROTTLE

4019110

$99.99

ASM., SWITCH., AUX. SHUTOFF [INCL. SWITCH AND UPPER MOUNT]

2010426

$119.99

SWITCH., AUX. SHUTOFF [SWITCH ONLY]

4015321

$94.99

MNT-AUX SHUT-OFF LOWER

5439575

$24.27

SCR-#10X1/2-HI/LO-TRX-Y

7512076

$1.49

SENSOR, THROTTLE POSITION

3131751

$259.03

SENSOR, DETONATION

2410369

$76.89

SCR-M8X1.25X30,HX/FL-YD

7517262

$5.59

ECU, DC/SDI LEAS, 32MHZ2T

4014920

$834.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCR-#14X1.0 LG,HI/LO/TAPER-M

7512098

$1.59

SENSOR, EGT

4013133

$264.99

SENSOR, SPEED PICKUP, LG

2412968

$116.17

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19

SWITCH, KEY, 3 POSITION [INCL. 23-25]

4012165

$104.24

KEY SWITCH KEY COVER

5433534

$12.35

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]

4010278

Unavailable

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

WASHER, NYLON

7556327

$3.19

GPS-ANTENNA

4014811

$387.19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
