- 600 SWITCHBACK PRO-S SC SELECT ALL OPTIONS (R03) - S19DDH6PS
SUSPENSION, SHOCK, IFS (7045064) - S19DDH6P SNOW CHECK (600870)

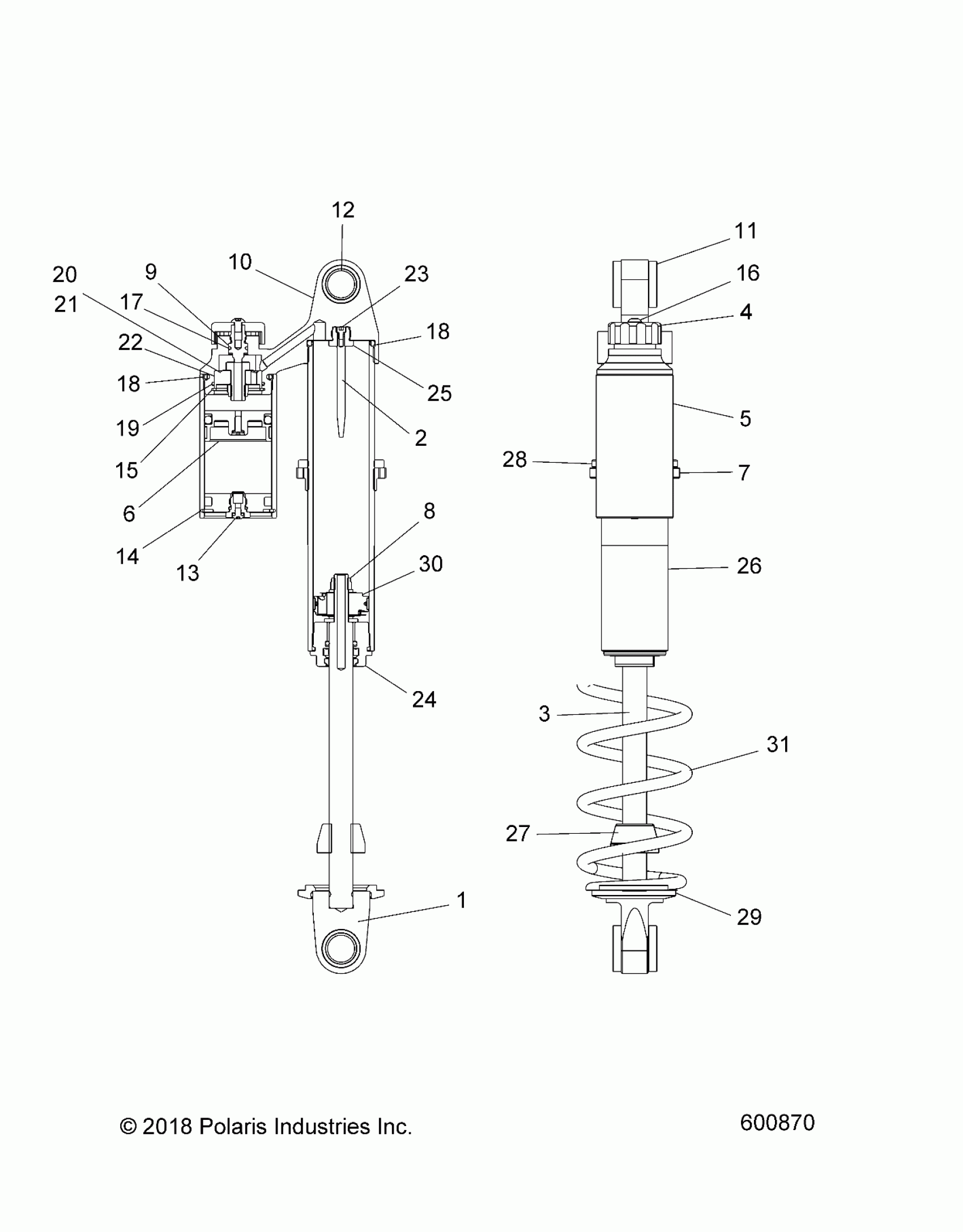

Polaris 600 SWITCHBACK PRO-S SC SELECT ALL OPTIONS (R03) - S19DDH6PS SUSPENSION, SHOCK, IFS (7045064) - S19DDH6P SNOW CHECK (600870) Diagram
#
Description
Price
-
SHOCK, IFS, WE NEEDLE, PB
7045064
$643.71
1
LOOP, SHAFT
1800471
$125.46
2
NEEDLE, 2.25
1800300
$24.27
3
NEEDLE SHAFT, IFS 8.70L
1800946
$222.68
4
KNOB, CLICKER
1800418
$89.03
5
BODY, RESERVOIR, 2", 3.75L
1800419
$93.08
6
ASM-PISTON, IFP
1800739
$44.99
7
SPRING ADJUSTER
1800724
$43.56
8
CRIMP NUT, 3/8"
1800031
$3.99
9
STUD, CLICKER
1800352
$31.99
10
LOOP, PIGGY BACK
1800461
$439.99
11
BUSHING
1800406
$5.65
12
SLEEVE, 1.15L
1800405
$28.32
13
END CAP, RESERVOIR, 1.75
1800740
$94.99
14
SNAP RING, 1.75 ID
1800159
$5.59
15
SNAP RING, 1.25 ID
1800359
$3.86
16
SCREW, BTN HD, 10/32
1800357
$3.19
17
O-RING
1800501
$6.39
18
O-RING BODY LOOP
1800030
$2.02
18
O-RING BODY LOOP
1800030
$2.02
19
O-RING
1800358
$1.49
20
BALL, DETENT
1800127
$6.39
21
SPRING-COMP .025X.3, 40.5#
1800128
$10.39
22
ASM-PIGGY BACK CLICKER PISTON
1800750
$79.99
23
SCREW SCHD
1800074
Unavailable
24
SEAL HEAD, .625 SHAFT
1800414
$153.79
26
BODY, SHOCK, IFS
1800765
$154.99
27
BUMPER, JOUNCE
1800462
$32.37
28
NUT, JAM
1800465
$66.65
29
CLIP, SPRING
1800116
$60.70
30
PISTON, .052 BLEED
1800853
$99.99
31
SPRG-COMP .306X11.0 80# MBLK
7043732-458
$48.40
31
SPRG-COMP .306X11.0 80# MTGOLD [FOUNDERS EDITION ONLY]
7043732-703
$48.40
