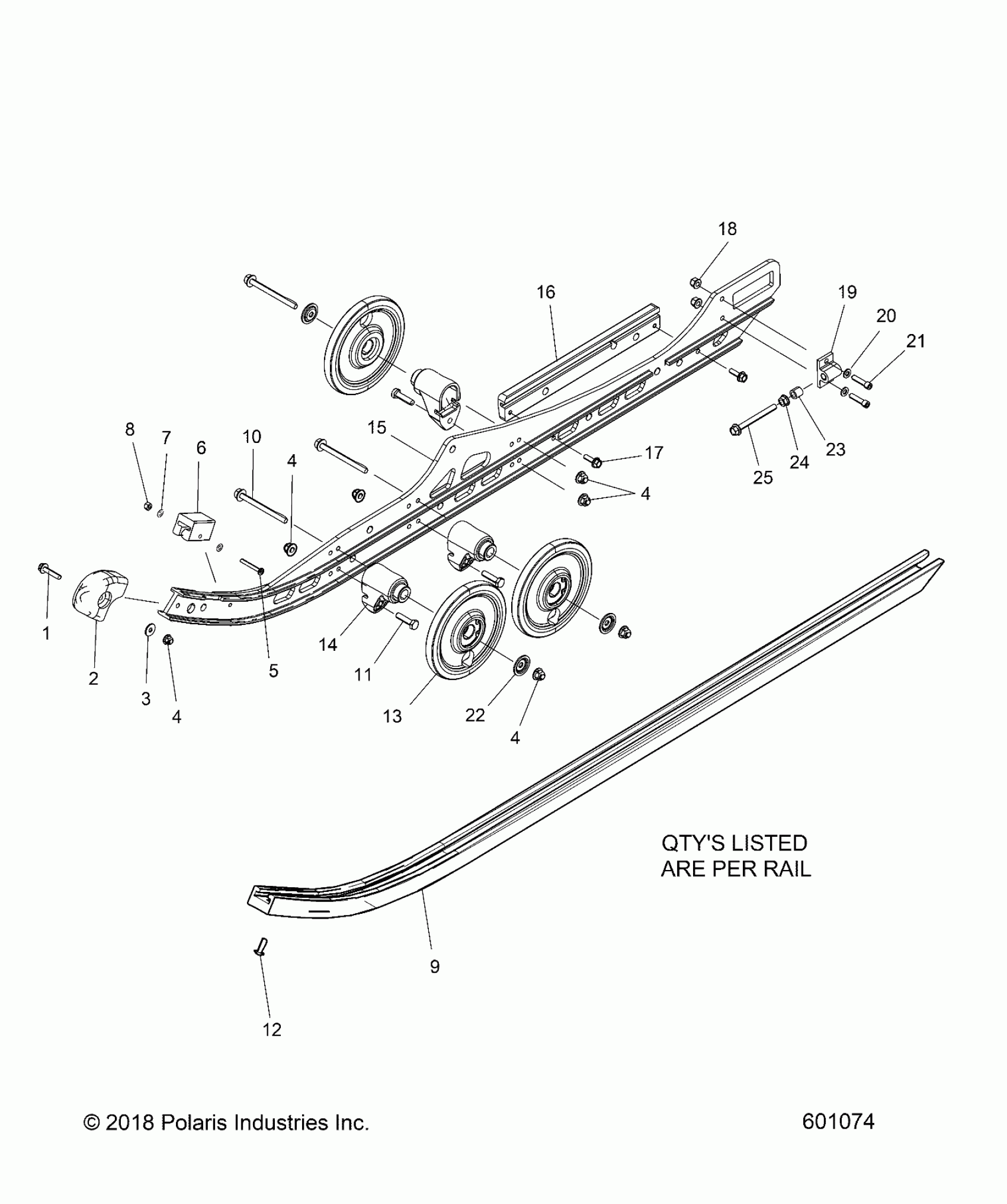

Polaris 600 RUSH XCR SC SELECT ALL OPTIONS (R02) - S19DCL6PS/6PEM SUSPENSION, RAIL ASM. - S19DCL6PS/6PEM (601074) Diagram

#

Description
Price

1

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$2.39

2

CAP-RAIL TIP,UHMW

5438374

$20.22

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

5

SCREW-#10-24X1.5,TRX/PN MC-Y

7510504

$6.76

6

BUMPER, JOUNCE, FRONT

5521499

$8.89

7

WSHR-FL #10 .203X.438X.032-Y

7555783

$3.99

8

NUT-NYLOC 10-24 Y

7541925

$1.49

9

HI-FAX,.45/74",SERVICE,BLK

5521633-070

$40.46

10

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

13

ASM., WHEEL, PLAIN

1590457

$35.99

13

BEARING, NEEDLE [1 PER WHEEL]

3514384

$19.84

13

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

14

BLOCK, WHEEL MOUNT

5632808

$24.27

15

ASM., RAIL, LH, BASIC 121, BLACK [INCL. 16-21]

1543711-067

$379.99

15

ASM., RAIL, LH, BASIC 121, RED [INCL. 16-21]

1543711-293

$379.99

15

ASM., RAIL, LH, BASIC 121, WHITE [INCL. 16-21]

1543711-599

$379.99

15

ASM., RAIL, LH, BASIC 121, LIME SQZE [INCL. 16-21]

1543711-630

$379.99

15

ASM., RAIL, RH, BASIC 121, BLACK [INCL. 16-21]

1543712-067

$379.99

15

ASM., RAIL, RH, BASIC 121, RED [INCL. 16-21]

1543712-293

$379.99

15

ASM., RAIL, RH, BASIC 121, WHITE [INCL. 16-21]

1543712-599

$379.99

15

ASM., RAIL, RH, BASIC 121, LIME SQZE [INCL. 16-21]

1543712-630

$379.99

16

PLATE-RAIL REINF CC LH

5140489

$29.03

16

PLATE-RAIL REINF CC RH

5140490

$29.03

17

SCREW, HXFLG, M6x20

7516822

$2.39

18

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

19

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

20

WASHER-.5X.262X.06(16 GA)-Y

7555827

$3.99

21

SCR-1/4-20X1 SOC CP-Y

7515102

$4.79

22

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

23

SPACER-17.46 OD X 10.5 ID

5137152

$3.19

24

NUT-HXFL-M10X1.50 10 ZPC

7547017

$5.59

25

SCR-HXFL-M10X1.5X100 8.8 ZOD

7519167

$11.99
