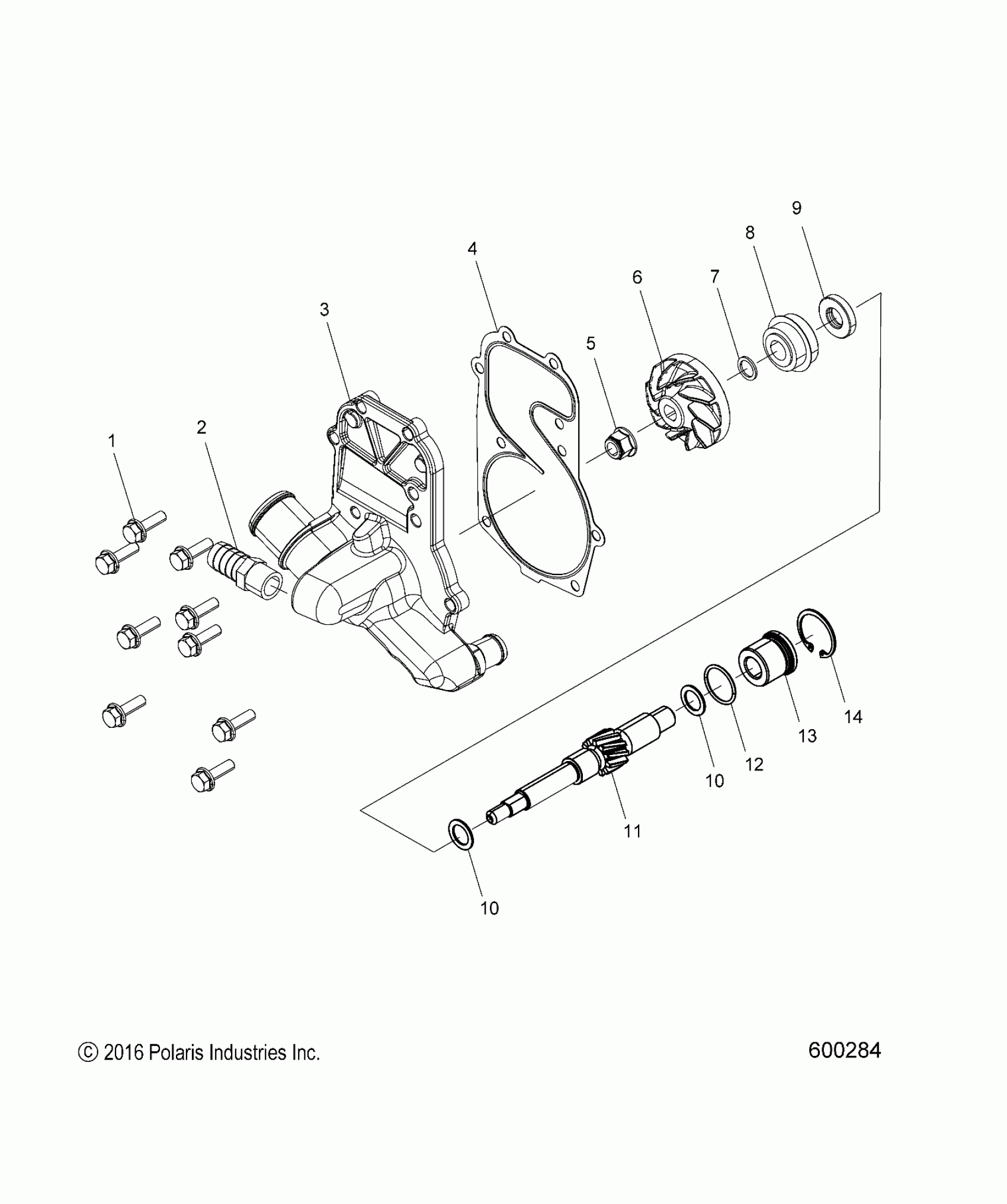

Polaris 600 RUSH XCR SC SELECT ALL OPTIONS (R02) - S19DCL6PS/6PEM ENGINE, WATER PUMP - S19DCL6PS/6PEM (600284) Diagram

#

Description
Price

1

SCR-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

2

FITTING-3/8NPT,5/8ID BL2020

7052657

$23.99

3

COVER, WATER PUMP 600, INT FC FITTING

5140301

$68.79

4

GASKET, WATER PUMP COVER

5811601

$20.22

5

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

6

IMPELLER

5436648

$15.99

7

WASHER, FLAT

7556584

$3.19

8

SEAL

3610067

$44.51

9

SEAL

5411197

$24.27

10

WASHER, THRUST

7555977

$7.19

10

WASHER, THRUST

7555977

$7.19

11

SHAFT, GEAR, WP DRIVE

5138488

$34.99

12

O-RING

5412942

$1.49

13

BEARING, PUMP SHAFT, BLIND

5138487

$34.99

14

RING, RETAINING

7710718

$2.99
