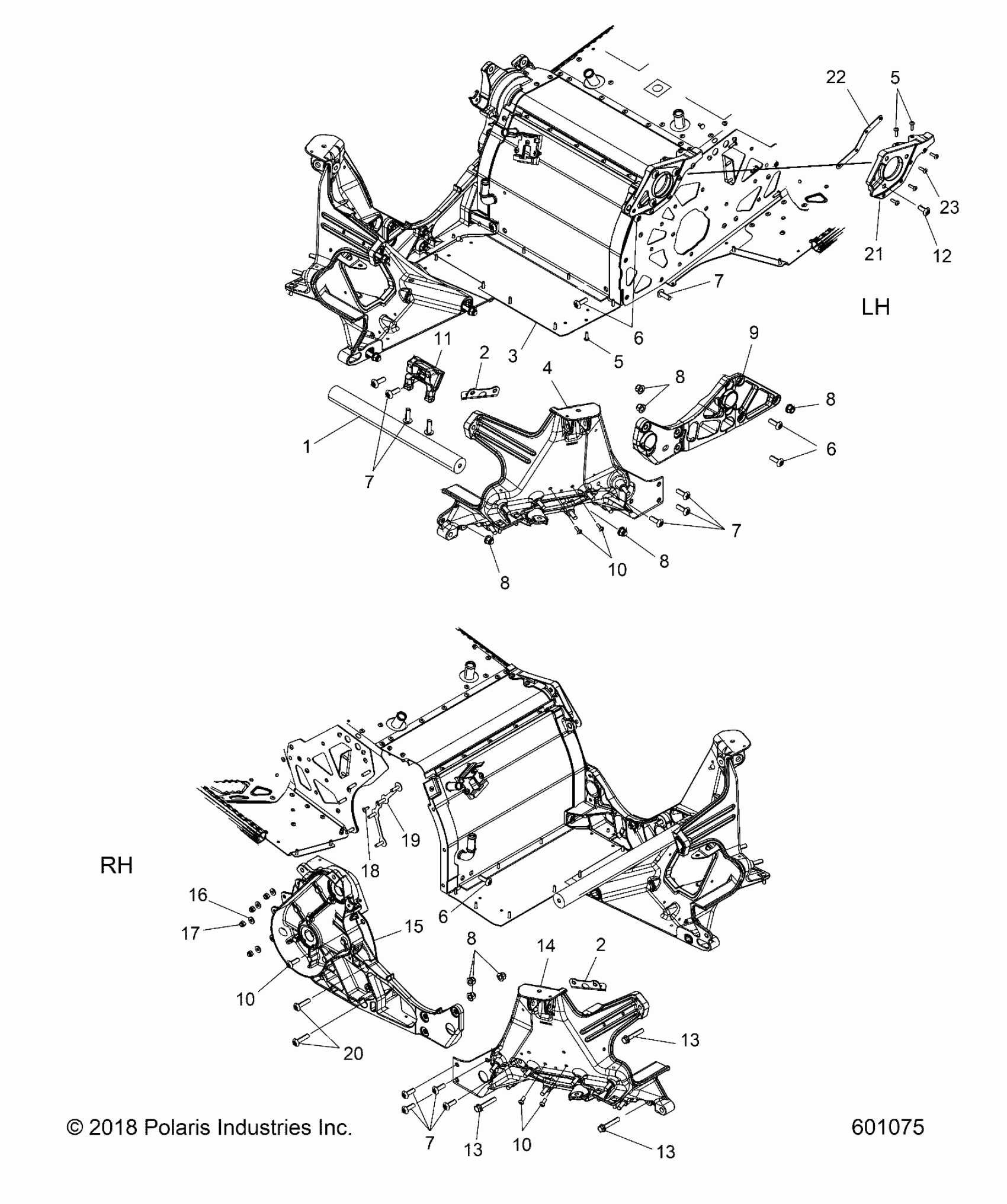

Polaris 600 RUSH XCR SC SELECT ALL OPTIONS (R02) - S19DCL6PS/6PEM CHASSIS, BULKHEAD ASM. - S19DCL6PS/6PEM (601075) Diagram

#

Description
Price

-

KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]

2204171

$294.99

-

KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]

2204400

$74.99

-

KIT, LORD, MIX NOZZLES, 12 PIECE

2204172

$4.99

1

TUBE-CROSSOVER, EXTRUDED

5140781

$106.49

2

ASM., BRKT., IDLER, TOP

1019666

$28.32

2

ASM., BRKT., IDLER, TOP

1019666

$28.32

3

FLOOR, BULKHEAD

5256849

$29.03

4

STUD

7519204

$19.99

4

ASM., CLIP W/STUD, LH [INCL. STUDS][REQUIRES ADHESIVE]

1019181

$329.99

5

RIVET-3/16-.090-.290

7661637

$1.49

6

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

6

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

6

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

7

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

7

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

7

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

7

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. SLEEVE]

1019183

$139.99

10

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

10

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

10

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

11

MOUNT, STEERING, LOWER

5138449

$16.99

12

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$6.39

13

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

13

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

13

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

14

STUD

7519204

$19.99

14

ASM., CLIP W/STUD, RH [INCL. STUDS][REQUIRES ADHESIVE]

1019182

$309.99

15

ASM-CHAINCASE INTERMD [REQUIRES ADHESIVE][INCL. BRNGS., SEALS]

1333119

$289.99

16

WASHER

7556588

$2.39

17

NUT-HEX-M6X1.0 8 ZOD NYL

7547505

$2.39

18

RIVET

7661973

$1.49

19

ASM-STUD PLATE M6X4

1020927

$34.99

20

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$7.19

21

MOUNT-JACKSHAFT BRG.

5139244

Unavailable

22

ASM-NUT PLATE JACKSHFT TP/CO

1024312

$19.99

23

SCR-M5X0.8X12 10.9 TX/BH ZPC

7520967

$3.99
