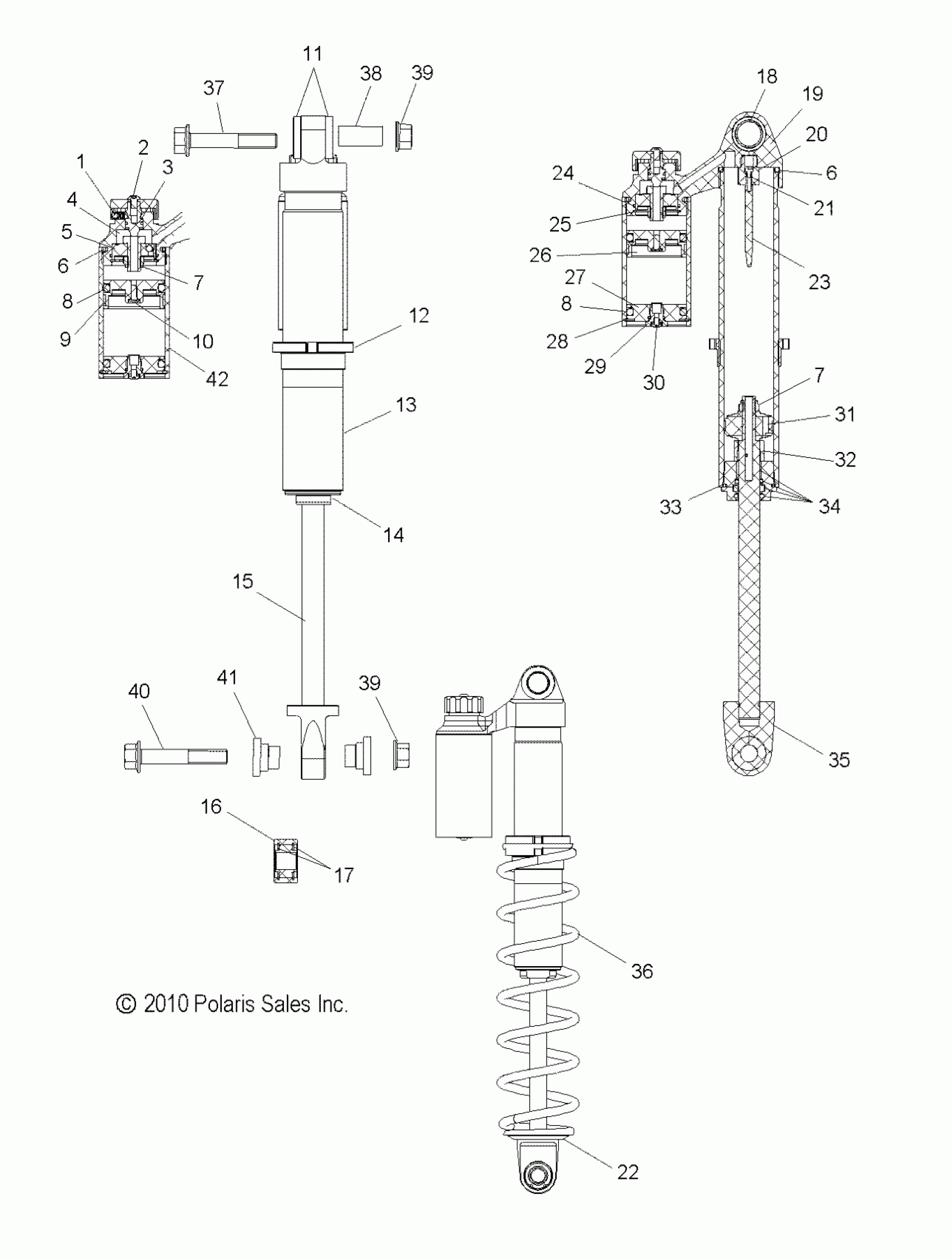

Polaris 600 RUSH PRO-R/ES/RETRO ALL OPTIONS - S11BP6/BE6 SUSPENSION, SHOCK, IFS - S11BP6/BE6 ALL OPTIONS (49SNOWSHOCKIFS7043650) Diagram

#

Description
Price

-

Shock, IFS

7043650

$740.49

1

BALL, D-TENT

1800127

$6.46

1

SPRING-COMP .025X.3, 40.5#

1800128

$11.32

2

SCREW, BUTTON HEAD

1800357

$2.19

3

O-Ring, Stud

1800215

$7.68

3

STUD, CLICKER

1800352

$39.99

4

BOLT, CLICKER

1800354

$15.99

5

PISTON, CLICKER

1800353

$114.99

6

O-RING BODY LOOP

1800030

$1.37

6

O-RING BODY LOOP

1800030

$1.37

7

NUT, CRIMP

1800031

$2.74

7

NUT, CRIMP

1800031

$2.74

8

O-RING

1800184

$5.65

8

O-RING

1800184

$5.65

9

BAND, PISTON

1800185

$44.51

10

O-RING, BLEED SCREW

1800210

$1.60

10

SCREW, BLEED

1800043

$6.46

11

BUSHING

1800406

$5.65

12

RETAINER, SPRING

1800046

$36.41

13

BODY, IFS

1800425

Unavailable

14

ASM., SEAL HEAD

1800414

Unavailable

15

SHAFT, NEEDLE, IFS

1800423

$149.99

16

BEARING, END

1800040

$99.99

17

RING, SNAP, END BEARING

1800041

$8.08

18

SLEEVE

1800405

$32.37

19

LOOP, BODY

1800424

$439.99

20

BOLT, NEEDLE

1800302

$15.99

21

SCREW, BLEED W/O-RING

1800074

$3.97

22

RETAINER, SPRING SLOTTED

5630580

$24.99

23

NEEDLE

1800300

$24.27

24

O-RING, CLICKER HOUSING

1800358

$1.21

25

RING, SNAP, CLICKER

1800359

$3.86

26

PISTON, RESERVOIR

1800355

$99.99

27

CAP, END, RESERVOIR, BLACK

1800420

$24.74

28

RING, SNAP

1800159

$5.56

29

O-Ring, Stud

1800215

$7.68

29

VALVE, NEEDLE

1800329

$39.99

30

O-RING, BLEED SCREW

1800210

$1.60

30

SCREW, BUTTON HEAD

1800109

$3.17

31

BAND, WEAR

1800297

$39.99

31

PISTON, CONVEX

1800001

$133.56

32

SPACER, SHAFT

1800376

Unavailable

33

O-RING, BODY

1800027

$1.37

34

O-RING, SHAFT SEAL HEAD

1800037

$1.60

34

BUSHING, SHAFT

1800038

$12.70

34

WIPER, D-TYPE

1800322

$32.37

34

SEAL, U-CUP

1800323

$28.32

35

LOOP, SHAFT

1800422

$133.56

36

SPRING, COMPRESSION, 100# WHITE

7043460-133

$76.89

37

SCREW

7518941

$3.97

38

BUSHING

5137360

$3.97

39

NUT, NYLOK

7547423

$3.97

39

NUT, NYLOK

7547423

$3.97

40

SCREW

7518971

$6.35

41

SPACER

5136530

$4.76

42

BODY, RESERVOIR

1800419

$93.08
