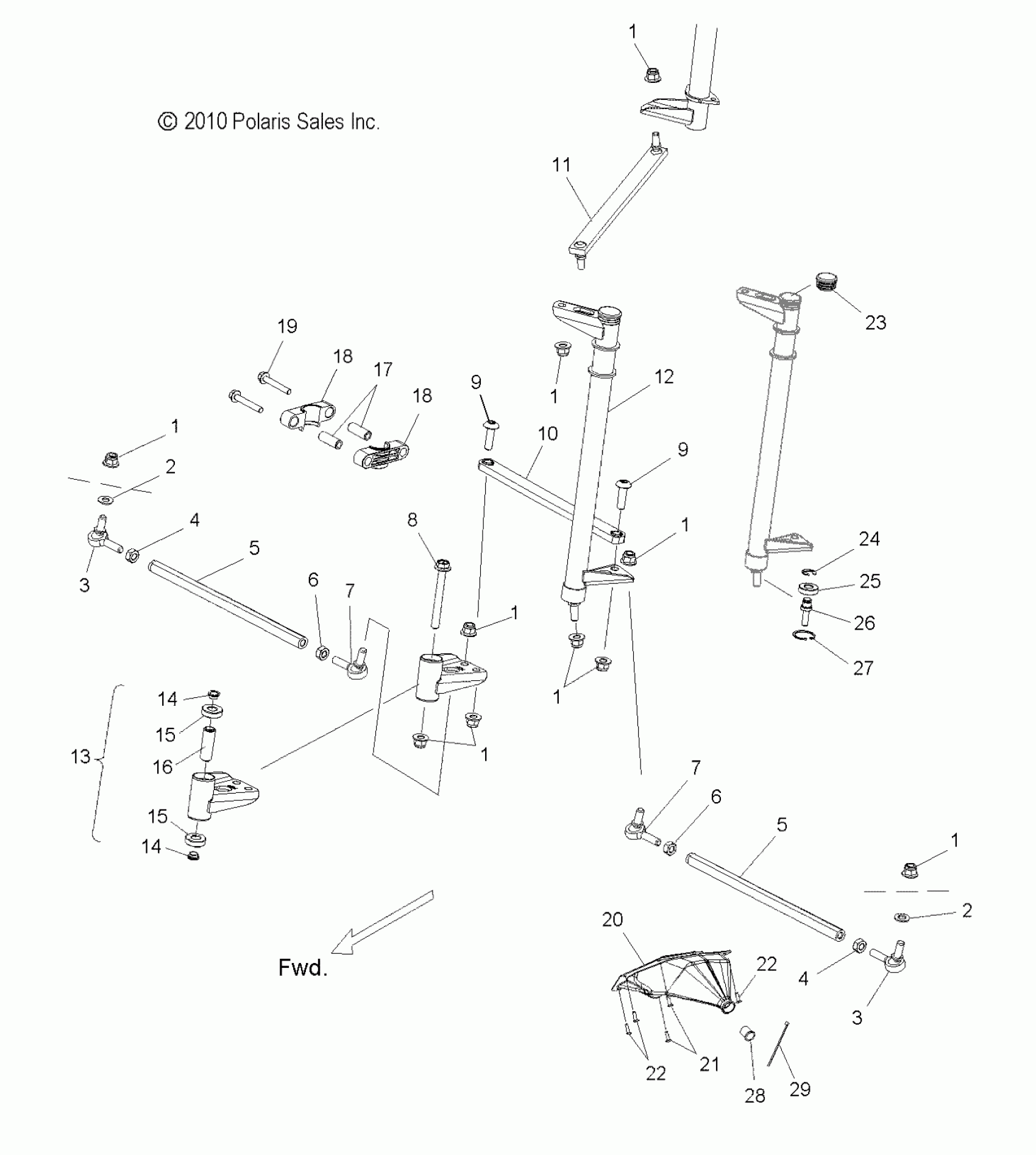

Polaris 600 RUSH PRO-R/ES/RETRO ALL OPTIONS - S11BP6/BE6 STEERING, LOWER - S11BP6/BE6 ALL OPTIONS (49SNOWSTEERINGLWR11RUSH) Diagram

#

Description
Price

1

NUT

7547423

$3.97

1

NUT

7547423

$3.97

1

NUT

7547423

$3.97

1

NUT

7547423

$3.97

1

NUT

7547423

$3.97

1

NUT

7547423

$3.97

1

NUT

7547423

$3.97

1

NUT

7547423

$3.97

2

Washer, Flat

7555806

$0.79

2

Washer, Flat

7555806

$0.79

3

ROD END-M10X26.5 75DEG RH

7061166

$56.65

3

ROD END-M10X26.5 75DEG RH

7061166

$56.65

4

NUT-M10X1.5 ZOD

7547430

$3.17

4

NUT-M10X1.5 ZOD

7547430

$3.17

5

TIE ROD

5335697

$27.49

5

TIE ROD

5335697

$27.49

6

NUT, LH

7547431

$3.17

6

NUT, LH

7547431

$3.17

7

ROD END-M10X23 75DEG LH

7061165

$56.65

7

ROD END-M10X23 75DEG LH

7061165

$56.65

8

SCREW

7519016

$6.35

9

SCREW

7519017

$7.14

9

SCREW

7519017

$7.14

10

LINK, FIXED

7061176

$84.98

11

ASM., DRAG LINK, FIXED

1823392

$93.08

12

ASM., PITMAN ARM [INCL. 23-27]

1823417

$150.06

13

ASM, IDLER ARM [INCL. 14-16]

1823686

Unavailable

14

BUSHING, REDUCER

5136662

$7.73

14

BUSHING, REDUCER

5136662

$7.73

15

Bearing, Ball

3514320

$15.87

15

Bearing, Ball

3514320

$15.87

16

SPACER, TUBE PITMAN/IDLER ARMS

5135452

$34.99

17

Spacer, Bushing

5137320

Unavailable

18

BUSHING, STEERING POST

5438492

$6.35

18

BUSHING, STEERING POST

5438492

$6.35

19

SCREW

7519242

$4.76

20

Asm., Boot, Tie Rod, RH

2634078

$49.99

20

Asm., Boot, Tie Rod, LH

2634077

$49.99

21

SCREW

7519092

$1.19

22

Rivet

7621457

$1.19

22

Rivet

7621457

$1.19

23

PLUG, TUBE

7081210

$3.97

24

Ring, Retaining

7710901

$8.08

25

Bearing, Ball

3514320

$15.87

26

STUD, SPACER

7519163

$39.99

27

RING-RET INT 1.125"

7710642

$2.38

28

Bushing, Torsion Bar

5438847

$11.90

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
