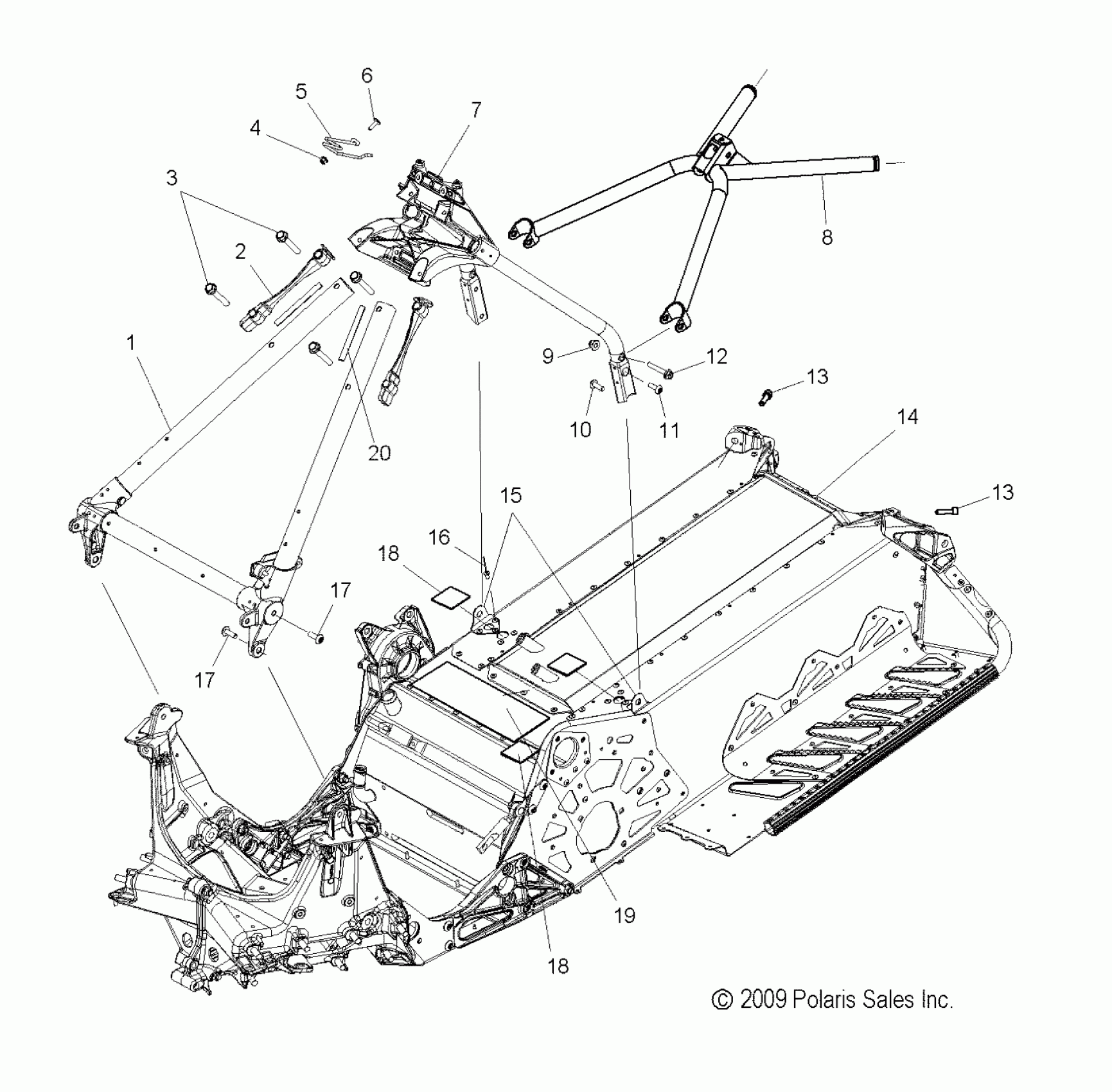

Polaris 600 RUSH PRO-R/ES/RETRO ALL OPTIONS - S11BP6/BE6 CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S11BP6/BE6 ALL OPTIONS (49SNOWCHASSISFRT211800PR) Diagram

Asm., Frame, Tubular, Front

1017422

Unavailable

SPACER, TUBE CAST

5632200

$16.99

SCREW

7519245

$3.97

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

Spring, Rope Guide

5335877

$21.27

BOLT

7518613

$3.97

Asm., Frame, Tubular, Rear

1017423

$1,589.99

X-Brace, Matte Black

1017977-458

$144.99

X-Brace, Indy Red [Retro]

1017977-293

$225.70

NUT

7547423

$3.97

SCREW

7518906

$3.17

SCREW

7519109

$1.59

SCREW

7518941

$3.97

SCREW

7519102

$4.39

SCREW

7519102

$4.39

Kit, Chassis, Matte Black [Also order 2204633, Kit, Engine Mount Bolt Upgrade and LH Engine strap 5137374 when replacing chassis]

2204466-1241

$1,408.99

Kit, Chassis, Indy Red [Retro][Also order 2204633, Kit, Engine Mount Bolt Upgrade and LH Engine Strap 5137374 when replacing Chassis]

2204466-1145

$1,408.99

BRACE, PAD, FRONT

5253558

$4.76

RIVET-3/16-.090-.290

7661637

$1.19

SCREW

7519243

$3.97

SCREW

7519243

$3.97

PAD, 5X5 CM

5813593

$4.03

PAD, 5X5 CM

5813593

$4.03

Pad, 10x40 cm

5813592

$5.71

BULB, SEAL

5521697-350

Unavailable
