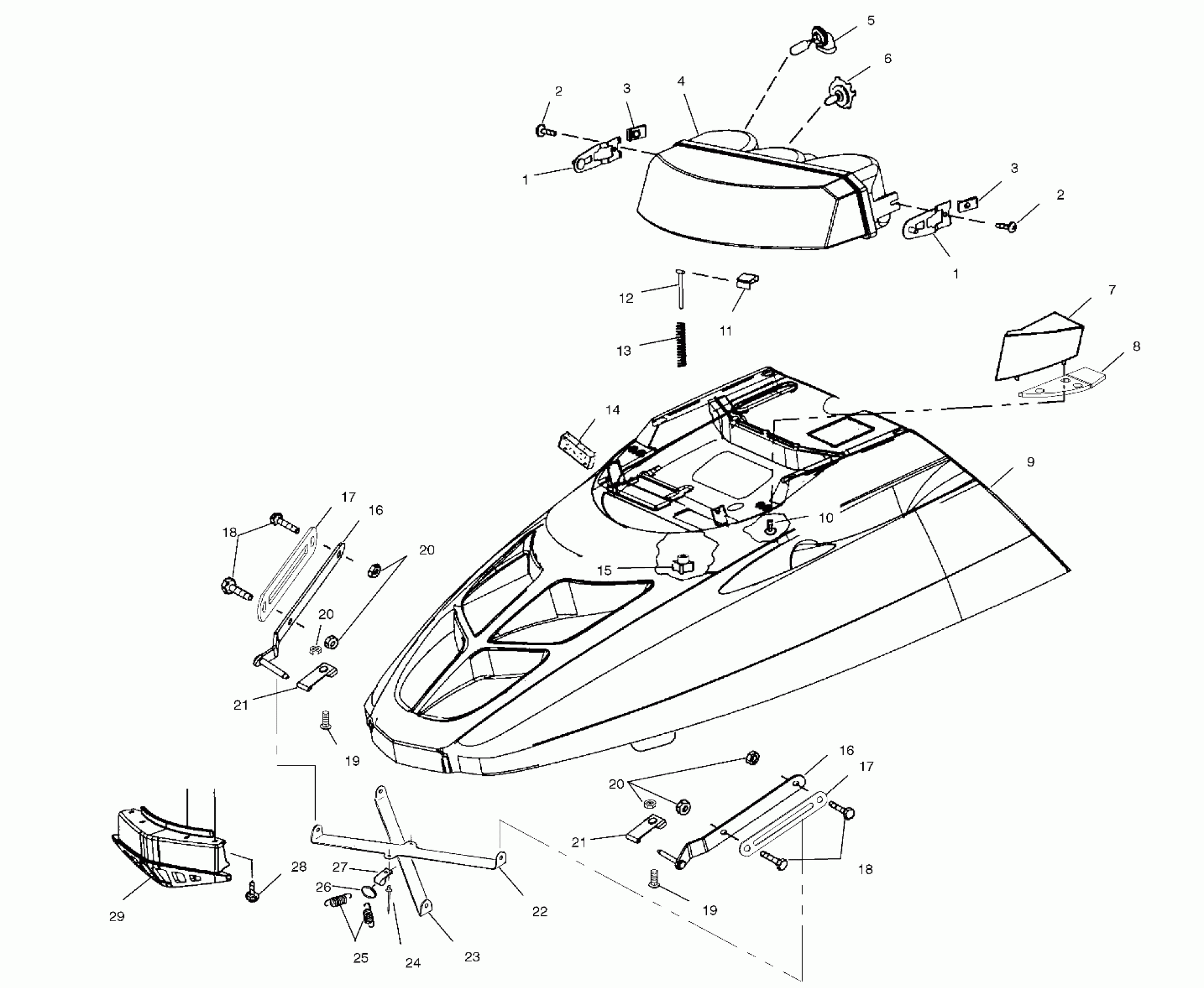

Polaris 600 RMK - S00SR6DS HOOD - S00SR6DS (4954125412a009) Diagram

#

Description
Price

1

MOUNT,WELD,H/L

1011944-067

$24.27

1

MOUNT,WELD,H/L

1011944-067

$24.27

2

BOLT(10)

7515107

Unavailable

2

BOLT(10)

7515107

Unavailable

3

NUT, SPEED(10)

7670057

$1.49

3

NUT, SPEED(10)

7670057

$1.49

4

ASM-HEADLAMP,THREE BULB (Incl. Bulbs)

2433016

$249.99

5

BULB-HEADLIGHT,50 WATT

4010253

$34.99

6

BULB,QUARTZ.H/L,INDY

2870448

$24.99

7

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

7

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

8

SEAL,REFLECTOR,SRP

5811907

Unavailable

9

ASM-HOOD,GEN 2,SVC,LCSRP,BLUE (Incl. Foam/Foil)

2632156-246

Unavailable

10

SCREW(10) Substituted by 7512048

7511953

Unavailable

11

FASTENER-U TYPE CLIP

7670040

$3.99

12

BOLT,TEE ADJUSTER,2.25

7517746

$24.99

13

SPRING,H/L.ADJ.

7041308

$3.19

14

FOAM,HEADLIGHT SEAL,W/PSA SRP

5811886

$7.43

15

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

16

HINGE,LH,UPPER

1012750

$48.56

16

HINGE,RH,UPPER

1012751

$43.99

16

HINGE,LH,UPPER

1012750

$48.56

16

HINGE,RH,UPPER

1012751

$43.99

17

PLATE-BOLT

5242948

$9.70

17

PLATE-BOLT

5242948

$9.70

18

BOLT(10) Substituted by 7512247

7515184

Unavailable

18

BOLT(10) Substituted by 7512247

7515184

Unavailable

19

BOLT,(10)

7515203

$3.99

19

BOLT,(10)

7515203

$3.99

20

NUT-LOCK(10)

7542122

$1.49

20

NUT-LOCK(10)

7542122

$1.49

20

NUT-LOCK(10)

7542122

$1.49

21

PLATE,HINGE,LOWER Substituted by 5244395

5242678

Unavailable

21

PLATE,HINGE,LOWER Substituted by 5244395

5242678

Unavailable

22

BRACE,HOOD,UPPER

5242945

$40.46

23

BRACE,HOOD,LOWER

5242946

$40.46

24

RIVET-3/16-.090-.290

7661637

$1.49

25

SPRING-EXT.

7041732

$7.19

26

SPRING-ATTACHMENT RING(10)

7041760

$7.99

27

CLAMP, RETAINER(10)

7080372

$3.99

28

SCREW(10)

7517441

$2.39

29

SCREEN,FRONT,HYB

5432931

$36.41
