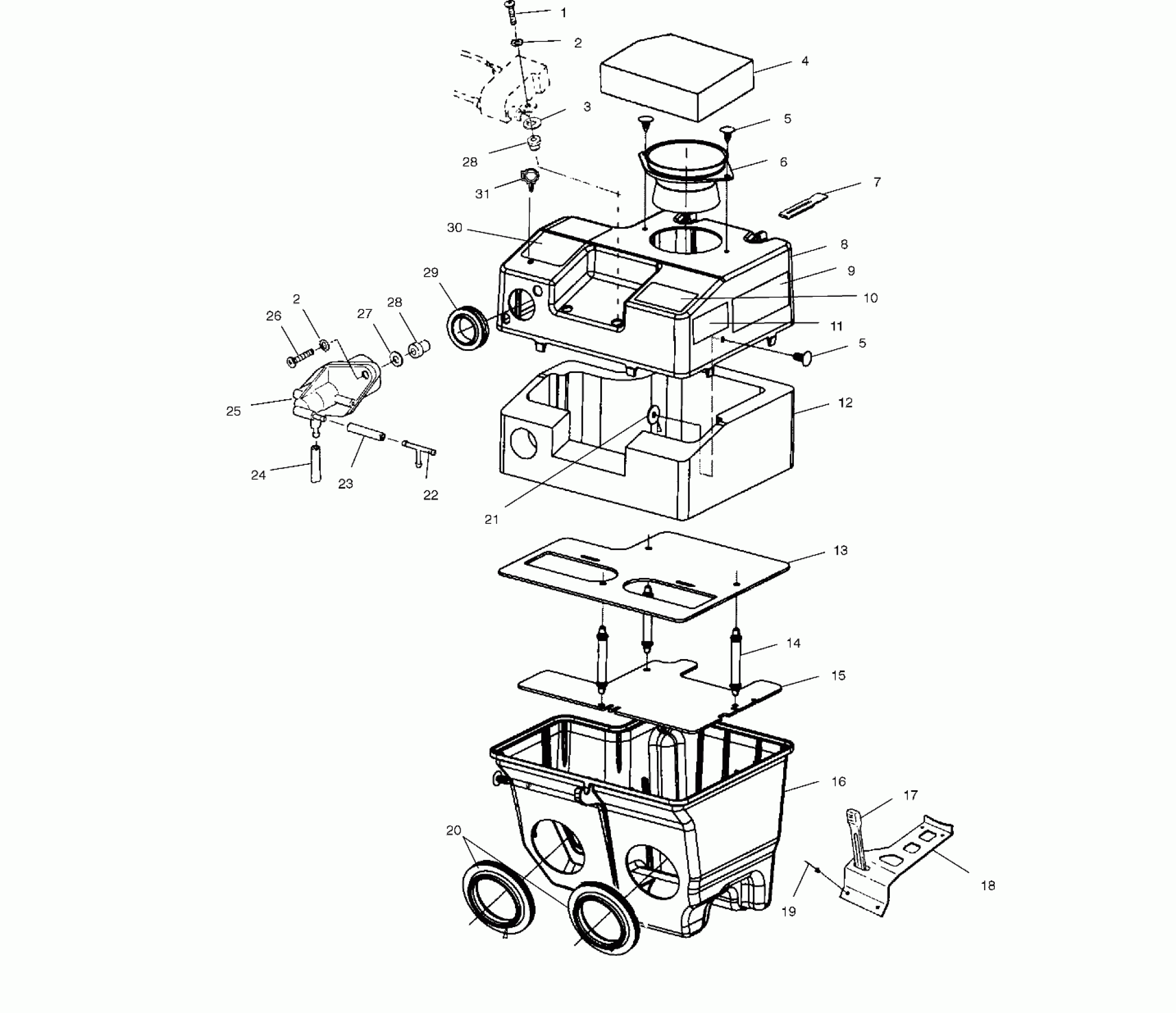

Polaris 600 RMK - S00SR6DS AIR BOX - S00SR6DS (4954125412c005) Diagram

#

Description
Price

1

BOLT(10)

7512281

$3.99

2

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

2

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

3

WASHER,NYLON

7555932

$2.39

4

DUCT,AIR INLET,ASM.

2632132

$52.60

5

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

5

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

6

DUCT,AIR INLET,SRP

5433436

Unavailable

7

RETAINER-TAB,(10)

5411075

Unavailable

8

SILINCER,TOP INTAKE,SRP,ACCS

5433537

Unavailable

9

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

10

DECAL,CAUTION,AIRBOX

7075351

Unavailable

11

DECAL, GREASING [No Longer Available]

7073426

$7.27

12

FOAM,AIRBOX,TOP,INTAKE,SRPACCS

5811893

Unavailable

13

PLATE-SILENCER,INTAKE,SRP

5811824

Unavailable

14

CONNECTOR-PLATE,SRP

5433437

Unavailable

15

PLATE-SILENCER INTAKE,LWR SRP

5811825

$10.71

16

SILENCER-INTAKE,ACCS,SRP

5433538

$26.39

17

STRAP,TIE-DOWN

5411129

$8.89

18

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable

19

RIVET,3/16X.402(50)

7621432

$1.49

20

BOOT,CARB

5411109

Unavailable

21

WASHER(10)

7555798

$1.49

22

FITTING, T

3050141

$9.59

23

PIPE-ACCS

3050269

Unavailable

24

PIPE-ACCS

3050268

Unavailable

25

ACCS.ASM,(99 600 RMK)

1253232

Unavailable

26

SCREW

7517377

$4.79

27

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

28

NUT-WELL(10)

7541923

$5.59

28

NUT-WELL(10)

7541923

$5.59

29

GROMMET,ACCS.

5410982

$5.03

30

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

31

CLIP,SILENCER,(10)

7670102

$2.39
