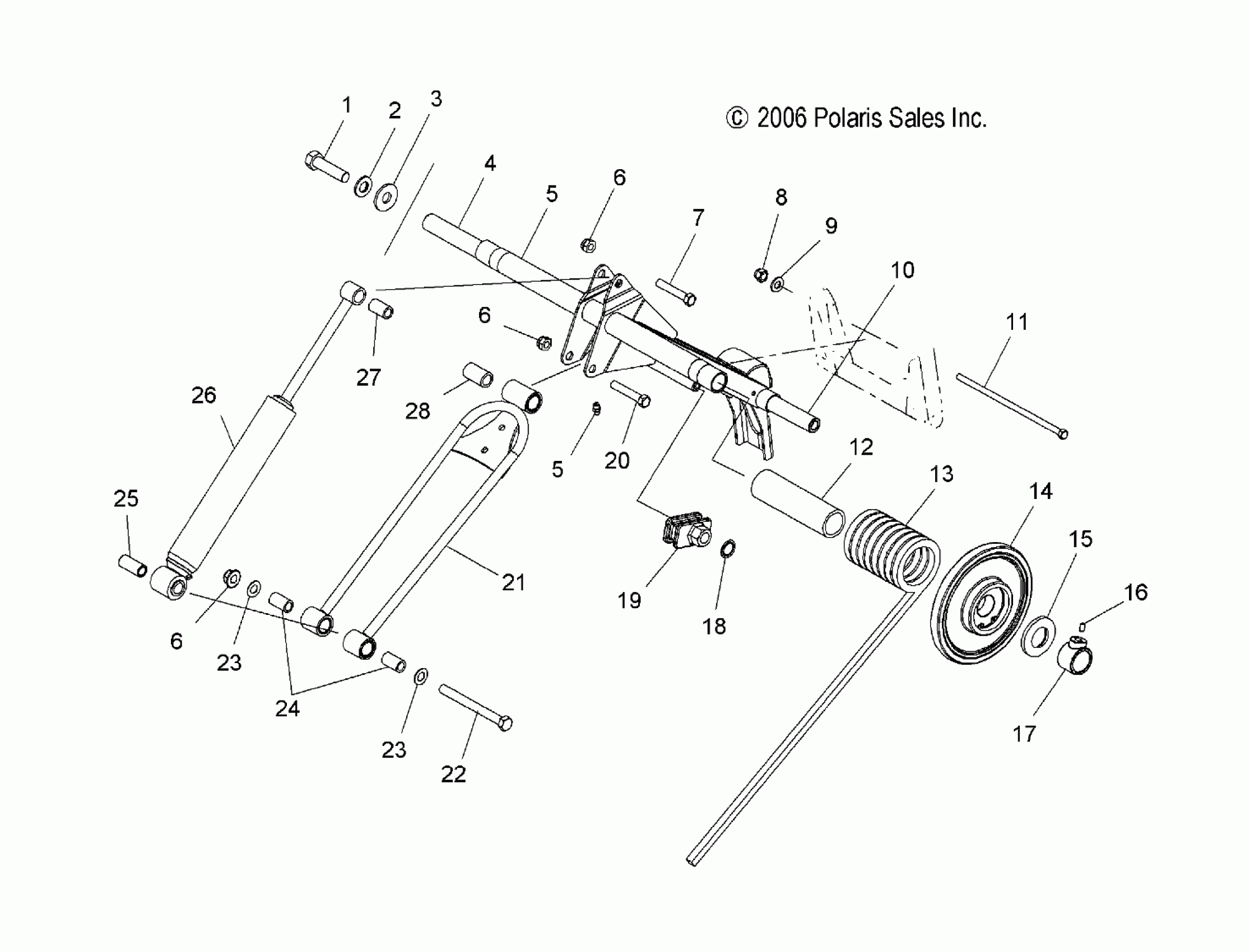

Polaris 600 RMK 144/155 - S07PK6FS/FE/PM6FS/PM6FSA TORQUE ARM, REAR - S07PK6FS/FE/PM6FS/PM6FSA (49SNOWTORQUEREAR600RMK) Diagram

#

Description
Price

1

SCREW

7518005

$3.19

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

SHAFT

5133987

$69.99

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

ARM, REAR TORQUE, BLACK

1541963-067

$284.99

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

ARM, REAR TORQUE, BLACK

1541963-067

$284.99

6

NUT-3/8-24 FLG LOC

7547263

$3.19

6

NUT-3/8-24 FLG LOC

7547263

$3.19

6

NUT-3/8-24 FLG LOC

7547263

$3.19

7

SCREW

7512410

Unavailable

8

Nut, Nylok

7547217

$3.99

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

SHAFT

5333997

$94.99

11

SCREW

7517908

$10.39

12

SLEEVE-TORSION SPRING RMK

5434337

$7.99

13

Spring, Torsion, .359/77, Black, LH

7041629-067

Unavailable

13

Spring, Torsion, .359/77, Black, RH

7041630-067

Unavailable

13

SPRING-TORSION,.347SQ/77�LHBLK [OPT]

7041627-067

$135.54

13

SPRING-TORSION,.347/77�,RH,BLK [OPT]

7041628-067

$135.54

13

Spring, Torsion, .375/77, Blk, LH [Opt]

7041942-067

Unavailable

13

Spring, Torsion, .375/77, Blk, RH [Opt]

7041943-067

Unavailable

14

RET.RING-TRUARC

7718407

$4.79

14

BEARING

3514303

$11.99

14

ASM., WHEEL, BOGIE

1590328

$48.56

15

WASHER, SPRING

7571605

$6.39

16

SCREW, SOCKET SET

7518262

$3.99

17

SPACER

5135424

$19.99

18

CLIP-PUSH ON

7080394

$2.39

19

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

20

Screw

7515415

$1.49

21

ASM., ROD, SHOCK [INCL. BUSHINGS]

1542170

$106.65

21

BUSHING

5435722

$5.59

21

BUSHING

5435723

$5.59

22

Screw

7518263

$3.99

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

BUSHING

5135043

$6.39

25

SLEEVE

5333905

$15.99

26

Shock, Rear Track

7043047

$214.99

26

Shock, Rear Track w/RES

7043235

Unavailable

27

BUSHING

5010422

$11.99

28

BUSHING

5134601

$15.99
