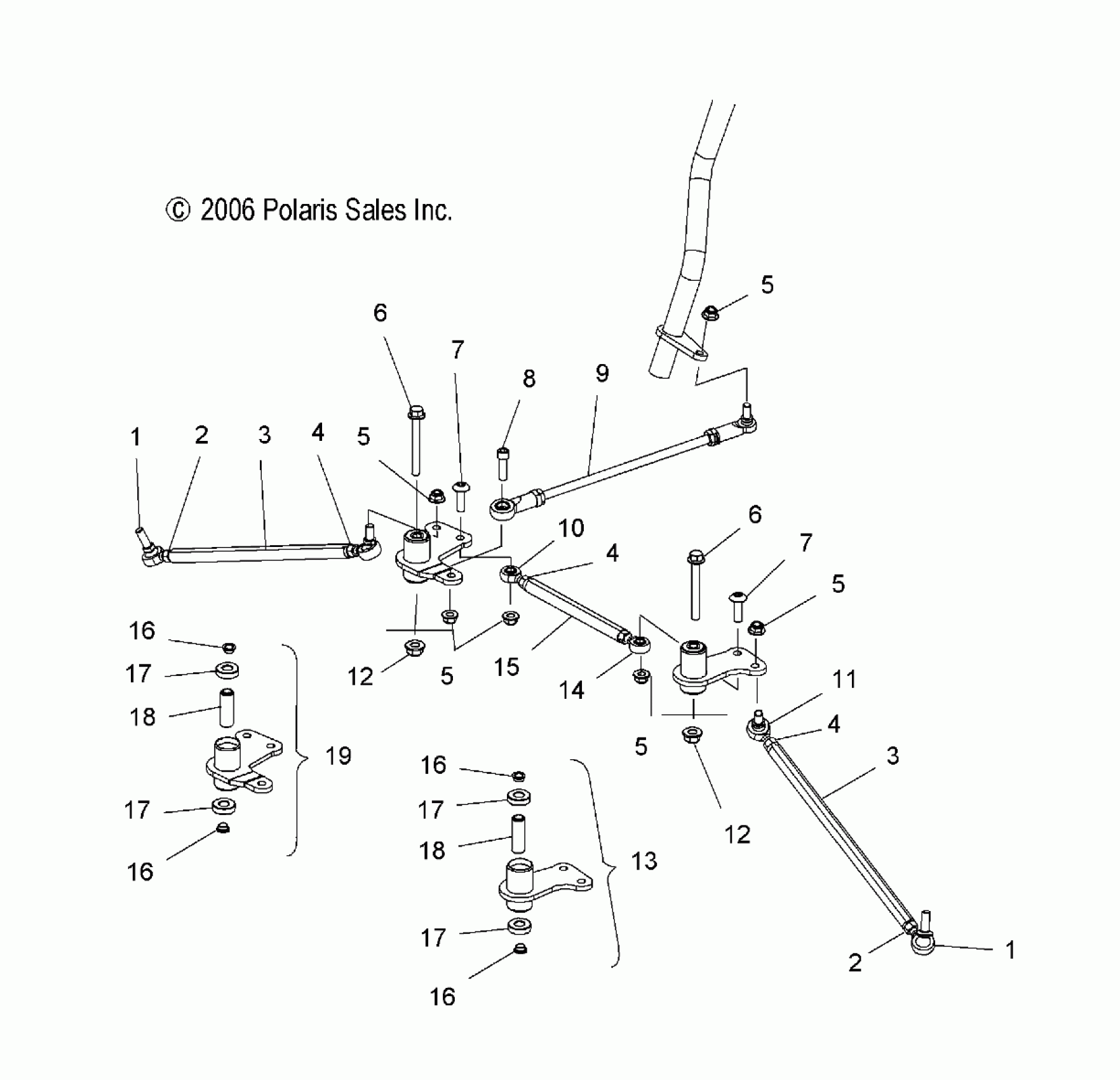

Polaris 600 RMK 144/155 - S07PK6FS/FE/PM6FS/PM6FSA STEERING, LOWER - S07PK6FS/FE/PM6FS/PM6FSA (49SNOWSTEERING600RMK) Diagram

#

Description
Price

1

Rod End, RH

7061057

$48.56

1

Rod End, RH

7061057

$48.56

2

Nut, Hex, RH

7542401

$2.39

2

Nut, Hex, RH

7542401

$2.39

3

Rod, Tie

5334666

$36.41

3

Rod, Tie

5334666

$36.41

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

6

Screw, Flange

7518277

$19.99

6

Screw, Flange

7518277

$19.99

7

SCREW

7518372

$2.99

7

SCREW

7518372

$2.99

8

Bolt

7515545

$5.59

9

Asm., Draglink, Fixed

1822907

$105.22

10

Rod End, LH

7060001

$48.56

11

Rod End, LH

7061055

$48.56

12

NUT, FLANGED

7547180

$2.39

12

NUT, FLANGED

7547180

$2.39

13

Asm., Arm, Idler

1821419

Unavailable

14

Rod End, RH

7060002

$48.56

15

Rod, Steering Rack

5334325

Unavailable

16

BUSHING, REDUCER

5132106

$7.99

16

BUSHING, REDUCER

5132106

$7.99

16

BUSHING, REDUCER

5132106

$7.99

16

BUSHING, REDUCER

5132106

$7.99

17

Bearing, Ball

3514320

$15.99

17

Bearing, Ball

3514320

$15.99

17

Bearing, Ball

3514320

$15.99

17

Bearing, Ball

3514320

$15.99

18

SPACER, TUBE PITMAN/IDLER ARMS

5135452

$34.99

18

SPACER, TUBE PITMAN/IDLER ARMS

5135452

$34.99

19

Asm., Pitman Arm [Incl. 17-19]

1822908

$143.99
