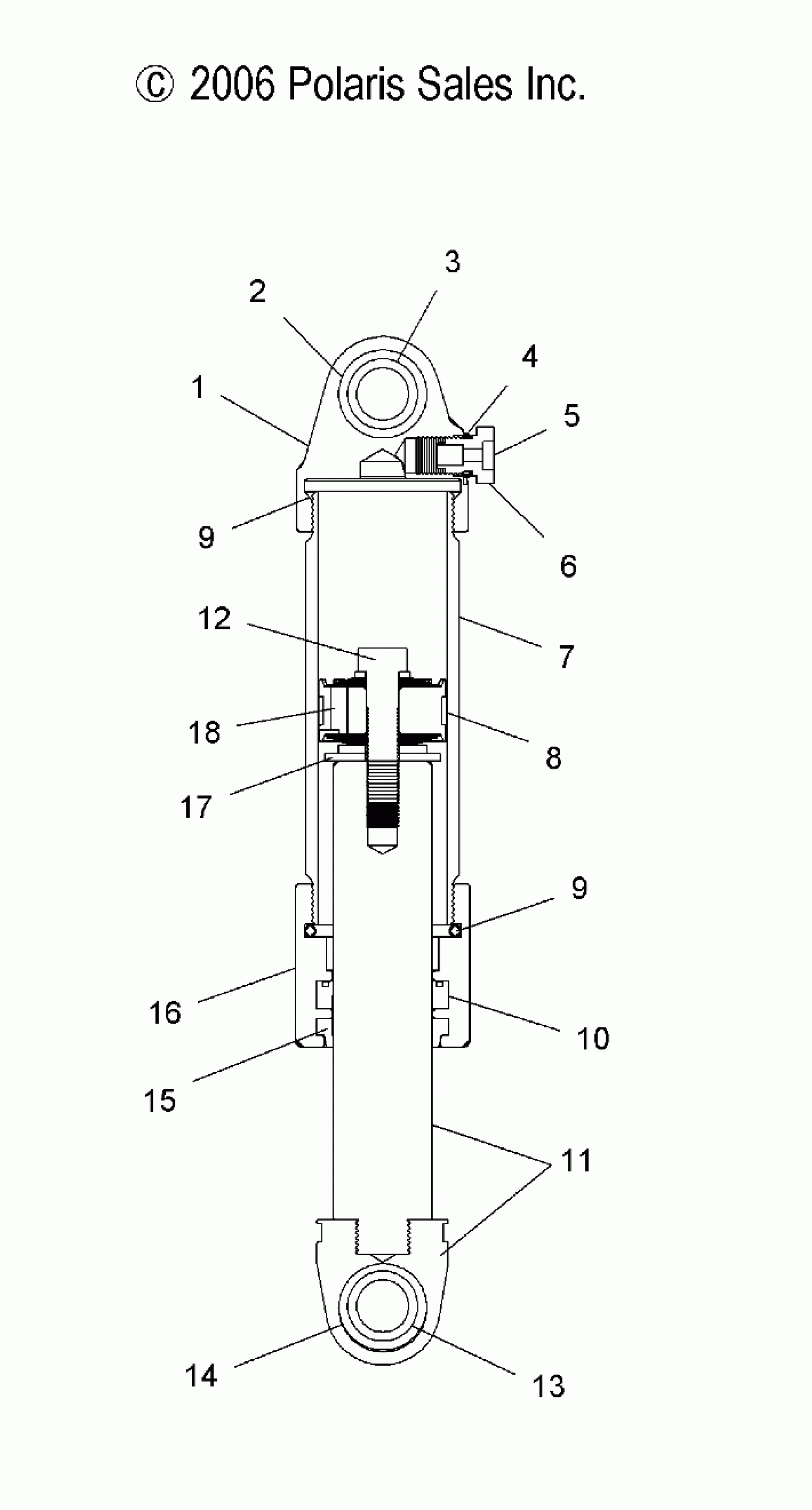

Polaris 600 RMK 144/155 - S07PK6FS/FE/PM6FS/PM6FSA SHOCK, FRONT TRACK (7043234) - S07PK6FS/FE/PM6FS/PM6FSA (49SNOWSHOCKFRONT7043234) Diagram

#

Description
Price

-

Asm., Seal, Rebuild [Incl. 9,10,15]

1800320

Unavailable

-

Shock, Track, Front

7043234

Unavailable

1

Body Loop

1800273

Unavailable

2

BUSHING, SMALL

1800289

$15.99

3

Sleeve, Bushing, Small

1800290

$20.22

4

O-Ring

1800108

$1.49

5

SCREW, BUTTON HEAD

1800109

$3.19

6

Valve, Needle

1800107

$16.35

7

Body

1800274

Unavailable

8

Wear Band

1800029

Unavailable

9

O-RING BODY LOOP

1800030

$2.02

9

O-RING BODY LOOP

1800030

$2.02

10

Seal, U-Cup

1800278

Unavailable

11

Asm., Shaft/Eyelet

1800318

Unavailable

12

Bolt

1800275

Unavailable

13

Sleeve, Bushing, Large

1800287

$28.32

14

BUSHING/URETHANE

1800033

$19.99

15

Seal, Wiper

1800279

Unavailable

16

Seal Head

1800277

Unavailable

17

Washer

1800276

$7.03

18

Asm., Piston w/Band

1800130

$129.51
