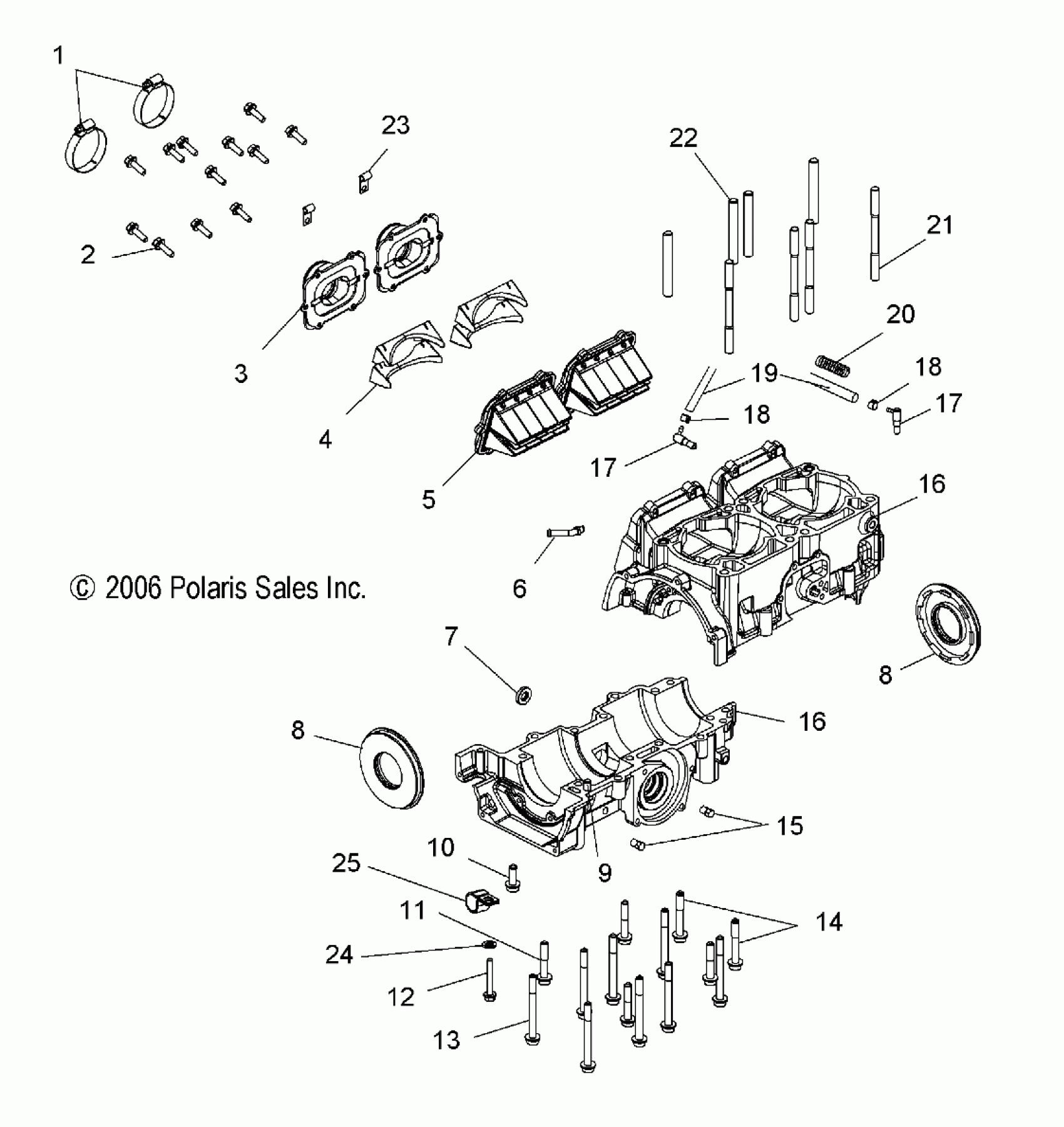

Polaris 600 RMK 144/155 - S07PK6FS/FE/PM6FS/PM6FSA ENGINE, CRANKCASE - S07PK6FS/FE/PM6FS/PM6FSA (49SNOWCRANKCASE600HO) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

SCREW

7516822

$2.39

3

Adaptor, Carburetor NOTE: For Engine Serial #'s 0120327300140-0120327302497 replace both adaptors. These were originally built with thicker adaptors.

1203447

$79.99

4

Stuffer, Reed Valve w/Reed

5436121

Unavailable

5

ASM., REED VALVE

1202698

$133.56

6

Fitting

7052354

Unavailable

7

Bearing, Pump Shaft

5010390

Unavailable

8

Seal, Flange

5412091

$29.99

8

Seal, Flange

5412091

$29.99

9

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

10

SCREW

7517577

$3.99

11

BOLT

7517786

$6.39

12

SCREW

7516825

$5.59

13

BOLT

7517784

$8.79

14

BOLT

7517785

$9.59

15

Plug

7051529

$15.99

16

Kit, Crankcase [Incl. 9-15,21,22]

2203037

Unavailable

16

Kit, Crankcase [Incl. 9-15,21,22]

2203037

Unavailable

17

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

17

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

18

Clamp

7080603

$1.59

18

Clamp

7080603

$1.59

19

LINE, FUEL

8450061-600

Unavailable

20

TUBING, CONVOLUTED

8360056-25

$4.03

21

Stud, Cylinder

5132197

$21.27

22

Stud, Cylinder

5132196

$20.63

23

J-Clip

7080884

$3.99

24

Washer, Flat

7555836

$3.99

25

Clamp, Hose

7080880

$5.59
