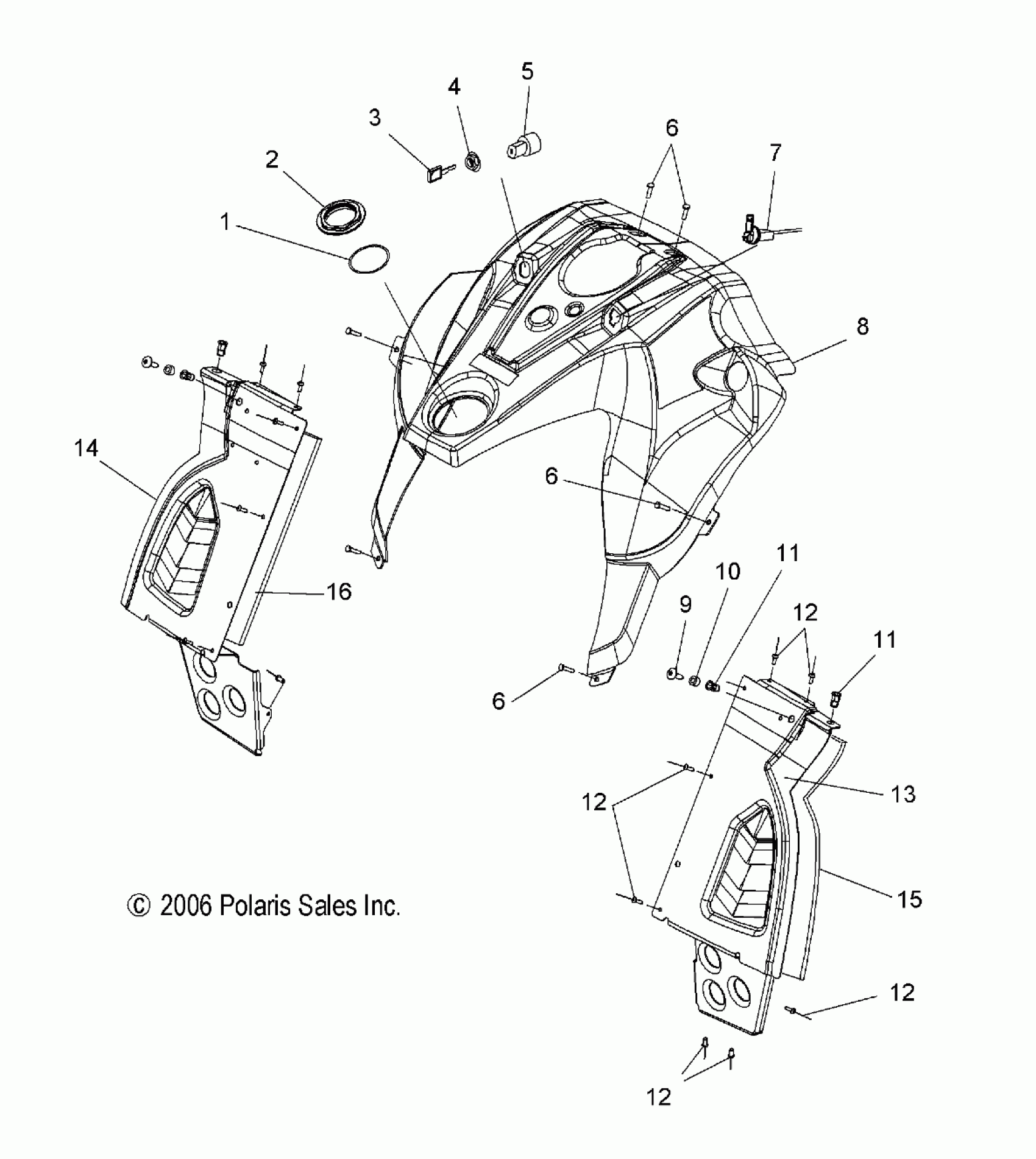

Polaris 600 RMK 144/155 - S07PK6FS/FE/PM6FS/PM6FSA CONSOLE - S07PK6FS/FE/PM6FS/PM6FSA (49SNOWCONSOLE600RMK) Diagram

#

Description
Price

1

O-Ring

5411174

$1.60

2

Nut, Filler Neck

5435156

$4.79

3

Cap w/Key

5410611

Unavailable

4

Nut, Ignition

7547035

$8.79

5

Kit, Ignition, Switch

2200358

$76.89

6

Screw

7517916

$6.39

6

Screw

7517916

$6.39

6

Screw

7517916

$6.39

7

Nut, Choke

5432944

$8.79

7

Kit, Choke Lever Repair

2201439

$24.27

7

Washer

7556374

$1.49

7

Cable, Choke

7081354

$48.56

8

Asm., Console, Black [Incl. Warning Decals]

2633283-070

$148.79

9

SCREW

7517685

$1.59

10

SPACER-.26X.50X.31

7556318

$2.39

11

Nutsert

7547069

$3.99

11

Nutsert

7547069

$3.99

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

13

Asm., Side Console, RH [Incl. 9-11,15]

1015643

$151.99

14

Asm., Side Console, LH [Incl. 9-11,16]

1015642

$157.84

15

Foam/Fiber

5813131

Unavailable

16

Foam/Fiber

5813132

$17.43
