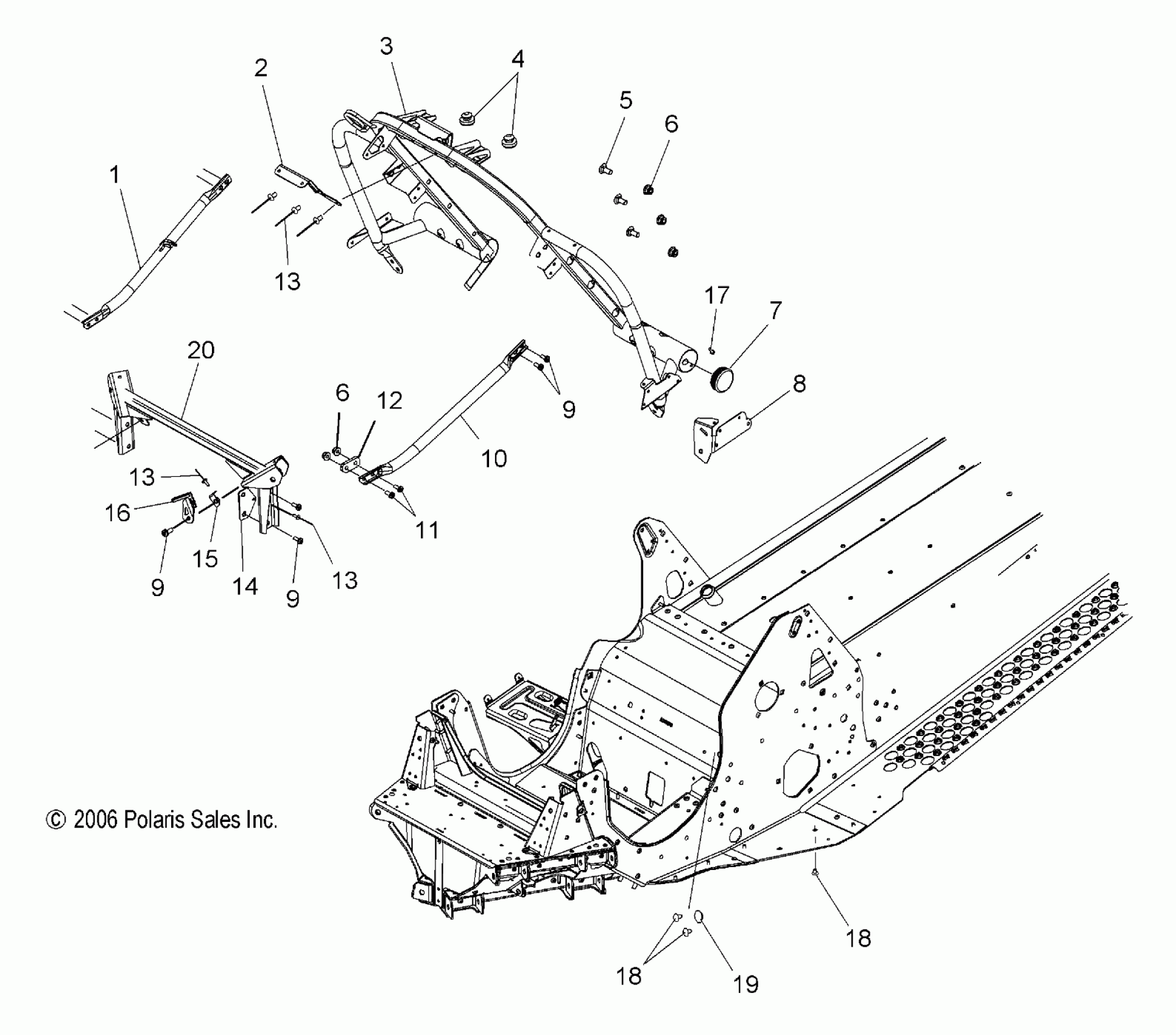

Polaris 600 RMK 144/155 - S07PK6FS/FE/PM6FS/PM6FSA CHASSIS, FRONT 1 - S07PK6FS/FE/PM6FS/PM6FSA (49SNOWCHASSISFRT600RMK) Diagram

#

Description
Price

1

Brace, Upper, Black, RH

1015381-067

$63.99

2

Bracket, Console, Mount

5250303

$28.99

3

Mount, Steering Hoop, Black

1015403-067

$339.99

4

BUMPER-RUBBER

5412067

$3.99

5

Bolt, Carriage

7517428

$2.39

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

Plug, Tube

5413074

$5.65

8

Mount, Battery Box, Black E-Coat [Electric Start Option Only]

1015559-329

Unavailable

9

Screw

7517810

$3.99

9

Screw

7517810

$3.99

9

Screw

7517810

$3.99

10

Brace, Upper, Black, LH

5334676-067

$40.46

11

SCREW

7518070

$5.59

12

Spacer

5135003

Unavailable

13

RIVET-3/16-.090-.290

7661637

$1.49

13

RIVET-3/16-.090-.290

7661637

$1.49

13

RIVET-3/16-.090-.290

7661637

$1.49

14

Asm., Plate Nut

1014820

Unavailable

15

Asm., Plate/Nut

1015027

Unavailable

16

Bracket, Exhaust Solenoid, Black

5249312-067

Unavailable

17

SCREW

7512026

$1.49

18

Clip, Dart

7670067

$3.99

18

Clip, Dart

7670067

$3.99

19

Plug, Hole

7080689

$5.75

20

Cross Member

1015368-067

$149.75
