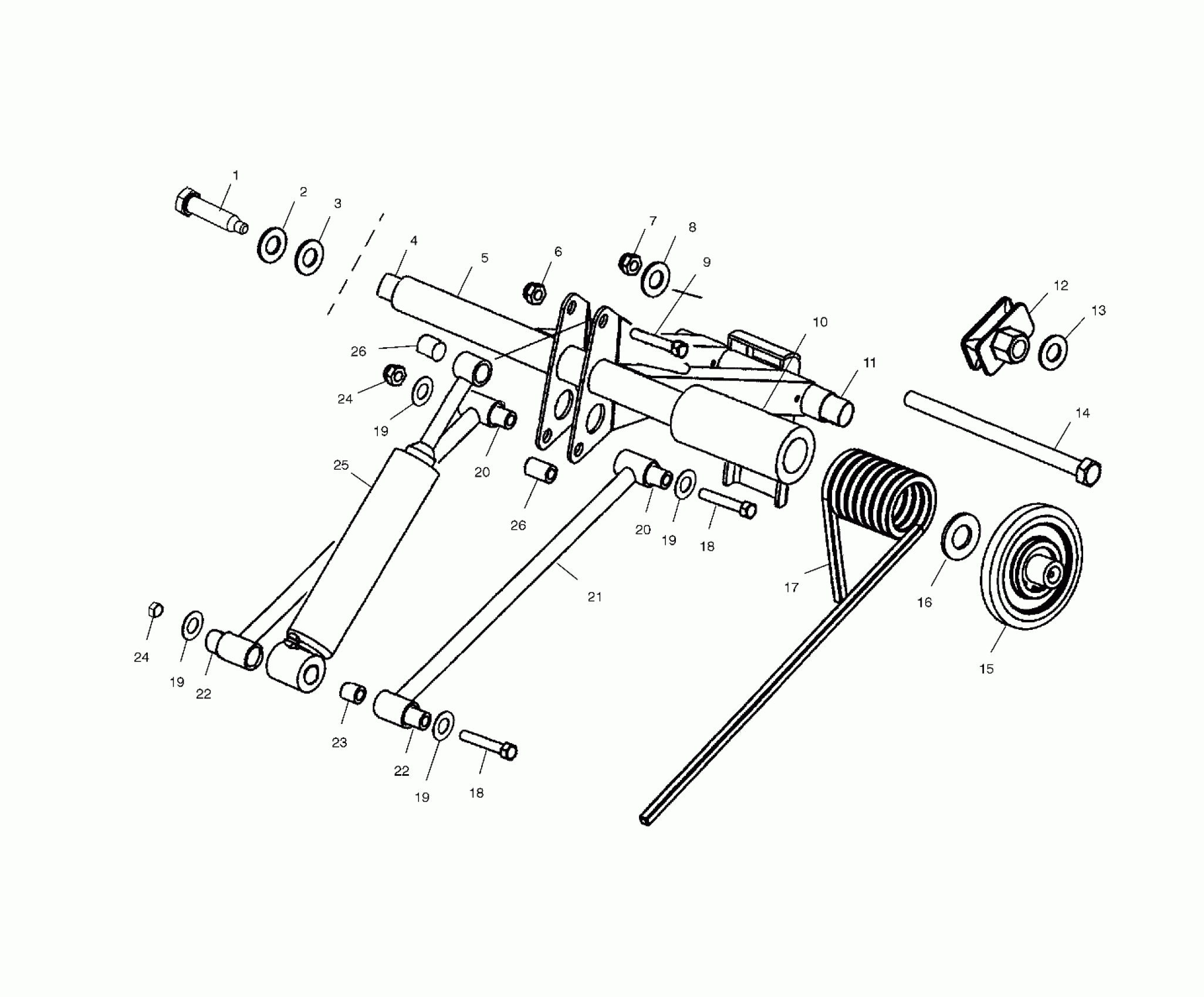

Polaris 600 RMK 136 BUILT BEFORE 3/1/01 - S02NJ6ES REAR TORQUE ARM - S02NJ6ES (4972267226B09) Diagram

#

Description
Price

1

Screw

7517435

$14.99

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

Shaft

5131450

Unavailable

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

Arm, Torque, Rear

1541670-293

$159.03

6

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7547064

Unavailable

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

SCREW

7512410

Unavailable

10

SLEEVE-TORSION SPRING RMK

5434337

$7.99

11

SHAFT

5333997

$94.99

12

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

13

CLIP-PUSH ON

7080394

$2.39

14

SCREW

7517908

$10.39

15

Wheel w/Collar, Carrier

1541285

Unavailable

16

Bushing

7556301

$3.19

17

SPRING-TORSION,.347SQ/77�LHBLK [.347/47]

7041627-067

$135.54

17

SPRING-TORSION,.347/77�,RH,BLK [.347/47]

7041628-067

$135.54

18

Screw

7515496

$9.59

18

Screw

7515496

$9.59

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

20

Bushing

5133101

$7.99

20

Bushing

5133101

$7.99

21

Rod, Shock

1541631-067

Unavailable

22

Bushing

5132391

$7.99

22

Bushing

5132391

$7.99

23

SLEEVE

5333905

$15.99

24

NUT, NYLOK

7547025

$2.63

24

NUT, NYLOK

7547025

$2.63

25

Shock, Track, Rear

7042058

$214.99

26

BUSHING

5010422

$11.99

26

BUSHING

5430537

$3.99

26

BUSHING

5010422

$11.99

26

BUSHING

5430537

$3.99
