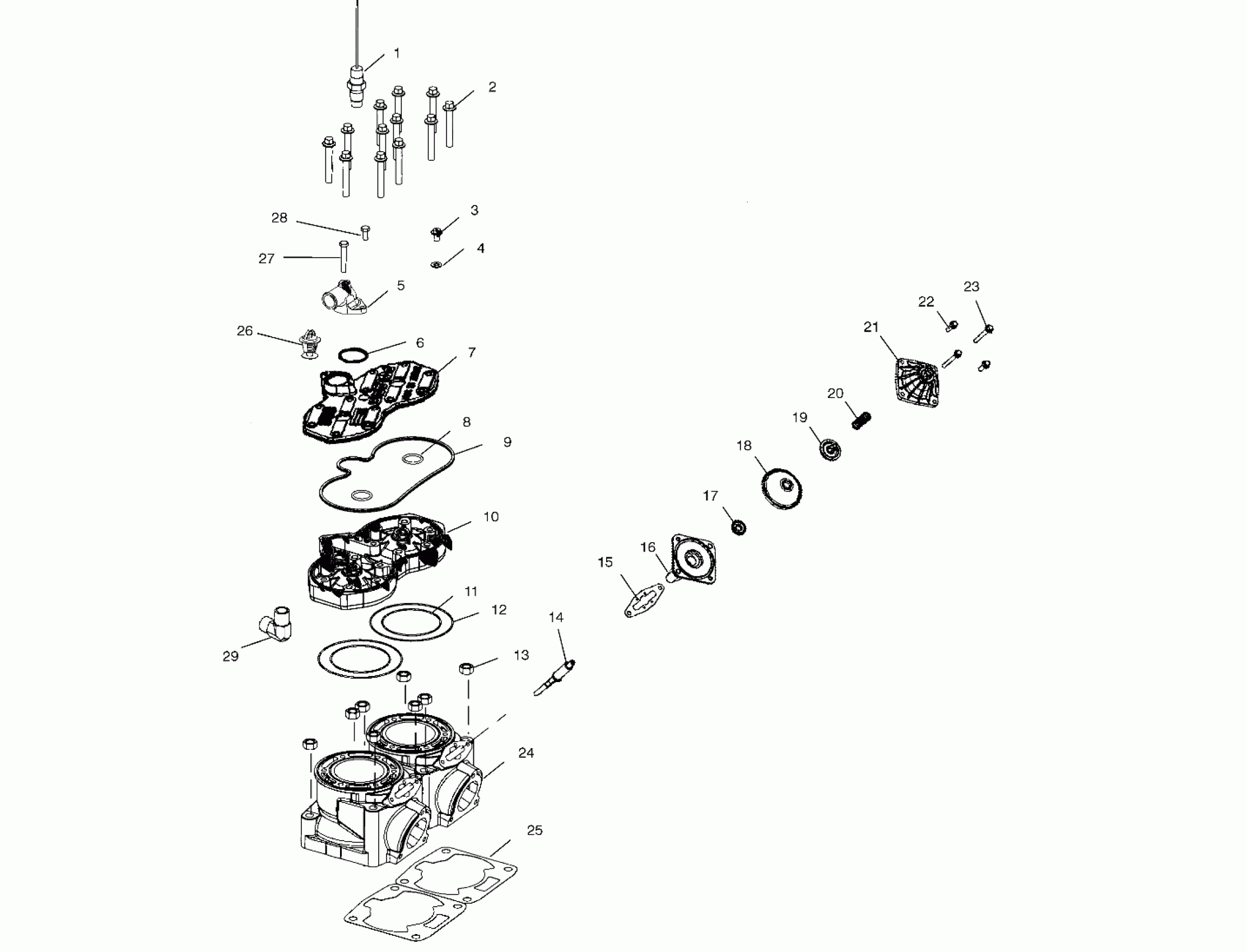

Polaris 600 RMK 136 BUILT BEFORE 3/1/01 - S02NJ6ES CYLINDER - S02NJ6ES (4972267226C04) Diagram

#

Description
Price

1

Sensor, Temperature

4010251

$36.41

2

SCREW

7517533

$4.79

3

SCREW

7517679

$13.59

4

WASHER, FLAT

7555998

$1.49

5

Cover, Thermostat

5630992

Unavailable

6

O-Ring

5411521

$24.19

7

Cover, Head

5631199-093

Unavailable

8

O-RING

5411411

$1.49

9

Seal, Rubber Head Cover

5411465

$32.37

10

Head, Cylinder

3021278

Unavailable

11

O-RING

5410932

$20.22

12

O-RING

5411359

$15.99

13

NUT

7547013

$1.99

14

Valve, Guillotine

1201958

Unavailable

15

Gasket

5812241

$6.46

16

Asm., Base

1202216

Unavailable

17

Washer

5132950

Unavailable

18

Bellows, Exhaust Valve

5412056

$44.51

19

Cap

5631152

Unavailable

20

Spring

7041704-03

$28.32

21

Housing, Bellows

5434175

Unavailable

22

SCREW

7516820

$5.59

23

SCREW

7517932

$3.99

24

Cylinder

3021257

$531.75

25

Gasket, Cylinder Base

5811916

$24.99

26

Thermostat

7052267

$40.46

27

SCREW

7516818

$5.59

28

SCREW

7516822

$2.39

29

Fitting

7052221

Unavailable
