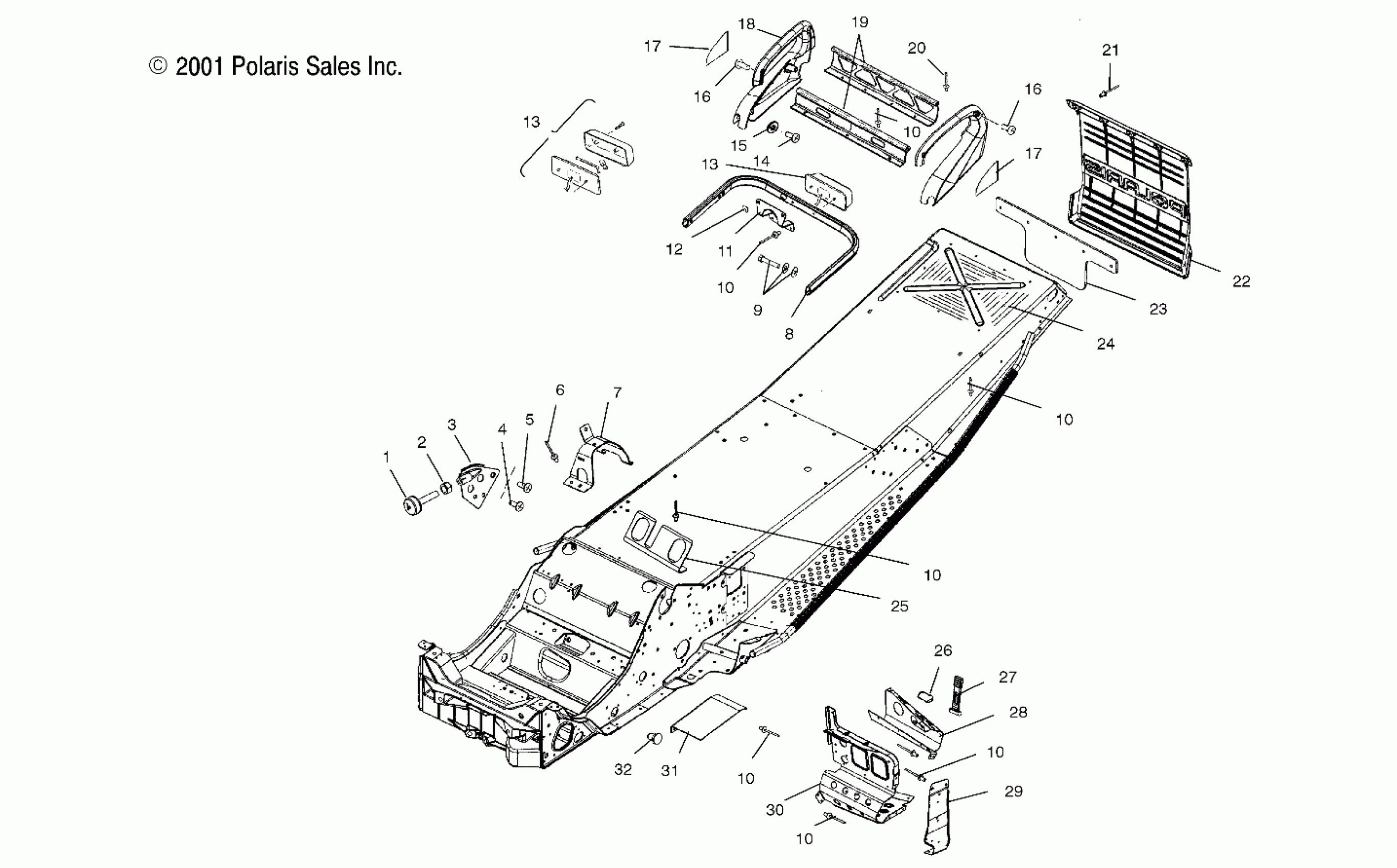

Polaris 600 RMK 136 BUILT BEFORE 3/1/01 - S02NJ6ES CHASSIS - S02NJ6ES (4972267226A03) Diagram

#

Description
Price

-

Asm., Chassis

1013452-309

Unavailable

1

Stop, Torque

3021104

$20.22

2

NUT

7542404

$1.59

3

Stop, Torque

1013379

Unavailable

4

Screw

7517854

$5.59

5

SCREW

7517632

$5.59

6

Rivet

7621432

$1.49

7

Bracket, Jackshaft Shield

5245003

$13.19

8

Bumper, Rear

2632413-309

Unavailable

9

Washer, Flat

7558301

$1.49

9

WASHER, SPRING LOCK

7552801

$1.59

9

Screw

7512113

$3.99

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

11

Bracket, Taillight

5245419-067

$16.47

12

Clip, Retainer

7670093

$5.99

13

Lens

4032085

$36.41

13

Backing

4032087

Unavailable

13

Screw

7512088

$2.39

13

Gasket

4032086

Unavailable

13

Bulb, Tallight

4030043

$6.46

13

Asm., Taillight

2410267

Unavailable

13

Lens

4032085

$36.41

13

Backing

4032087

Unavailable

13

Screw

7512088

$2.39

13

Gasket

4032086

Unavailable

13

Bulb, Tallight

4030043

$6.46

13

Asm., Taillight

2410267

Unavailable

14

SCREW

7512094

$1.59

15

Washer, Flat

7558301

$1.49

16

SCREW

7517686

$1.59

16

SCREW

7517686

$1.59

17

Decal - Reflector, Red, RH

7079668

$11.90

17

Decal - Reflector, Red, LH

7079667

Unavailable

17

Decal - Reflector, Red, RH

7079668

$11.90

17

Decal - Reflector, Red, LH

7079667

Unavailable

18

Skirt, Snow, LH

5434097-070

Unavailable

18

Skirt, Snow, RH

5434098-070

$46.39

19

Rack, Front

5133058

$72.49

19

Rack, Rear

5133059

$149.99

20

Rivet

7661130

$1.49

21

RIVET

7621418

$1.49

22

Flap, Snow

5434099-1106

Unavailable

23

Support, Snow Flap

5812229

Unavailable

24

Protector, Bed, Front/Rear

5412033

$7.43

24

Protector, Bed, LH

5412074

$16.47

24

Protector, Bet, RH

5412075

$14.76

25

Bracket, Air Box

5245725

$18.10

26

EXTRUSION, CLUTCH GUARD

5521238

$6.46

27

STRAP-AIRBOX TOP

5433150

$24.27

28

Mount, Console, Toe Clip, LH

5245457

Unavailable

28

Mount, Console, Toe Clip, RH

5245458

Unavailable

29

Support, Footrest, LH

5242741

$19.68

29

Support, Footrest, RH

5242742

$32.37

30

Footrest, LH

5245288

Unavailable

30

Footrest, RH

5242740

Unavailable

31

Guard, Adapter

5221583

$11.59

32

PLUG, HOLE

7080416

$5.65
