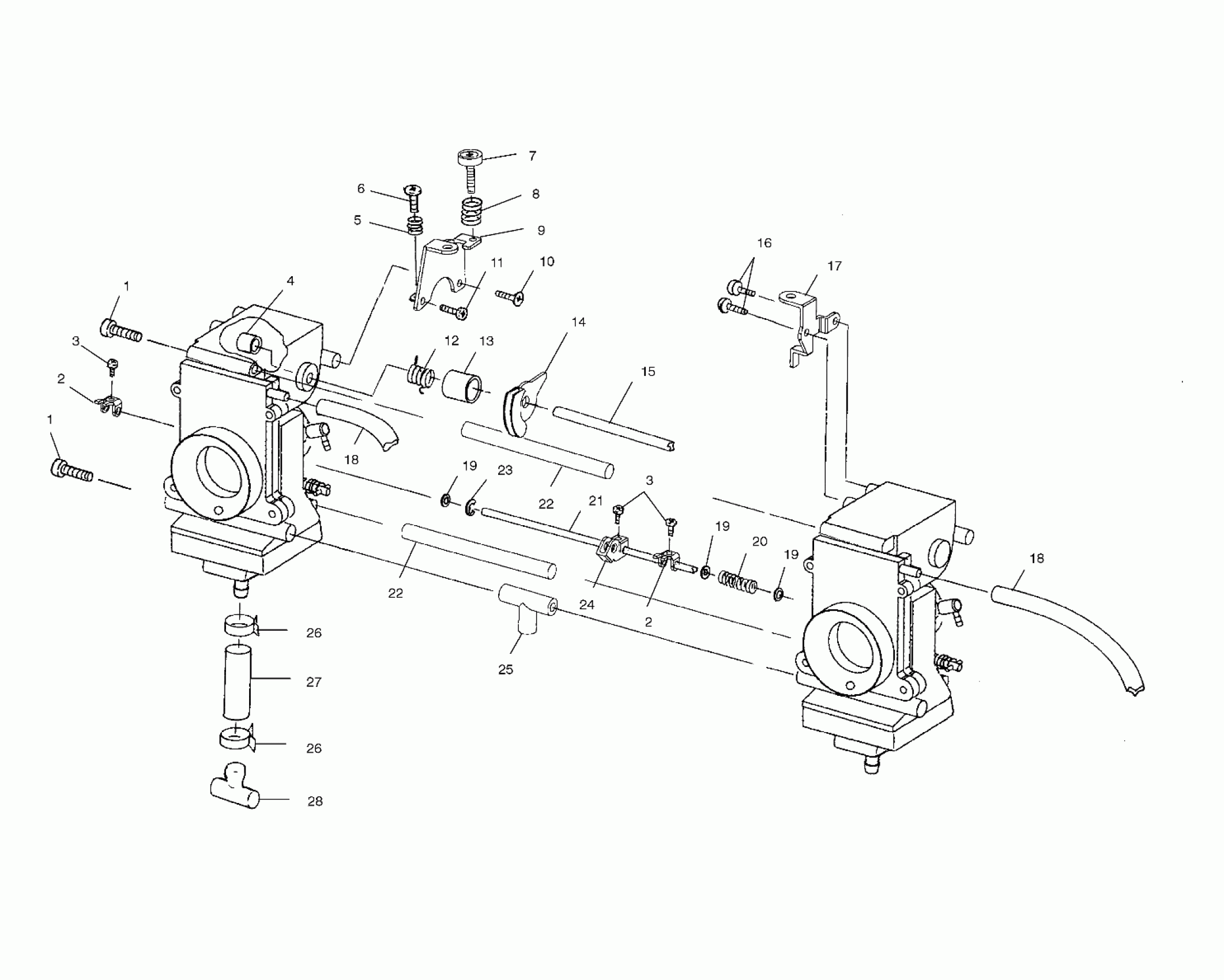

Polaris 600 RMK 136 BUILT BEFORE 3/1/01 - S02NJ6ES CARBURETOR - S02NJ6ES (4972267226C07) Diagram

#

Description
Price

1

Bolt

3130834

$27.99

1

Bolt

3130834

$27.99

2

Lever

3130832

$24.27

2

Lever

3130832

$24.27

3

Screw

3130833

$3.99

3

Screw

3130833

$3.99

4

Ring

3140032

Unavailable

5

Spring

3130817

$6.46

6

Screw

3130816

$6.39

7

Adjuster

3131285

$24.27

8

Spring

3131284

$8.89

9

Bracket

3130815

$29.75

10

Screw

3130810

$3.19

11

Screw

3130809

$3.19

12

Spring

3130814

Unavailable

13

Ring

3130853

$7.27

14

Lever

3130813

$33.91

15

Shaft

3130827

$51.99

16

Screw

3130821

$7.19

17

Bracket

3130820

$40.46

18

Hose

3131137

Unavailable

18

Hose

3131137

Unavailable

19

Packing, Starter Shaft

3130842

$2.83

19

Packing, Starter Shaft

3130842

$2.83

19

Packing, Starter Shaft

3130842

$2.83

20

Spring, Starter Shaft

3130841

$7.27

21

Shaft

3130840

$28.32

22

Ring

3130852

$20.22

22

Ring

3130852

$20.22

23

E-Ring

3130839

$4.84

24

Lever, Starter

3130819

$32.37

25

Nipple, Fuel Inlet

3130823

Unavailable

26

HOSE CLAMP, RED

7080003

$1.49

26

HOSE CLAMP, RED

7080003

$1.49

27

Line, Fuel

8350017-600

Unavailable

28

Plug, Trap

5431893

$12.94
