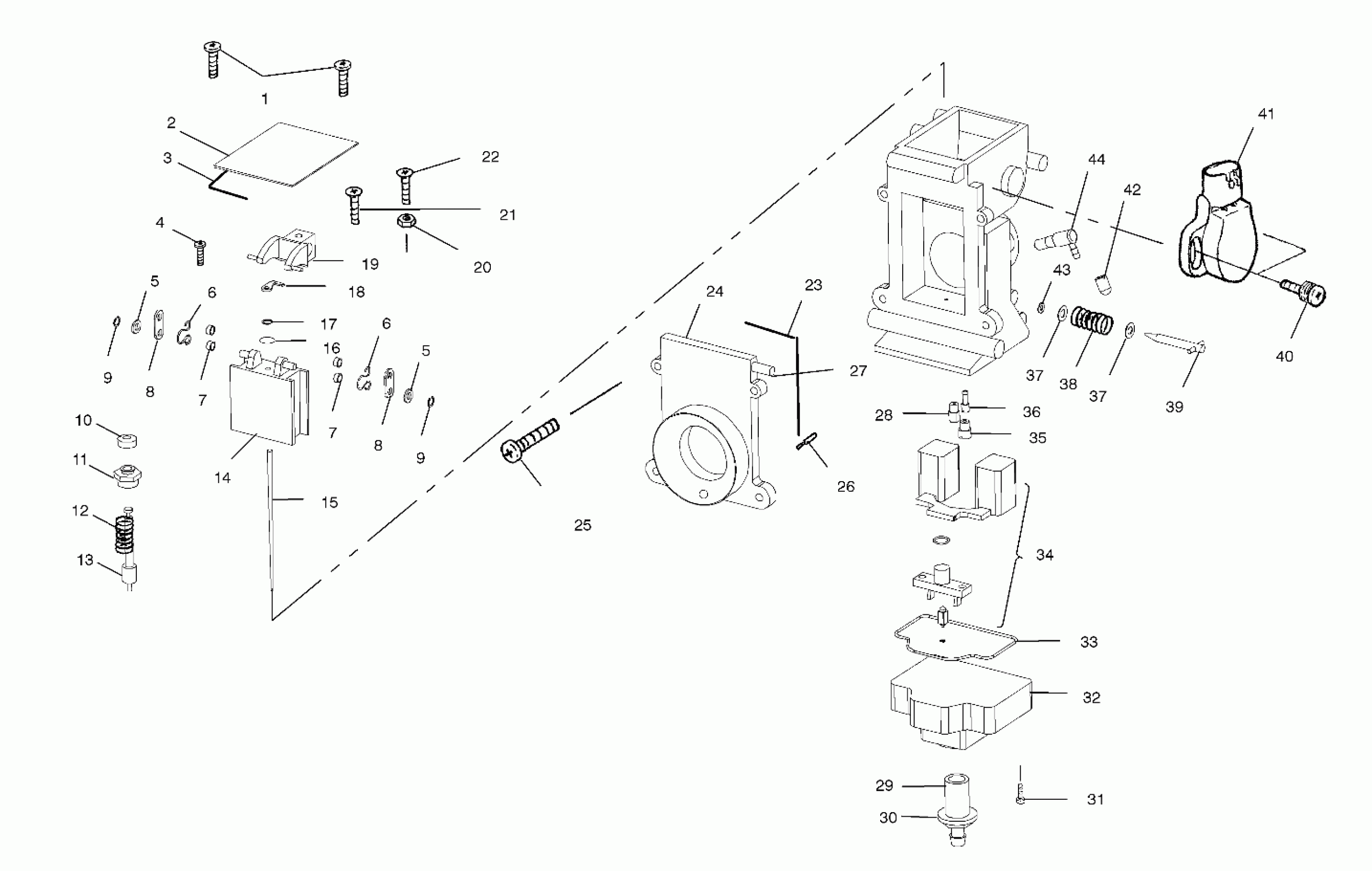

Polaris 600 RMK 136 BUILT BEFORE 3/1/01 - S02NJ6ES CARBURETOR - S02NJ6ES (4972267226C06) Diagram

#

Description
Price

-

Asm., Carburetor

1253420

$619.99

1

SCREW

3130851

$2.39

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Packing

3130846

$4.79

5

Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Plunger

3130828

$32.37

14

Valve, Piston [2.5]

3130790

Unavailable

15

Needle, Jet [J8-9DFH7-60-3]

3131268

$44.51

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

Lever, LH

3130855

$64.75

19

Lever, RH

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw, LH

3130854

$3.19

22

Screw, RH

3130850

$4.79

23

O-Ring, Air Funnel, Long

3131356

$16.17

24

Funnel, Long

3131335

$53.59

25

Screw

3130825

$3.19

26

Screw, Air

3131336

Unavailable

27

Pin

3130808

Unavailable

28

Jet, Main [310]

3130134

$7.27

29

Nipple

3130862

Unavailable

30

O-Ring

3130863

$2.41

31

Screw

3130824

$3.19

32

Body, Float

3130858

$119.99

33

O-Ring

3130861

$12.13

34

Float

3130859

$94.99

35

Jet, Pilot [40]

3130067

$10.99

36

Jet, Starter [140]

3130768

$8.89

37

Washer

3130837

$3.19

37

Washer

3130837

$3.19

38

SPRING

3130836

$7.27

39

Asm., Adjuster

3130838

Unavailable

40

Screw [MAG Side] [MAG Side]

3131010

$4.79

41

Asm., Sensor [MAG Side]

3131009

$259.03

42

CAP

3130479

$14.56

43

Packing

3130835

$2.41

44

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
