Partiron

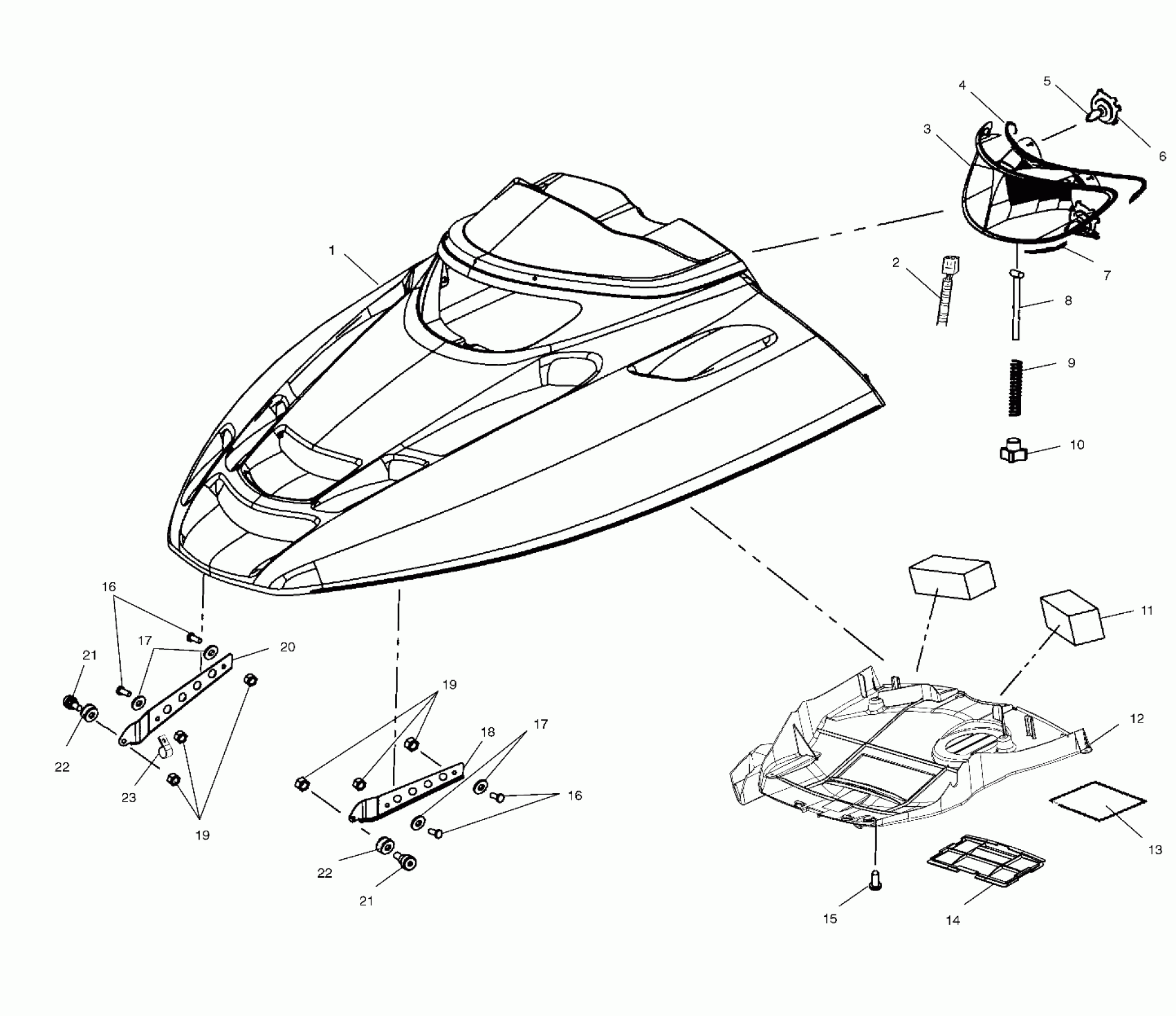

Polaris 600 RMK 136 BUILT AFTER 3/1/01 - S02NJ6ES HOOD - S02NJ6ES (4969456945A08) Diagram

#

Description
Price

1

Asm., Hood, Sonic Blue

2632212-341

Unavailable

2

Harness, Headlight

2460791

$65.87

3

Asm. Headlamp (Incl. Bulbs)

2410132

Unavailable

4

Foam, Seal, Headlight, Top

5812175

Unavailable

5

BULB, HEADLIGHT

2870448

$24.99

6

Retainer, Headlamp Bulb

4032063

Unavailable

7

Foam, Seal, Headlight, Bottom

5812174

Unavailable

8

Bolt, Tee Adjust

7517872

Unavailable

9

Spring, Headlight Adjust

7041954

$3.22

10

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

11

Foam, Prefilter

5811793

$24.27

12

Foil

5811948

Unavailable

12

Asm., Foil Plenum

2632491

$64.75

12

Foil, Plenum

5812324

Unavailable

13

Decal, Suspension Set-Up

7170040

Unavailable

14

Cover, Access, Headlight

5433660

$24.27

15

SCREW

7512068

$2.39

16

BOLT

7512240

$3.99

16

BOLT

7512240

$3.99

17

Washer, Flat

7558301

$1.49

17

Washer, Flat

7558301

$1.49

18

Hinge, Upper, LH

5243567-067

Unavailable

19

Nut, Nylok

7542122

$1.49

19

Nut, Nylok

7542122

$1.49

20

Hinge, Upper, RH

5243568-067

Unavailable

21

Bolt

7512113

$3.99

21

Bolt

7512113

$3.99

22

Spacer

5332403

$4.84

22

Spacer

5332403

$4.84

23

CLAMP-CABLE

7080367

$2.39
