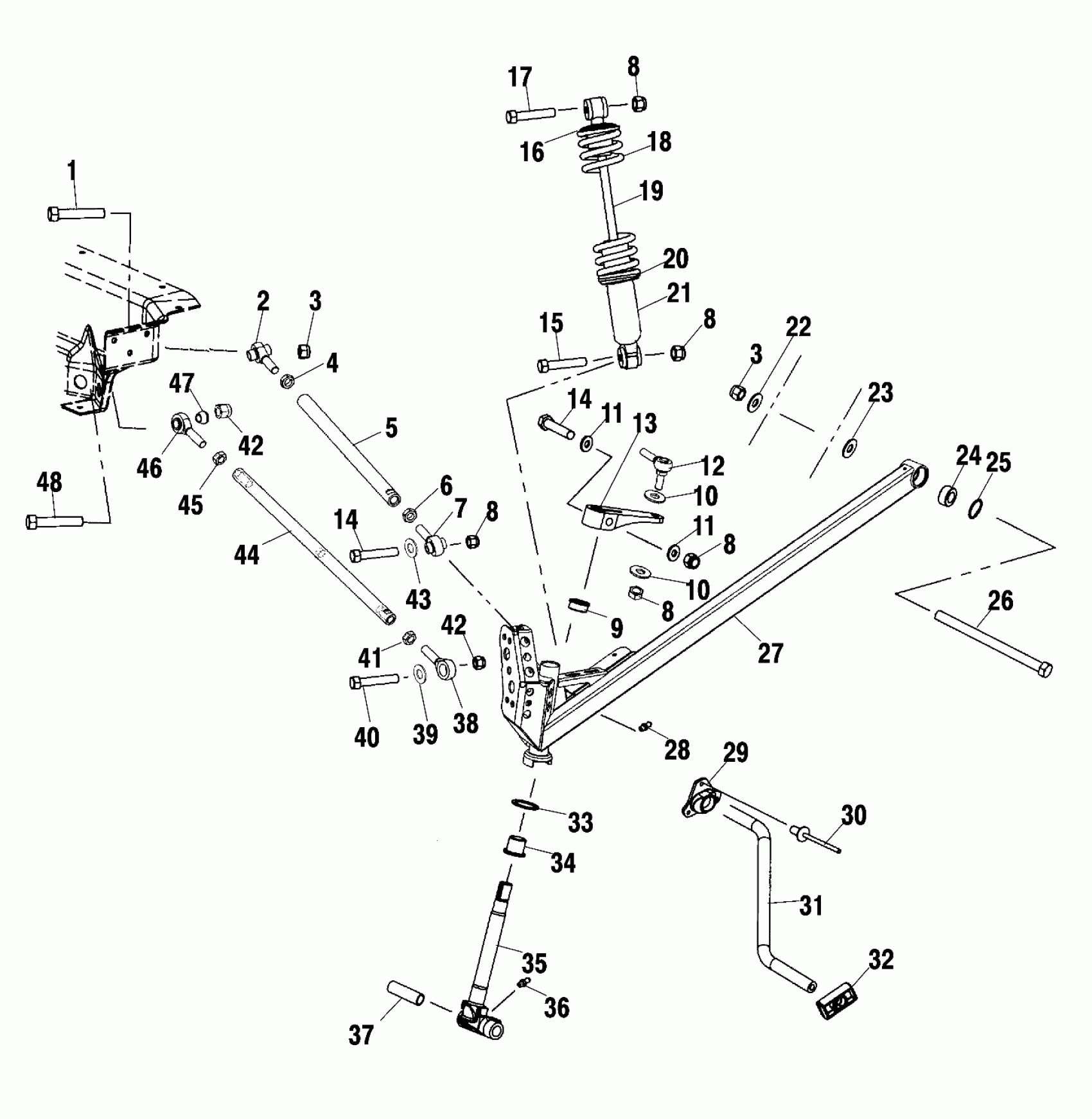

Polaris 600 RMK 136 BUILT AFTER 3/1/01 - S02NJ6ES FRONT SUSPENSION - S02NJ6ES (4969456945B05) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

Rod End, LH

7061081

Unavailable

3

Nut, Nylok

7547066

$1.59

3

Nut, Nylok

7547066

$1.59

4

Nut, Jam, LH

7547117

Unavailable

5

Rod, Radius, Upper

5133137

$104.99

6

Nut, Jam

7542520

$2.39

7

Rod End

7061061

$48.56

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

9

Bushing

3573909

$2.39

10

Washer, Flat

7555797

$3.99

10

Washer, Flat

7555797

$3.99

11

WSHR-.813X.406X.105-Y

7555832

$2.39

11

WSHR-.813X.406X.105-Y

7555832

$2.39

12

Rod End, RH

7061086

$48.56

13

Arm, Steering

5133060

$70.39

14

SCREW

7517583

$4.35

14

SCREW

7517583

$4.35

15

Screw

7515433

$1.59

16

Retainer, Spring, Slotted

5630580

Unavailable

17

Screw

7515415

$1.49

18

Spring, Compression

7041551-067

$74.99

19

Shock, IFS, Nitrex

7042107

Unavailable

20

Ring, Spring Preload

5431734

$52.60

21

RETAINER, SPRING BODY, THREADED

1500063

$44.51

22

WASHER, FLAT

7555820

$3.99

23

Cup, Mount, Trailing Arm

5132364

$20.22

24

Bearing, Spherical

7061042

$31.99

25

Ring, Retaining

7710437

$3.19

26

Screw

7512099

$19.99

27

Asm., Trailing Arm, Red, LH (Incl. 24,25)

1821201-293

$291.41

27

Asm., Trailing Arm, Red, RH (Incl. 24,25)

1821202-293

Unavailable

28

Fitting, Lubrication

7080433

$1.49

29

Bushing, Torsion Bar

5433814

$23.99

30

Rivet

7621452

$1.49

31

Bar, Torsion

5245217-067

Unavailable

32

Slide, Torsion Bar

5433885

Unavailable

33

Bushing

7556509

$1.59

34

BUSHING, FLANGED

3574208

$3.19

35

Shaft w/Stop, Spindle

6230225-067

$219.99

36

Fitting, Lubrication

7080306

$3.19

37

Bushing

5010158

$19.99

38

Rod End

7061052

$48.56

39

Washer

7556213

$3.17

40

Bolt

7517906

Unavailable

41

Nut, Jam

7542711

$2.39

42

Nut, Nylok

7547065

$3.99

42

Nut, Nylok

7547065

$3.99

43

WASHER

7556153

$1.99

44

Rod, Radius, Lower

5132953

Unavailable

45

Nut, Jam

7547028

$2.39

46

Rod End

7061087

$144.99

47

Bushing, Spacer

5132454

Unavailable

48

Bolt

7517981

$4.13
