ENGINE MOUNTING - S02NJ6ES (4969456945C03)

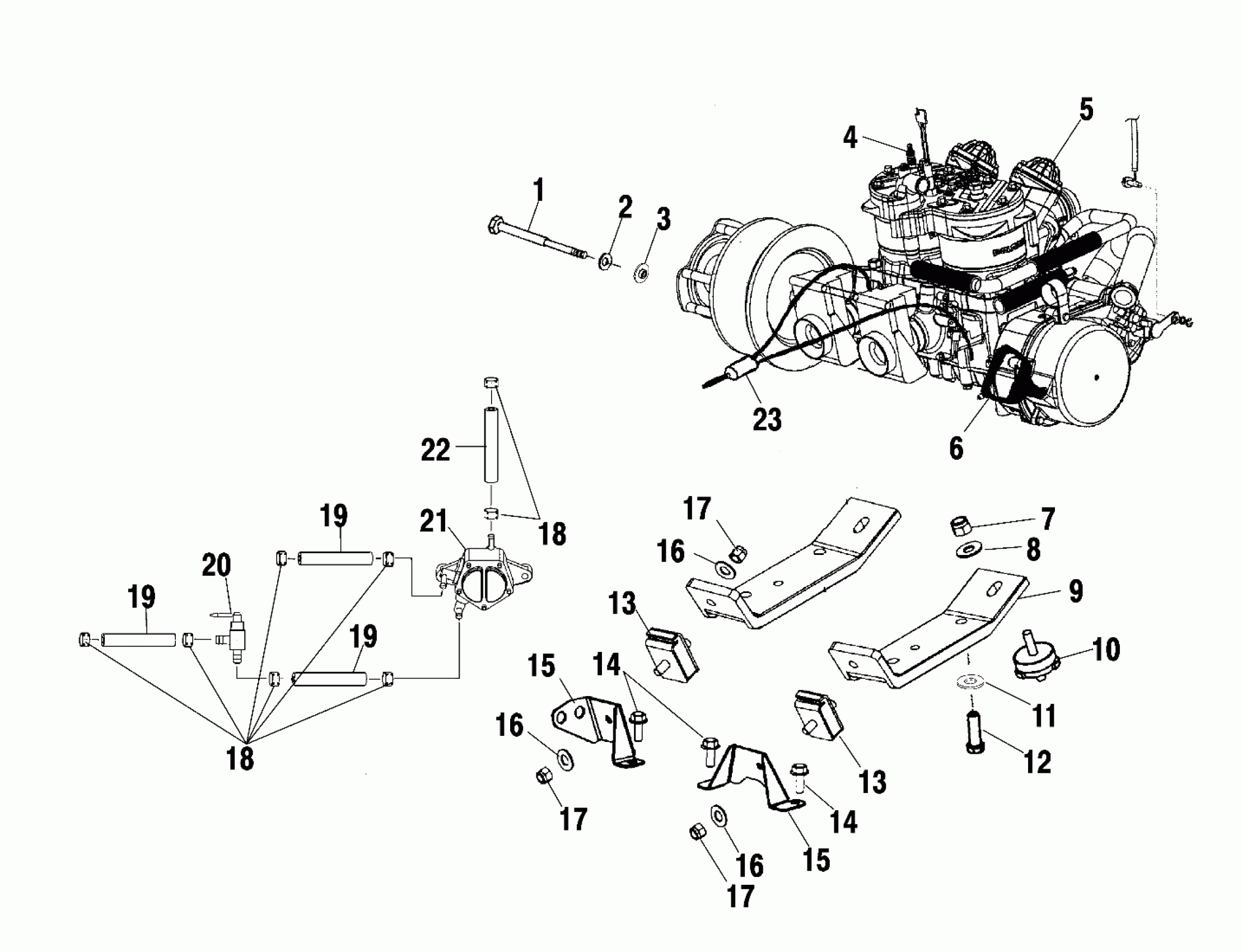

Polaris 600 RMK 136 BUILT AFTER 3/1/01 - S02NJ6ES ENGINE MOUNTING - S02NJ6ES (4969456945C03) Diagram
#
Description
Price
1
Screw
7517501
Unavailable
2
WASHER
7556003
$6.39
3
Washer
5131872
Unavailable
4
Spark Plug, RN57YCC, Champion
3070190
$3.99
5
Engine, Short Block (S2187-6044PL6E) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is re
2202032
Unavailable
6
Handle, Recoil
5431499-070
$15.48
7
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
8
Washer, Flat
7555893
$1.49
9
Strap, Engine Mount, LH
5244951
$32.95
9
Strap, Engine Mount, RH
5244952
$33.91
10
Mount, Engine
3021290
Unavailable
11
Washer, Spring Lock
7553101
$3.99
12
Screw
7512539
$3.99
13
Mount, Engine
3021206
$60.70
13
Mount, Engine
3021206
$60.70
14
Screw
7517854
$5.59
14
Screw
7517854
$5.59
15
Bracket, Engine Mount, RH
5245044
Unavailable
15
Bracket, Engine Mount, LH
1013397
$24.27
15
Bracket, Engine Mount, RH
5245044
Unavailable
15
Bracket, Engine Mount, LH
1013397
$24.27
16
Washer, Flat
7555806
$1.49
16
Washer, Flat
7555806
$1.49
16
Washer, Flat
7555806
$1.49
17
NUT, FLEXLOC
7547008
$6.39
17
NUT, FLEXLOC
7547008
$6.39
17
NUT, FLEXLOC
7547008
$6.39
18
HOSE CLAMP, RED
7080003
$1.49
18
HOSE CLAMP, RED
7080003
$1.49
19
Line, Fuel
8350017-600
Unavailable
19
Line, Fuel
8350017-600
Unavailable
19
Line, Fuel
8350017-600
Unavailable
20
Valve, Fuel
7052268
Unavailable
21
Pump, Fuel
2520257
$99.99
22
Line, Fuel
8450040-600
Unavailable
23
Cable, Throttle
7080867
$36.79
