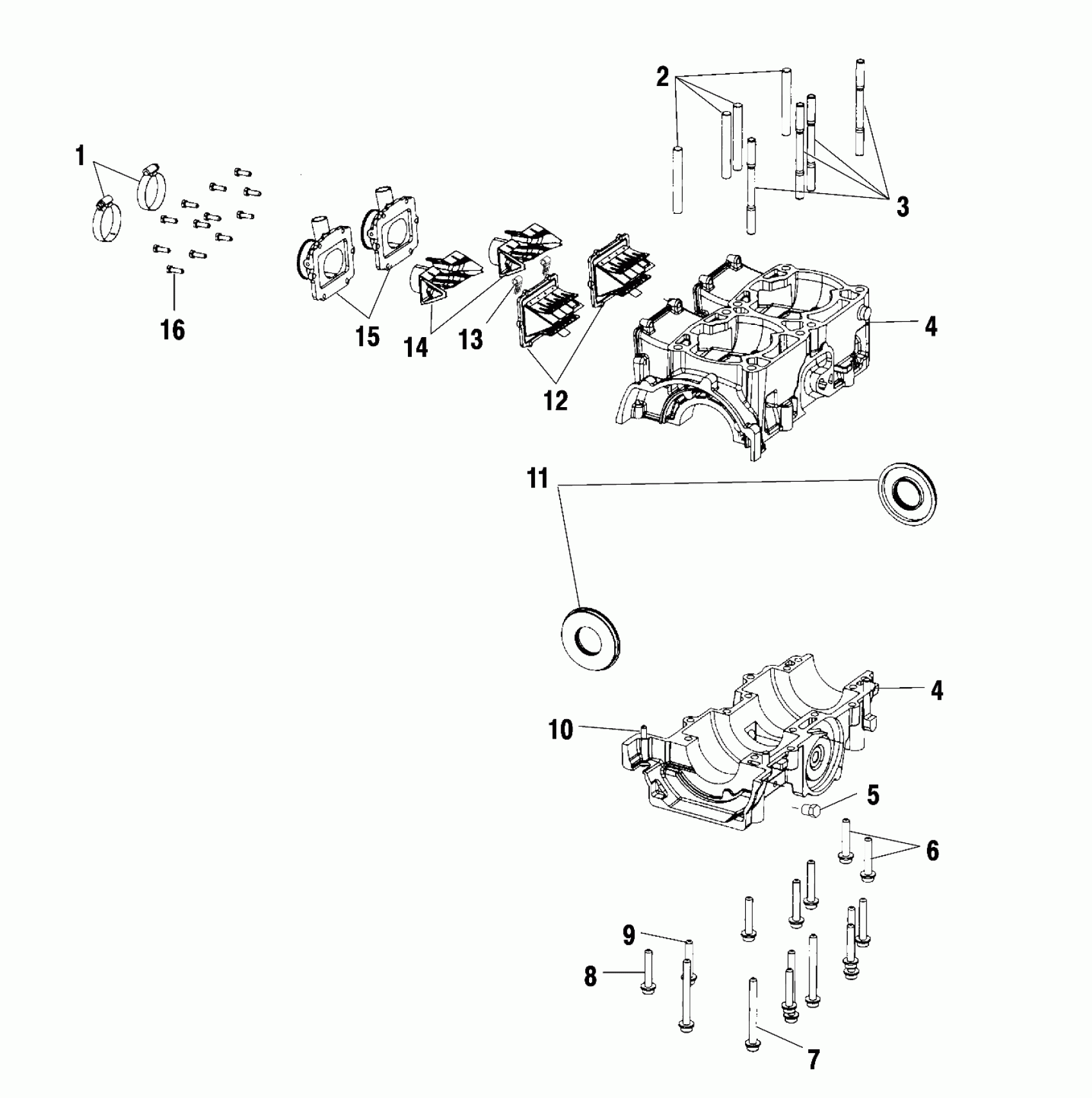

Polaris 600 RMK 136 BUILT AFTER 3/1/01 - S02NJ6ES CRANKCASE - S02NJ6ES (4969456945C04) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

Stud

5132196

$20.63

3

Stud

5132197

$21.27

4

Kit, Crankcase (Incl. 2,3,5-10)

2201931

$444.99

4

Kit, Crankcase (Incl. 2,3,5-10)

2201931

$444.99

5

Plug

7051529

$15.99

6

Screw

7517785

$9.59

7

Screw

7517784

$8.79

8

SCREW

7516825

$5.59

9

Screw

7517786

$6.39

10

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

11

Seal

5411394

$29.99

12

Asm., Reed Valve

1201825

$134.99

13

Clamp, Hose

7080880

$5.59

14

Stuffer, Reed

5433151

Unavailable

15

Adaptor, Carb

1253423

Unavailable

16

SCREW

7516822

$2.39
