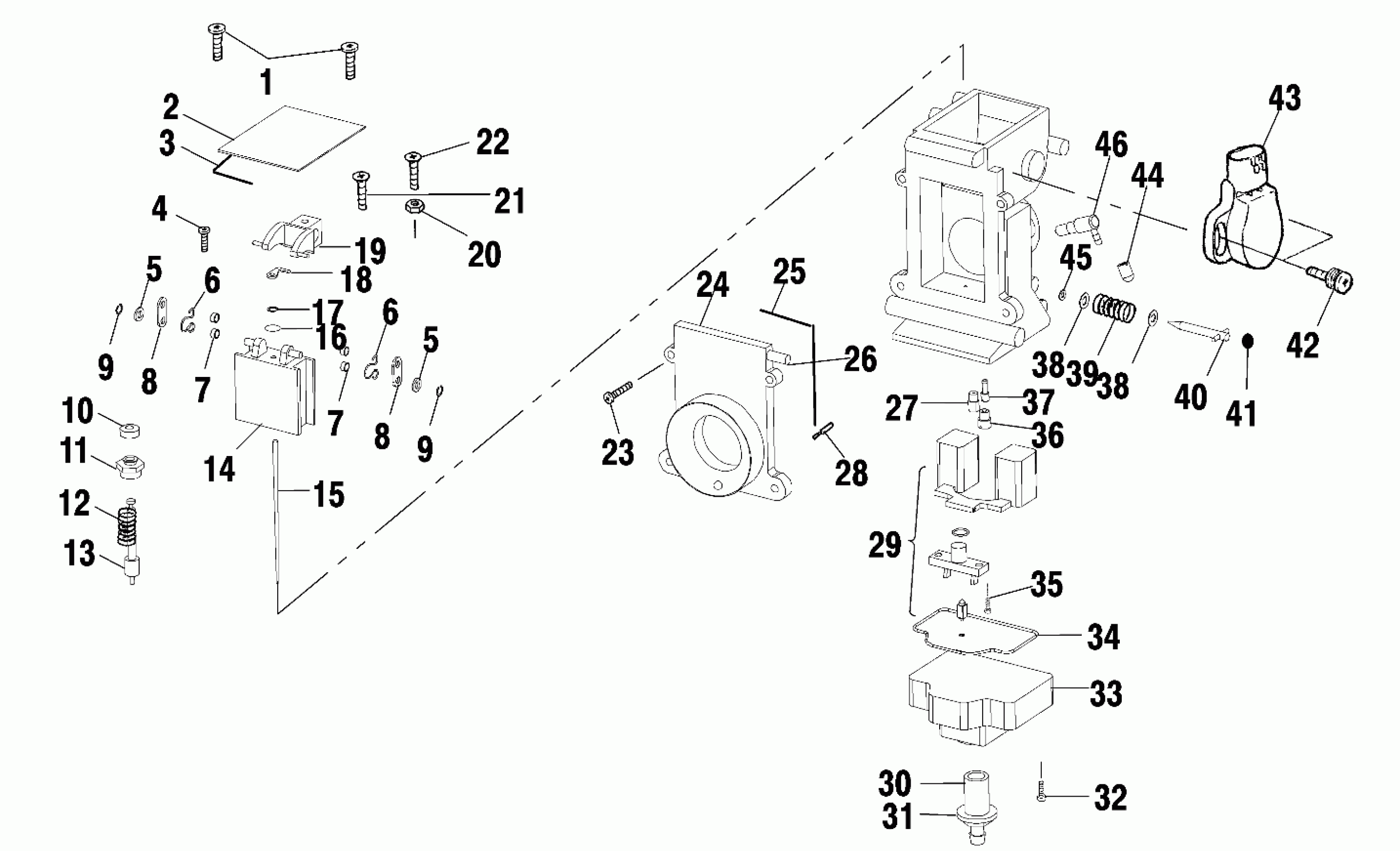

Polaris 600 RMK 136 BUILT AFTER 3/1/01 - S02NJ6ES CARBURETOR - S02NJ6ES (4969456945C07) Diagram

#

Description
Price

-

Asm., Carburetor

1253420

$619.99

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Packing

3130846

$4.79

5

Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Plunger

3130828

$32.37

14

Valve, Piston, Notched [1.5]

3131216

Unavailable

15

Needle, Jet (9DGI01-60)

3131377

Unavailable

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

Lever, LH

3130855

$64.75

19

Lever, RH

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw, LH

3130854

$3.19

22

Screw, RH

3130850

$4.79

23

Screw

3130825

$3.19

24

Funnel, Long

3131335

$53.59

25

O-Ring, Air Funnel, Long

3131356

$16.17

26

Pin

3130808

Unavailable

27

Jet, Main [310]

3130134

$7.27

28

Screw, Air

3131336

Unavailable

29

Float

3130859

$94.99

30

Bolt, Drain

3131248

Unavailable

31

O-Ring

3130863

$2.41

32

Screw

3130824

$3.19

33

Body, Float

3130858

$119.99

34

O-Ring

3130861

$12.13

35

Screw

3130860

$8.79

36

Jet, Pilot [45]

3130068

$8.89

37

Jet, Starter [140]

3130768

$8.89

38

Washer

3130837

$3.19

38

Washer

3130837

$3.19

39

SPRING

3130836

$7.27

40

Adjuster

3130987

$20.22

41

Cap

3130986

$9.70

42

Screw (MAG Side)

3131010

$4.79

43

Asm., Sensor (MAG Side)

3131009

$259.03

44

CAP

3130479

$14.56

45

Packing

3130835

$2.41

46

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
