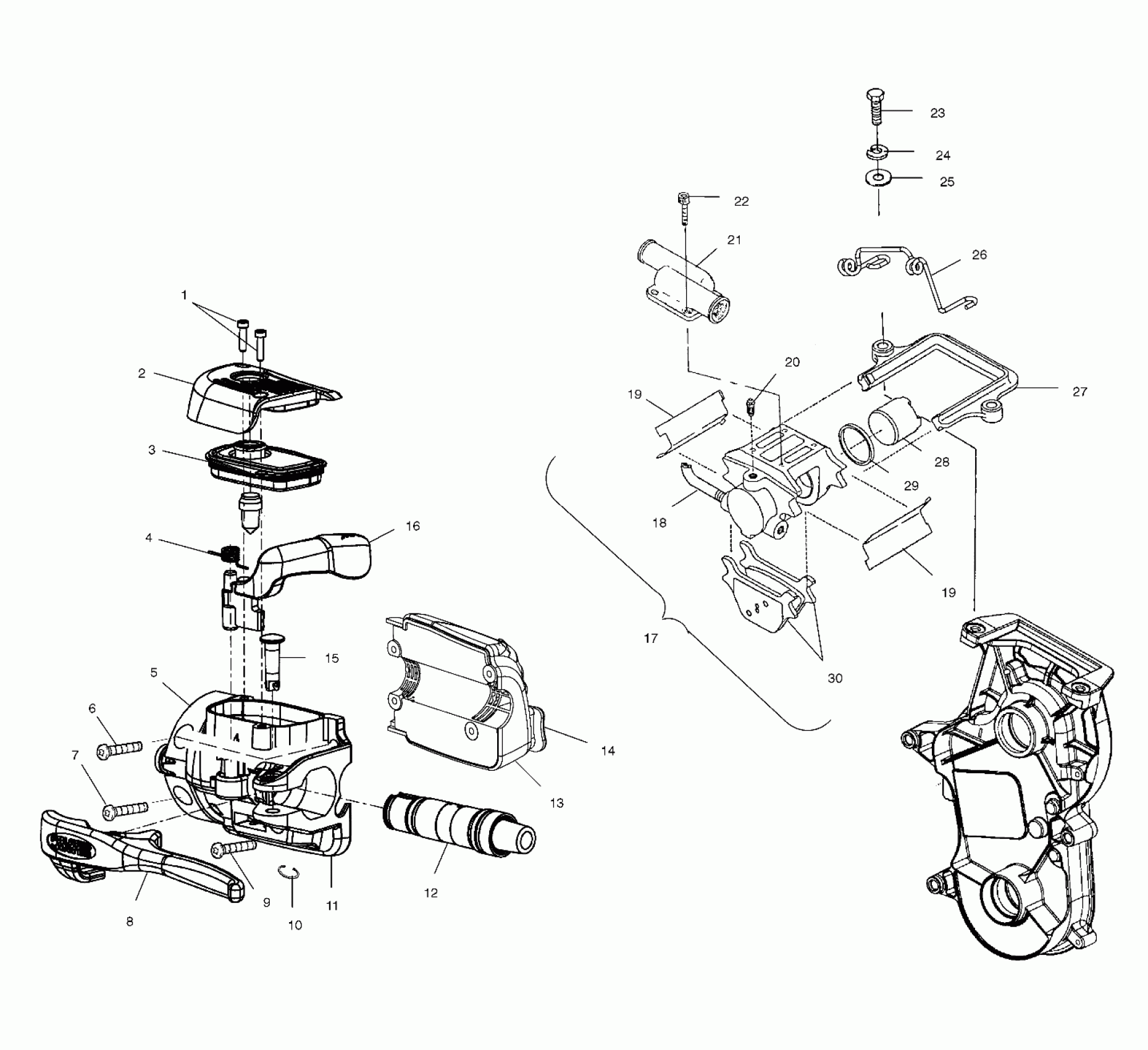

Polaris 600 RMK 136 BUILT AFTER 3/1/01 - S02NJ6ES BRAKE - S02NJ6ES (4969456945A13) Diagram

#

Description
Price

1

Kit, Cover Screw

2201254

$19.99

2

Kit, Cover Assembly (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

Kit, Park Lever Spring

2201250

$24.27

5

Asm., Master Cylinder (Incl. 2,4,8,11,12,15)

2010209

$304.98

6

Screw

7517441

$2.39

7

Screw

7512078

$1.49

8

Kit, Lever

2201943

$52.60

9

Screw

7517566

$3.99

10

Kit, Snap Ring

2201945

$8.79

11

Switch, Brake Light

4010157

Unavailable

11

Kit, Body, Pivot Pin, Snapping

2201948

$304.98

12

Kit, Cartridge Subassembly

2201944

Unavailable

13

Asm., Control, LH

2010167

$93.08

14

Button, Switch, HI/LO, LH Control

5433291

Unavailable

15

Kit, Pivot Pin

2201946

$24.27

16

Kit, Park Lever and Spring (Incl. 4)

2201251

$44.51

17

Asm., Brake Caliper (Incl. 28,29,30)

1910344

Unavailable

18

Line, Brake

1910546

Unavailable

19

Kit, Clip Spring (Qty. 2)

2200467

Unavailable

19

Kit, Clip Spring (Qty. 2)

2200467

Unavailable

20

Inlet

1930735

$9.11

21

Kit, Cooler/Water

1930728

$62.39

21

Kit, Gasket, Brake Cooler

2201024

$7.99

22

Screw (Pkg. of 4)

1930729

$29.49

23

Bolt

7515521

$3.99

24

Washer, Spring Lock

7552603

$1.49

25

Washer, Wrought

7555801

$3.99

26

Guide, Rope

5244413

Unavailable

27

Bracket, Caliper

1930733

Unavailable

28

Piston and Seal (Incl. 29)

1930734

Unavailable

29

Kit, Seal

2200466

$32.37

30

Kit, Heavy Duty Brake Pad, Type 81 (Incl. 19)

2201430

Unavailable
