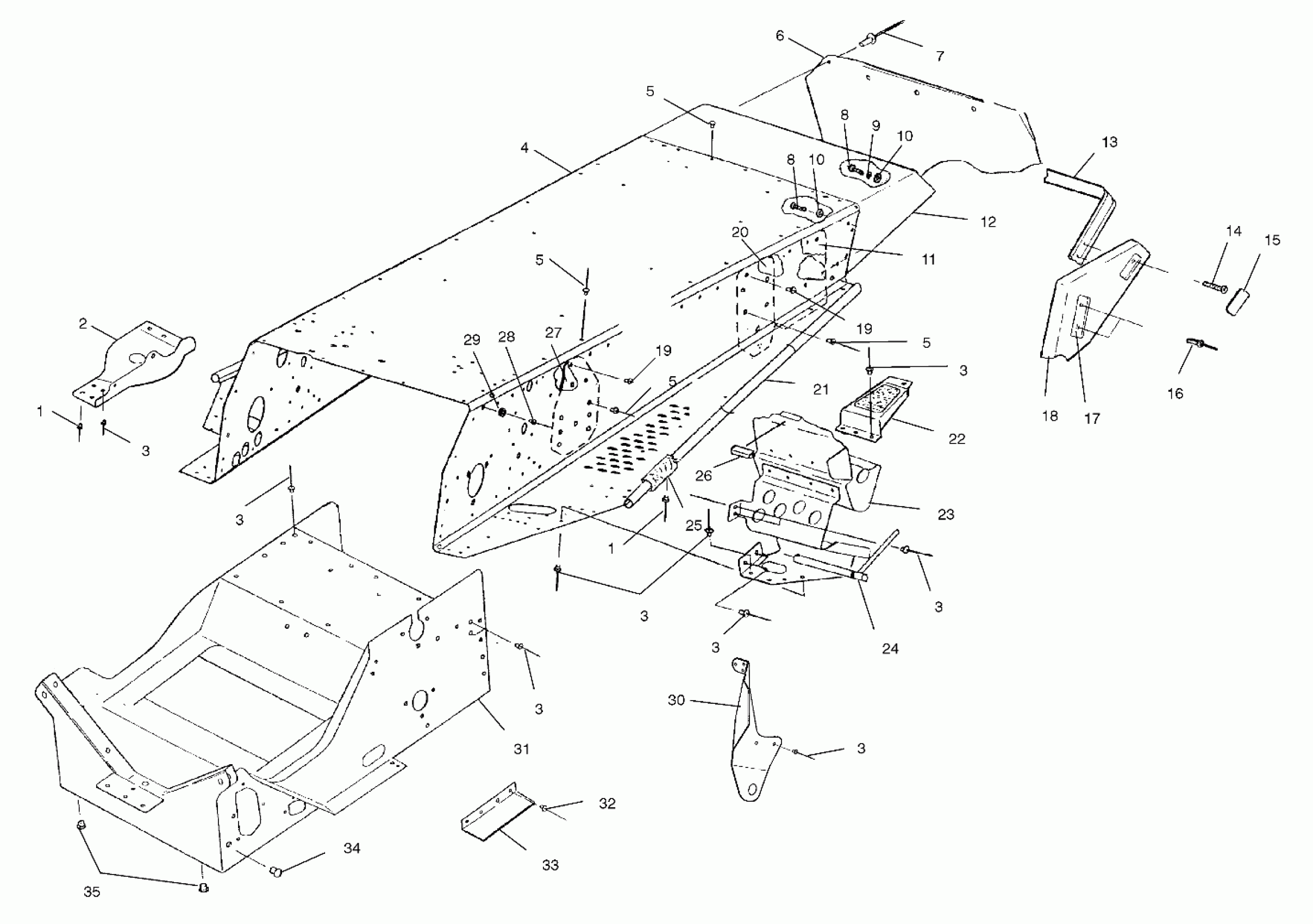

Polaris 600 RMK - 099SR6DS TUNNEL - E99SS6DU (4948484848a007) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD,C/C.SUMP,TUNNEL Substituted by 5243419

5241915

$20.48

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

TUNNEL ASM,X10,136 (RMK) (Incl. 12,20,27)

1012746-067

Unavailable

4

TUNNEL,X10,136EURO,BLK (Euro) (Incl. 12,20,27)

1012816-067

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

6

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

7

POP RIVET(50)

7621418

$1.49

8

BOLT(10)

7512240

$3.99

8

BOLT(10)

7512240

$3.99

9

LOCK WASHER(10)

7552801

$1.59

10

WASHER(10)

7558301

$1.49

10

WASHER(10)

7558301

$1.49

11

BRACE,LH,TUNNEL,RMK,BLK. (Euro)

5242568-067

Unavailable

11

BRACE,RH,TUNNEL,RMK,BLK. (Euro)

5242569-067

Unavailable

12

PANEL,TUNNEL BACK

1012580-067

Unavailable

13

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

14

SCREW(10)

7512084

$1.49

15

REFLECTOR ASM,RED (RMK)

2670133

$5.75

16

RIVET,(50)

7621515

$3.99

17

SUPPORT,HAND-HOLD

5131546

$18.23

18

COVER,LH,BUMPER,W/HANDLE

5432562

$28.15

18

COVER,RH,BUMPER,W/HANDLE

5432563

$28.15

19

RIVET,SEMI-TUBE,(50)

7661841

$1.49

19

RIVET,SEMI-TUBE,(50)

7661841

$1.49

20

BRKT,LH,R.SUSP.

1012578-067

$82.39

20

BRKT,RH,R.SUSP.

1012579-067

$62.39

21

TUBE,TUNNEL SPT. (Euro)

5224787

$20.48

22

PAD,LH FOOT SAFETY (Euro)

5830007

$7.89

22

PAD,RH FOOT SAFETY (Euro)

5830008

$4.92

22

FOOTREST,LH R,BLK. (Euro)

5220893-067

Unavailable

22

FOOTREST,RH R,BLK. (Euro)

5220894-067

$32.15

23

FOOTREST ASM,LH,BLK.

1012681

Unavailable

23

FOOTREST ASM,RH,BLK.

1012682

$95.24

24

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

24

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

25

GRIP-TUNNEL ROLL,BLK (RMK)

5243112-067

Unavailable

26

EXTRUSION,CLUTCHGUARD

5521238

$6.46

27

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

27

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

28

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

29

SNAP-MALE(10)

7080227

Unavailable

30

BRACE,LH,F'REST/TRLG ARM,BLK

5242477-067

Unavailable

30

BRACE,RH,F'REST/TRLG ARM,BLK

5242478-067

Unavailable

31

BULKHEAD,CRC,HYB,BLK. Substituted by 1013102-067

1012665-067

Unavailable

32

RIVET(50)

7621452

$1.49

33

GUARD,ADAPTER GUIDE

5222857

$12.94

34

PLUG, HOLE(10)

7080416

$5.65

35

PLUG-HOLE

7080398

$4.84
