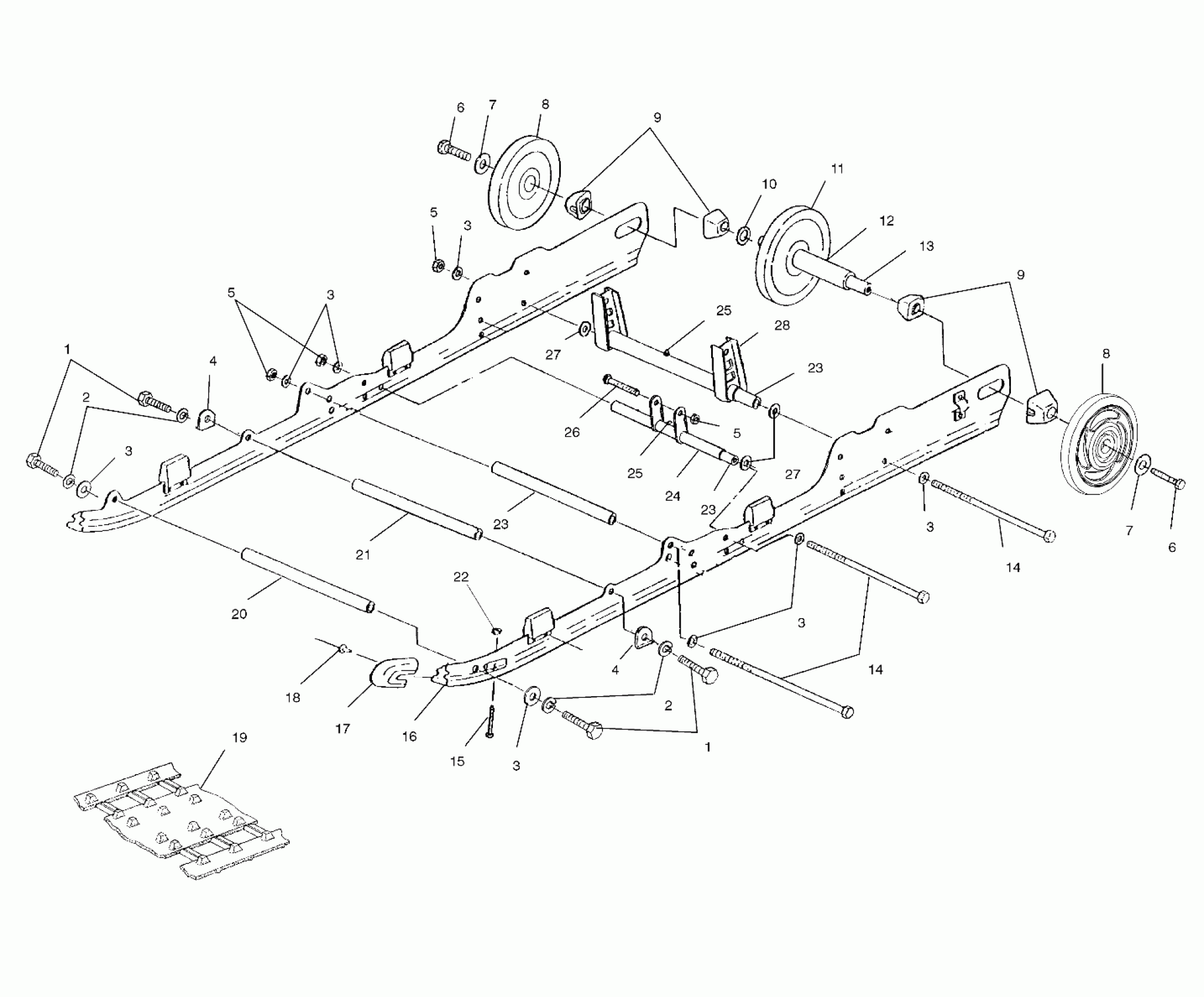

Polaris 600 RMK - 099SR6DS SUSPENSION - E99SS6DU (4948484848c001) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

6

BOLT(10)

7515526

$1.19

6

BOLT(10)

7515526

$1.19

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

8

WHEEL,IDLER,SCRL,VC.

1594083-198

$31.35

8

WHEEL,IDLER,SCRL,VC.

1594083-198

$31.35

9

SPACER-IDLER

5432535

$11.99

9

SPACER-IDLER

5432535

$11.99

10

BUSHING(10)

7555918

$1.59

11

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

12

SPACER-IDLER, LONG

5333285

$11.99

13

SHAFT,IDLER

5020744

$59.99

14

Screw

7517353

Unavailable

14

Screw

7517353

Unavailable

15

Screw (See Footnote) (See Rail Mounting Pg.C2, Ref. 21)

-------

Unavailable

16

SLIDER,WHI.,(2)

5521452

$40.46

17

Cover, Rail Tip (See Footnote) (See Rail Mounting Pg. C2, Ref. 22)

-------

Unavailable

18

Rivet, Pop (See Footnote) (See Rail Mounting Pg. C2, Ref. 23)

-------

Unavailable

19

TRACK,136"X1.75,CAMO Substituted by 5411519 (RMK 099SR6DS)

5411237

Unavailable

19

TRACK,136"X1.25,CAMO Substituted by 5411955 (Euro E99SS6DU)

5411520

Unavailable

19

Clip, Slide

5241473

Unavailable

19

Clip, Guide

5241474

Unavailable

19

TRACK,136X15X2,DEEPLUG (RMK 099SR6DSA)

5411428

Unavailable

20

SHAFT,PIVOT ARM

5020723

$29.99

21

SHAFT,PIVOT ARM

5020724

$29.99

22

Nut (See Footnote) (See Rail Mounting Pg. C2, Ref. 24)

-------

Unavailable

23

SHAFT

5333404

$24.27

23

SHAFT

5333404

$24.27

23

SHAFT

5333404

$24.27

24

ARM,SHOCK PIVOT

1541001-067

$43.65

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

26

BOLT(10)

7515472

$2.39

27

WASHER(10)

7555893

$1.49

27

WASHER(10)

7555893

$1.49

28

ARM,REAR PIVOT

1541241-067

$40.79
