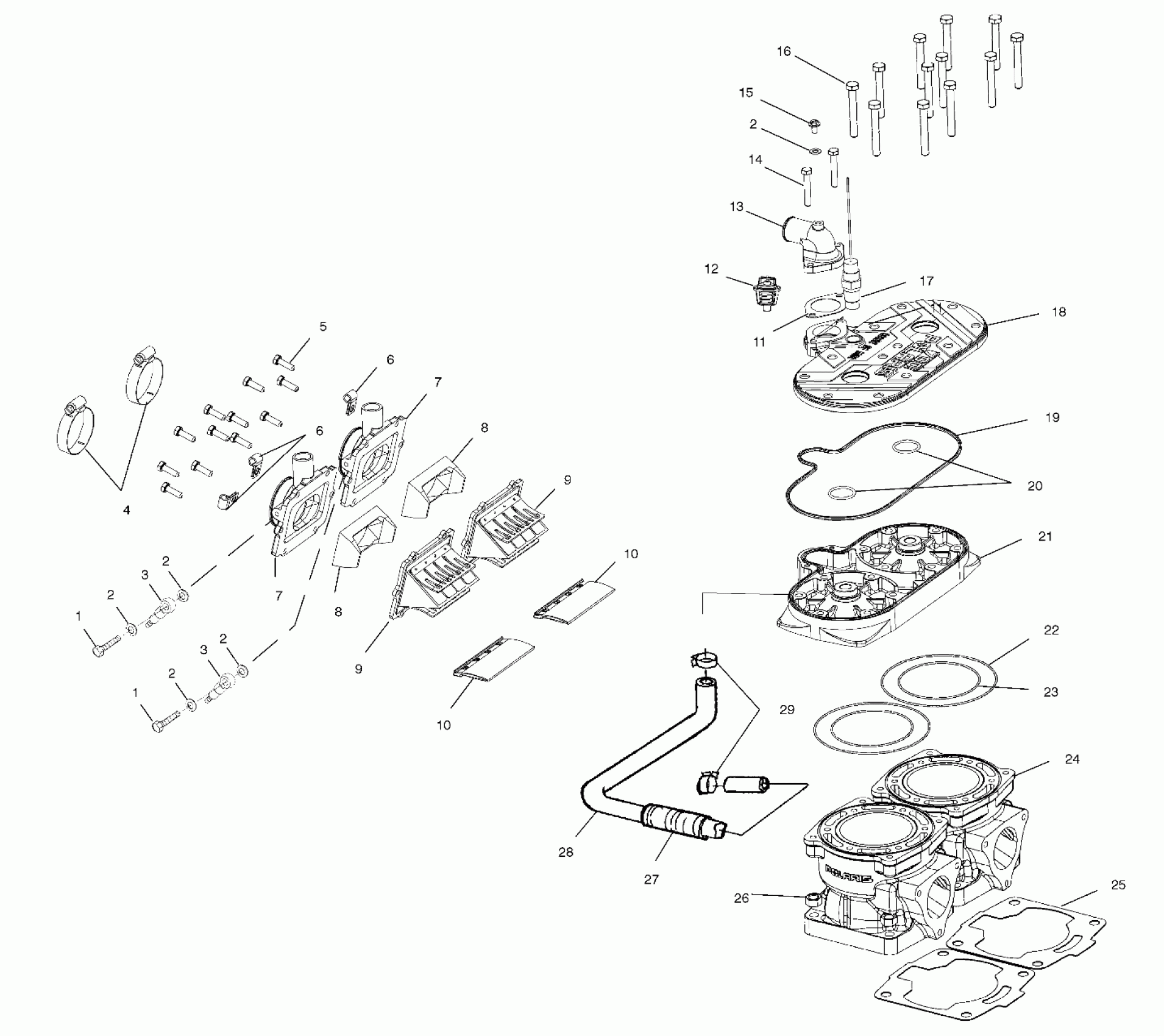

Polaris 600 RMK - 099SR6DS CYLINDER - E99SS6DU (4948484848c012) Diagram

#

Description
Price

1

SCREW

7517578

Unavailable

1

SCREW

7517578

Unavailable

2

WASHER,FLAT,(10)

7555998

$1.49

2

WASHER,FLAT,(10)

7555998

$1.49

2

WASHER,FLAT,(10)

7555998

$1.49

2

WASHER,FLAT,(10)

7555998

$1.49

2

WASHER,FLAT,(10)

7555998

$1.49

3

VALVE,CHECK,OIL PUMP

7052160

Unavailable

3

VALVE,CHECK,OIL PUMP

7052160

Unavailable

4

CLAMP,HOSE,SS,(10)

7080681

$9.59

5

SCREW,(10)

7517398

$3.19

6

CLAMP,HOSE(10)

7080683

$2.39

6

CLAMP,HOSE(10)

7080683

$2.39

7

ADAPTOR-CARB,40MM,OIL INJ,SNO

1253259

Unavailable

7

ADAPTOR-CARB,40MM,OIL INJ,SNO

1253259

Unavailable

8

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

8

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

9

REEDVALVE ASM,7.5MM,STOP Substituted by 1201840

1201743

Unavailable

9

REEDVALVE ASM,7.5MM,STOP Substituted by 1201840

1201743

Unavailable

10

STUFFER

5411251

Unavailable

10

STUFFER

5411251

Unavailable

11

O-RING,LIPSEAL

5411521

$24.19

12

THERMOSTAT 60�C

7052224

$48.56

13

COVER-THERMOSTAT,M-6,BLEED Substituted by 5630992

5630910

Unavailable

14

SCREW

7516818

$5.59

15

SCREW (10)

7517565

Unavailable

16

SCREW,M8X1.25X60(10)

7517534

$4.79

17

SENSOR,TEMP,93 DEG.C.

4110254

Unavailable

18

COVER,HEAD,74.5MM(TWNSNO)FR.RED

5630890-093

Unavailable

19

SEAL,RUBBER,MLDD,HEAD

5411294

Unavailable

20

O-RING(10)

5410917

$1.49

21

HEAD,CYL,74.5,(SNO)

3021021

$168.70

22

O-Ring

5410931

Unavailable

23

O-RING

5411044

$28.32

24

CYLINDER,74.5 MM,SNO

3021008

Unavailable

25

GASKET,CYL.BASE

5811538

Unavailable

26

NUT(10)

7547013

$1.99

27

CONDUIT,FLEX(.75"ID)

5521398-96

Unavailable

28

HOSE,BYPASS

5411536

Unavailable

29

CLAMP-3 TONG .810-.970(10)

7080810

$2.39
