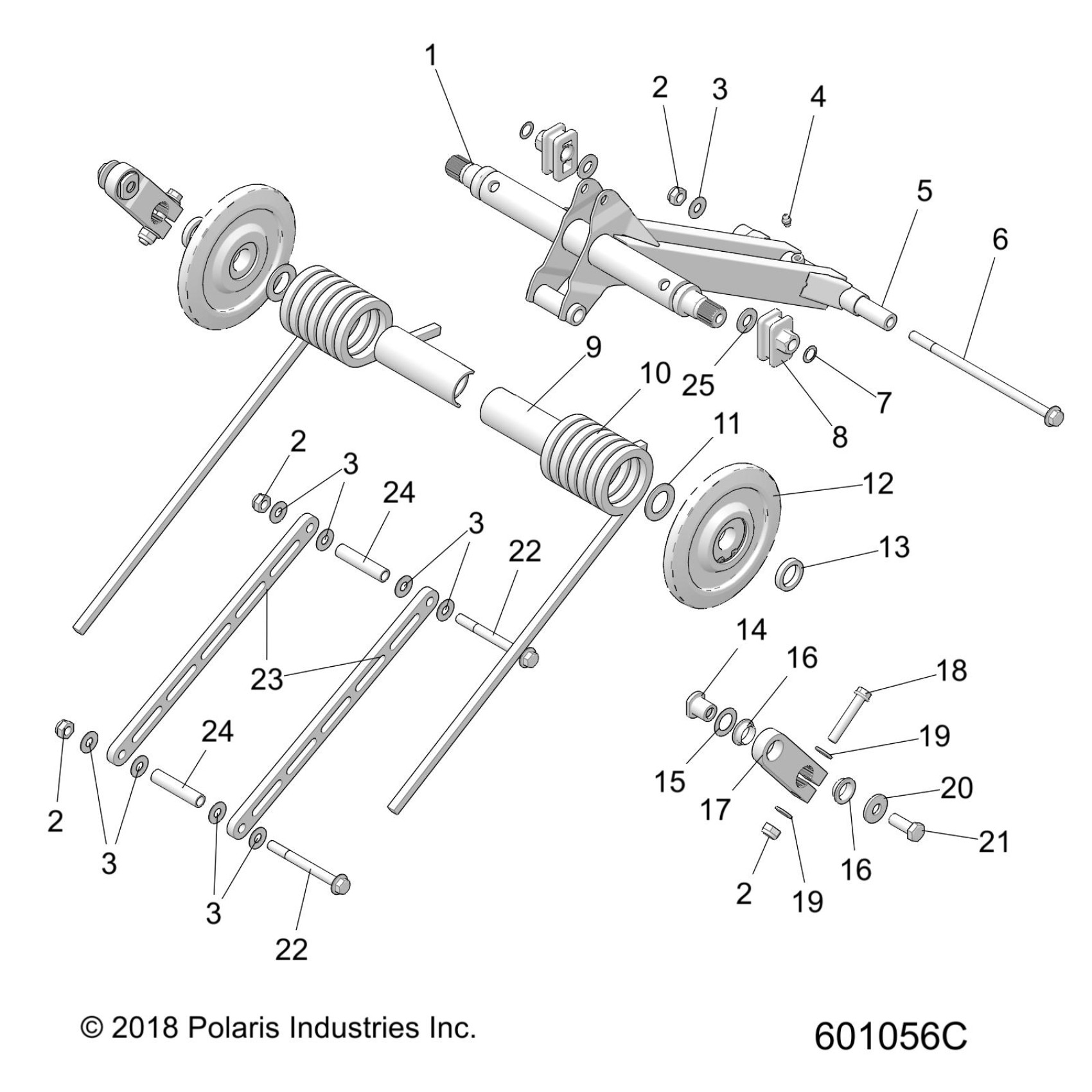

Polaris 600 RACER (R01) - S26MDX6DSA SUSPENSION, TORQUE ARM, REAR - S26MDX6DSA (C601056) Diagram

#

Description
Price

1

ARM-TORQUE, REAR, RACE BLACK

1544351-329

Unavailable

2

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

2

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

2

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

2

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

4

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

SHAFT-18.8X10.4X179.1 ANODIZE

5341696

Unavailable

6

SCR-HXFL-M10X1.25X235 10.9 ZOD

7519086

$27.99

7

CLIP-PUSH ON

7080394

$2.39

8

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

9

SLEEVE-TORSION SPRING

5456016

Unavailable

10

SPRING-TORSION TRAP32.0/110� LH BLK OPTION

7045225-329

Unavailable

10

SPRING-TORSION TRAP32.0/110� RH BLK OPTION

7045226-329

Unavailable

10

SPRG-TORS TRAP 34.0/112 LH BLK STANDARD

7046141-329

Unavailable

10

SPRG-TORS TRAP 34.0/112 RH BLK STANDARD

7046142-329

Unavailable

11

WASHER, THRUST

7555787

Unavailable

12

RET.RING-TRUARC

7718407

$4.79

12

BEARING

3514303

$11.99

12

ASM., CARRIER WHEEL

1590343

$72.84

13

SPACER, WHEEL

5134706

$15.99

14

SHAFT-ARM M12

5142775

Unavailable

15

Washer, Thrust

7555945

$7.99

16

BUSHING, ARM

3514488

$19.99

16

BUSHING, ARM

3514488

$19.99

17

ASM-ARM 2.75 PIN RR

1544440

Unavailable

18

SCR-M10X1.25X55-HX,CL 10.9

7521087

Unavailable

19

WASHER-FL.390X.750X.065-Y

7556188

$3.19

19

WASHER-FL.390X.750X.065-Y

7556188

$3.19

20

WASHER-SPRING 12.5X31.75X3.175

7556874

$6.39

21

SCR-M12X1.75X30,CL 10.9

7521085

$11.99

22

SCR-HXFL-M10X1.25X100 10.9 ZOD

7519284

$3.99

22

SCR-HXFL-M10X1.25X100 10.9 ZOD

7519284

$3.99

23

ROD-SHOCK RACE

5143239

Unavailable

24

BUSHING-PULLROD

5342228

$19.99

24

BUSHING-PULLROD

5342228

$19.99
