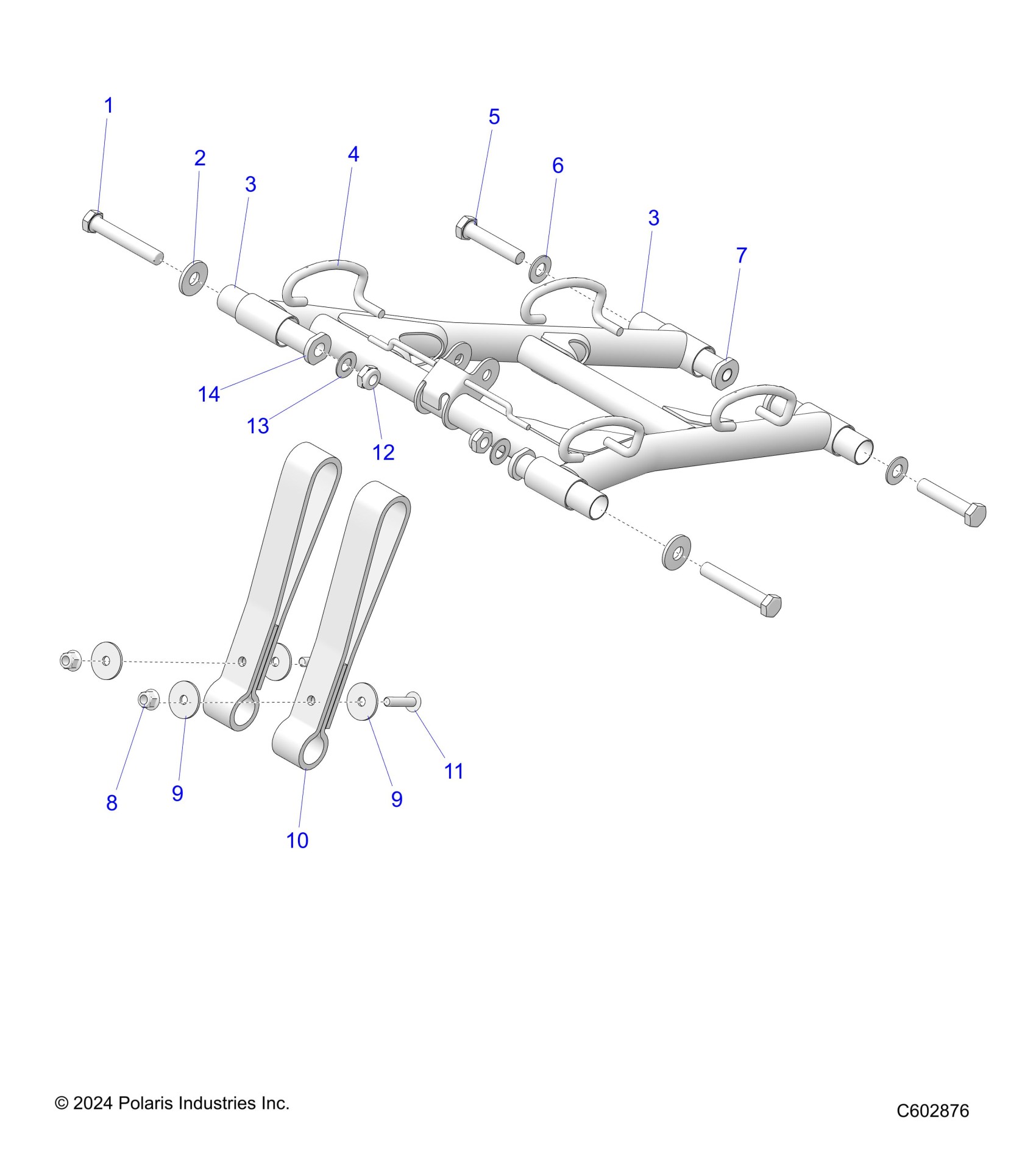

Polaris 600 RACER (R01) - S26MDX6DSA SUSPENSION, TORQUE ARM, FRONT - S26MDX6DSA (C602876) Diagram

#

Description
Price

1

SCR-M12X1.5X75,CL 10.9

7521086

$7.99

2

WASHER-SPRING 12.5X31.75X3.175

7556874

$6.39

3

BUSHING-PIVOT

5438875

$11.99

3

BUSHING-PIVOT

5438875

$11.99

4

ASM-FTA HD BLK

1545351-329

$354.99

5

SCR-HH-M12X1.5X60 10.9 ZFL

7521211

$24.99

6

WSHR-M12X25X1.6 THRU HARD ZOD

7556994

$3.19

7

SHAFT-PIVOT

5142725

$64.99

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

WASHER-SPRING,CON 5/16X.090 Z

7571618

$6.39

9

WASHER-SPRING,CON 5/16X.090 Z

7571618

$6.39

10

STRAP-LIMITER RACE

5417676

$32.37

11

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

12

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$3.19

13

WASHER-THRUST, 12.10X24X1.07

7555908

$3.17

14

SHAFT-PIVOT M12X20X53

5142772

$34.99
