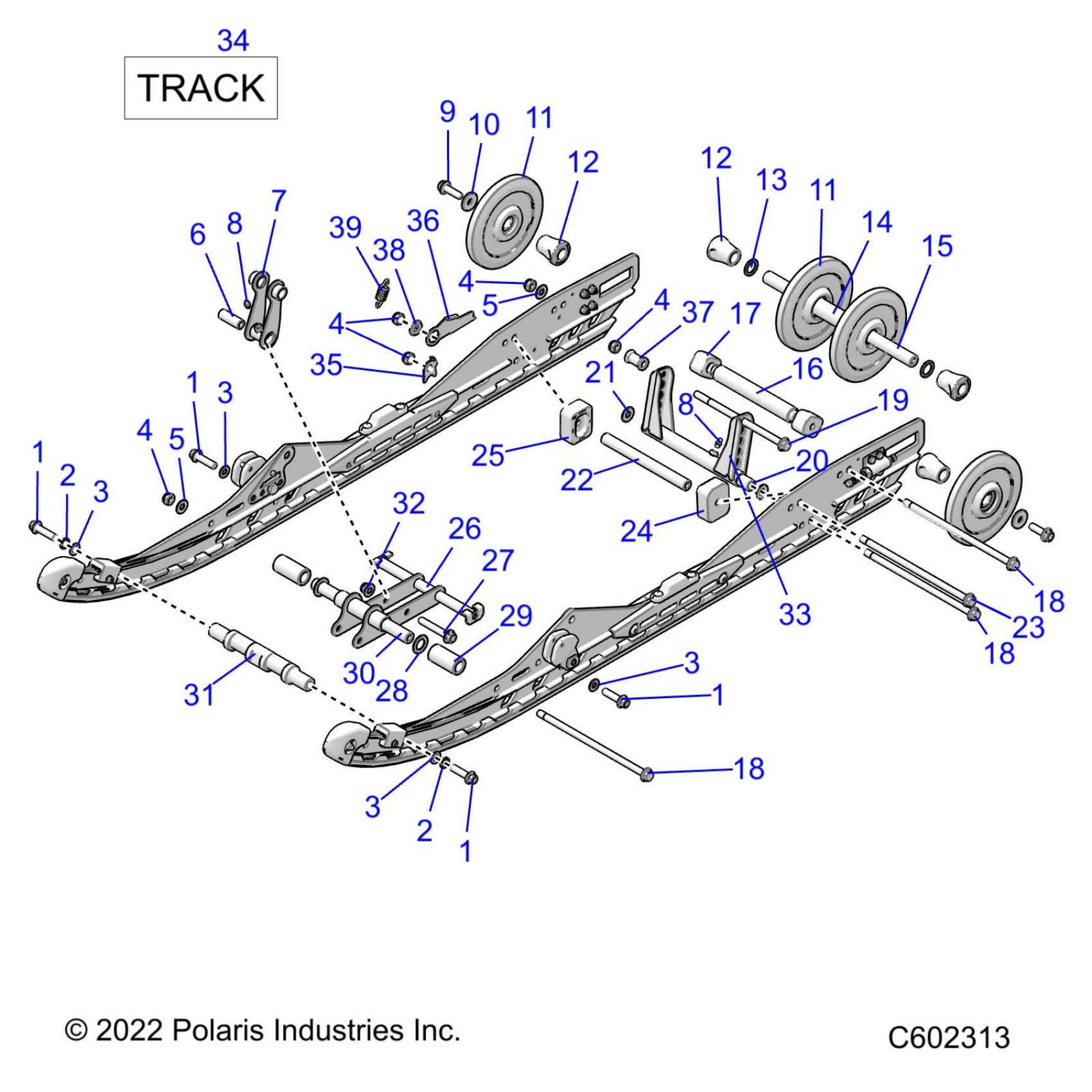

Polaris 600 RACER (R01) - S26MDX6DSA SUSPENSION, REAR AND TRACK - S26MDX6DSA (C602313) Diagram

#

Description
Price

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

2

WSHR-M10,SPRING LOC ZPC

7556558

$2.39

2

WSHR-M10,SPRING LOC ZPC

7556558

$2.39

3

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

3

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

3

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

3

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

4

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

4

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

4

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

4

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

5

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

5

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

6

BUSHING-M10X15.6X43.6

5142773

$29.99

7

SHOCK PIVOT ARM 3.50 BLK

1544350-329

$124.99

8

FITTING-LUBRICATION 1/4-28

7080424

$4.79

8

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

10

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

11

ASM-WHEEL 6.38 OD PLAIN,RACE

1590426

$64.75

11

ASM-WHEEL 6.38 OD PLAIN,RACE

1590426

$64.75

12

SPACER-IDLER BILLET

5139176

$42.84

12

SPACER-IDLER BILLET

5139176

$42.84

13

BUSHING

7555918

$1.59

14

SPACER-IDLER, CENTER

5333283

$19.99

15

SHAFT-IDLER M10X1.5THDX336 LG

5142727

$114.99

16

SHAFT-COUPLER BLOCK RACE HD

5143009

$66.65

17

BUMPER-PIVOT ALUM

5142728

$39.99

18

SCR-HXFL-M10X1.25X245 10.9 ZOD

7521213

$20.22

18

SCR-HXFL-M10X1.25X245 10.9 ZOD

7521213

$20.22

18

SCR-HXFL-M10X1.25X245 10.9 ZOD

7521213

$20.22

19

SCR-HXFL-M10X1.25X235 10.9 ZOD

7519086

$27.99

20

SHAFT-CROSS RMK

5137418

$32.37

21

WASHER-7/16 SAE,STF,THRU-HRD-Y

7556212

$8.79

22

SHAFT-COUPLER BLOCK RACE

5142774

$44.99

23

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

24

BUMPER-PIVOT LH

5144850

$29.99

25

BUMPER-PIVOT RH

5144851

$29.99

26

SHOCK MNT BLK

1544366-329

$105.22

27

SCR-M10X1.5X65 8.8 HX/FL ZOD

7518960

$3.19

28

BUSHING-.781 X1.250X.060-Y

7556301

$3.19

29

SPACER-BOGIE WHEEL PRESS

5135352

$23.99

30

SHAFT-H-BRKT CC AL

5140492

$43.56

31

SFT-M10X1.5IDX17.47ODX220.1 LG

5143211

$84.99

32

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

33

REAR PIVOT ARM 4.0 BLK

1544368-329

$224.99

34

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

34

CLIP-TRACK, FLAT

5251273

Unavailable

34

TRACK-SNOW CROSS 136X15X1.75

5455727

$1,178.99

35

MNT-HOLE SHOT SPRING

5272500

$28.32

36

ARM-HOLE SHOT

5272499

$32.37

37

SPACER-HOLE SHOT PIVOT

5144389

$19.99

38

BUSHING-HOLE SHOT PIVOT

5144388

$8.79

39

SPRING-EXHAUST

7041687

$5.65
