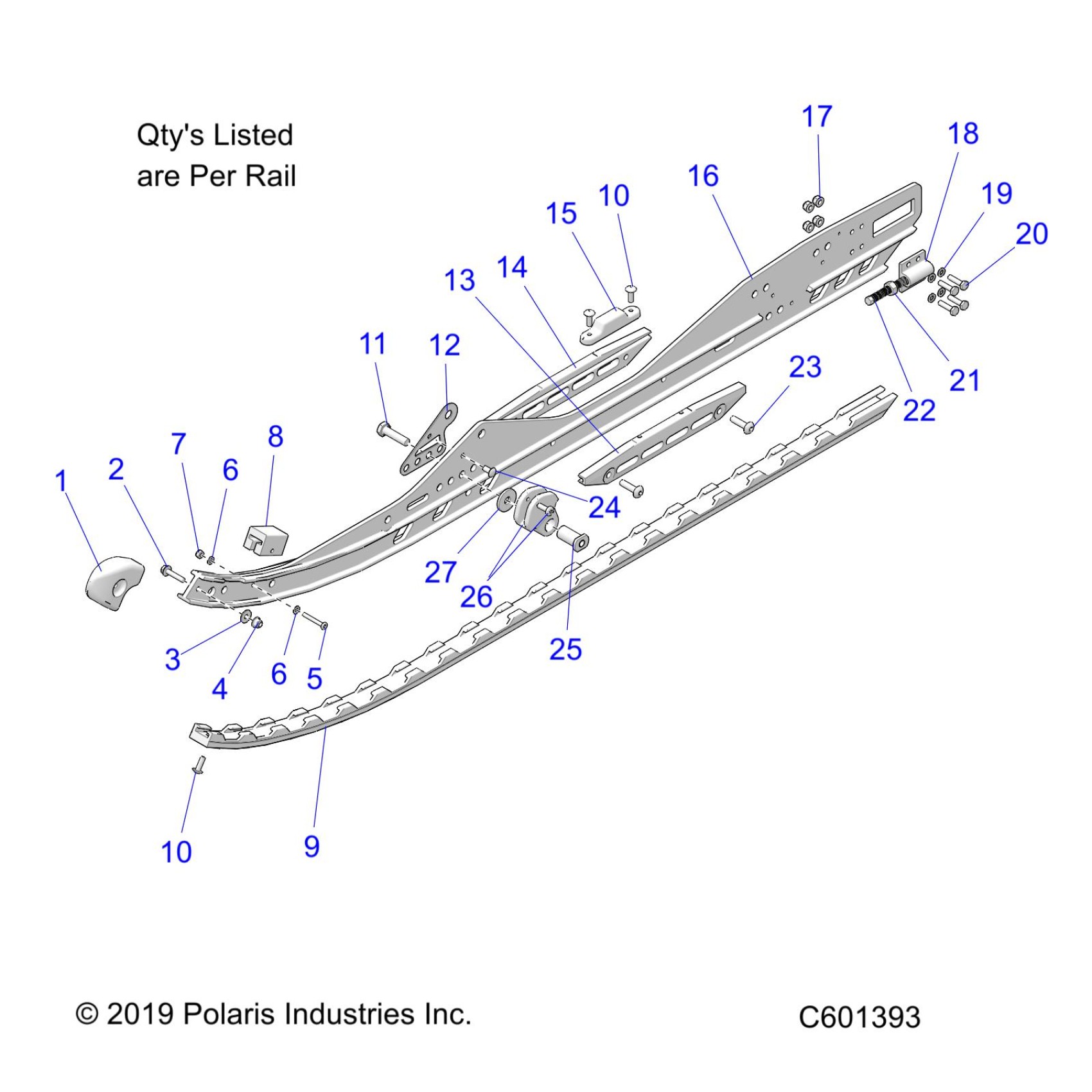

Polaris 600 RACER (R01) - S26MDX6DSA SUSPENSION, RAIL ASM. LH/RH - S26MDX6DSA (C601393) Diagram

#

Description
Price

1

CAP-RAIL TIP SHORT

5458032

$16.99

2

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$2.39

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

5

SCREW-#10-24X1.5,TRX/PN MC-Y

7510504

$6.76

5

SCREW-#10-24X1.5,TRX/PN MC-Y

7510504

$6.76

6

WSHR-FL #10 .203X.438X.032-Y

7555783

$3.99

7

NUT-NYLOC 10-24 Y

7541925

$1.49

8

BUMPER, FRONT, JOUNCE

5521499

$8.89

9

HI-FAX-136 RACE BLK [1 PER RAIL BEAM]

5526345-070

$44.51

10

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

10

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

11

SCR-HH,M10X40 10.9 ZPC P80

7519223

$3.99

12

BRKT-RAIL REINFORCEMENT

5268719

$44.99

13

PLATE-RAIL REINF MOD

5142675

$135.54

14

PLATE-RAIL REINF INNER

5142724

$135.54

15

BUMPER

5432166

$5.59

16

ASM-RAIL 136 RACE LH FLBLK [INCL. 13,14,17-20,23]

1544732-463

$664.99

16

ASM-RAIL 136 RACE RH FLBLK [INCL. 13,14,17-20,23]

1544733-463

$664.99

17

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

18

BLOCK-IDLER BOLT ADJ METRIC

5143210

$34.99

19

WSHR-6.4X12.0X1.6 Z

7556088

$4.79

20

SCR-1/4-20 X 1 HX/CP ZFL

7521212

$2.39

21

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

22

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

23

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

24

RIVET

7661845

$1.49

25

SHAFT-SPRING ROLLER M10

5142783

$33.87

26

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

26

GUIDE-SPRING WIRE

5456666

$28.32

27

WSHR-10.5X31.8X3.43 ZOD HRD

7556800

$7.19
