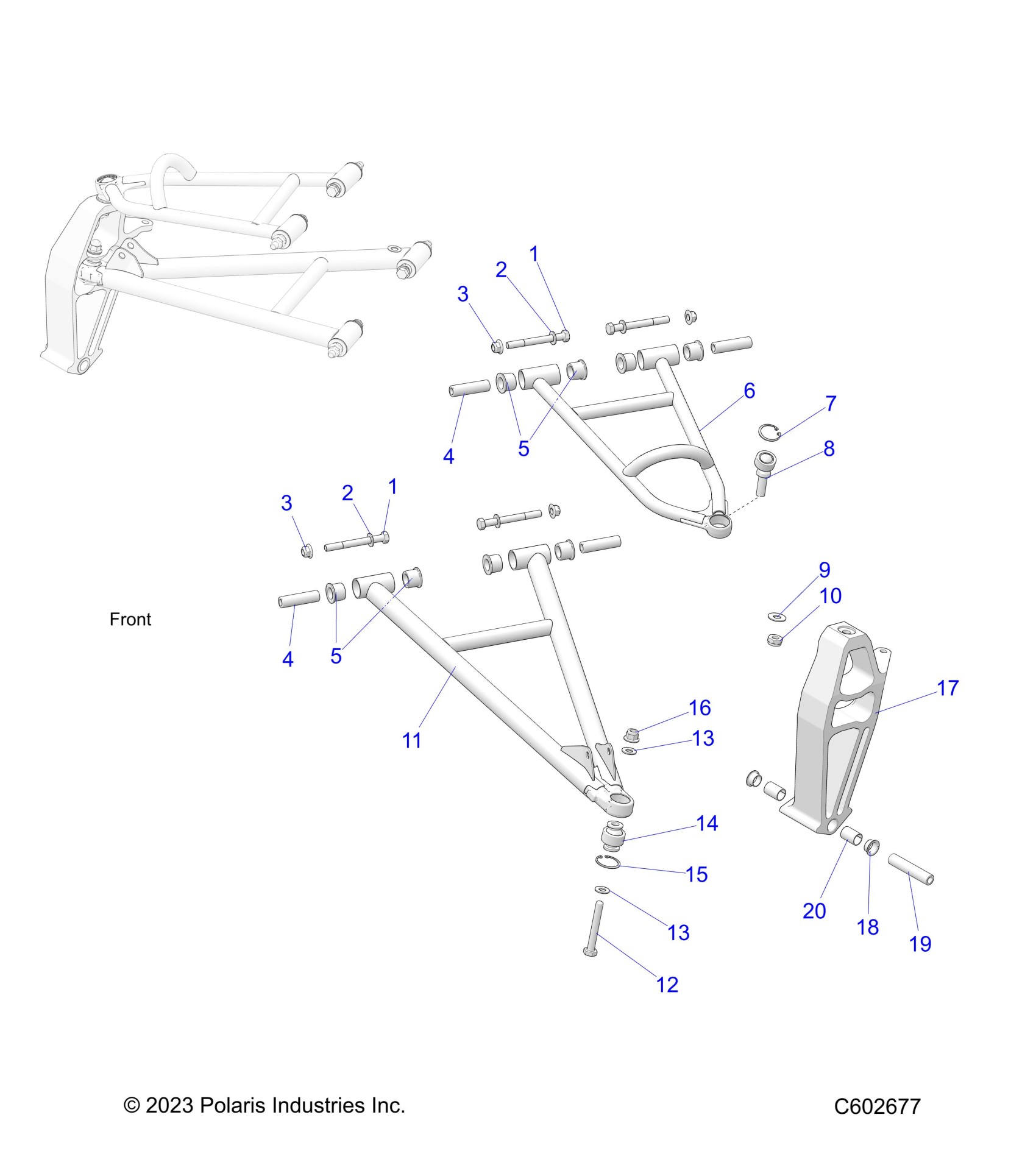

Polaris 600 RACER (R01) - S26MDX6DSA SUSPENSION, FRONT, CONTROL ARMS and SPINDLE - S26MDX6DSA (C602677) Diagram

#

Description
Price

1

SCR-HXFL-M10X1.5X95 10.9 ZFB

7521333-95

$2.39

1

SCR-HXFL-M10X1.5X95 10.9 ZFB

7521333-95

$2.39

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

3

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

3

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

4

SHAFT-PIVOT M10

5145565

$12.94

4

SHAFT-PIVOT M10

5145565

$12.94

5

BUSHING-CONTROL ARM M10

5466688

$7.99

5

BUSHING-CONTROL ARM M10

5466688

$7.99

6

ASM-UCA HD RACE LH BLK [INCLUDES 4-8]

1830249-458

$359.99

6

ASM-UCA HD RACE RH BLK [INCLUDES 4-8]

1830250-458

$359.99

6

WELD-UCA HD RH BLK [UCA ONLY]

1830248-458

$344.99

7

RING-RET INT 1.125"

7710642

$2.39

8

BEARING-SPHERICAL UCA TAPERED

7061326

$33.32

9

WASHER-M12X25X1.6 THRU HARD ZOD

7556994

$3.19

10

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

11

ASM-LCA HD RACE LH BLK [INCLUDES 4, 5, 14 & 15]

1830252-458

$299.99

11

ASM-LCA HD RACE RH BLK [INCLUDES 4, 5, 14 & 15]

1830253-458

$299.99

11

WELD-LCA LH MBLK [LCA ONLY]

1823790-458

$264.99

11

WELD-LCA RH MBLK [LCA ONLY]

1823791-458

$264.99

12

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

13

WSHR-FL .406X.812X.065-Y

7555806

$1.49

13

WSHR-FL .406X.812X.065-Y

7555806

$1.49

14

KIT-BEARING SPHERICAL LWR 10MM [INCL. 15]

2204229

$31.99

15

RING, RETAINING

7710539

$2.39

16

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

17

ASM-SPINDLE RACE MACH LH NAT [INCL. 18,21]

1830245-309

$266.25

17

ASM-SPINDLE RACE MACH RH NAT [INCL. 18,21]

1830246-309

$266.25

18

BUSHING-DU FLANGED

3563607

$7.99

19

BUSHING

5136910

$7.99

20

BUSHING-DU 10DU16

3515866

$8.71
