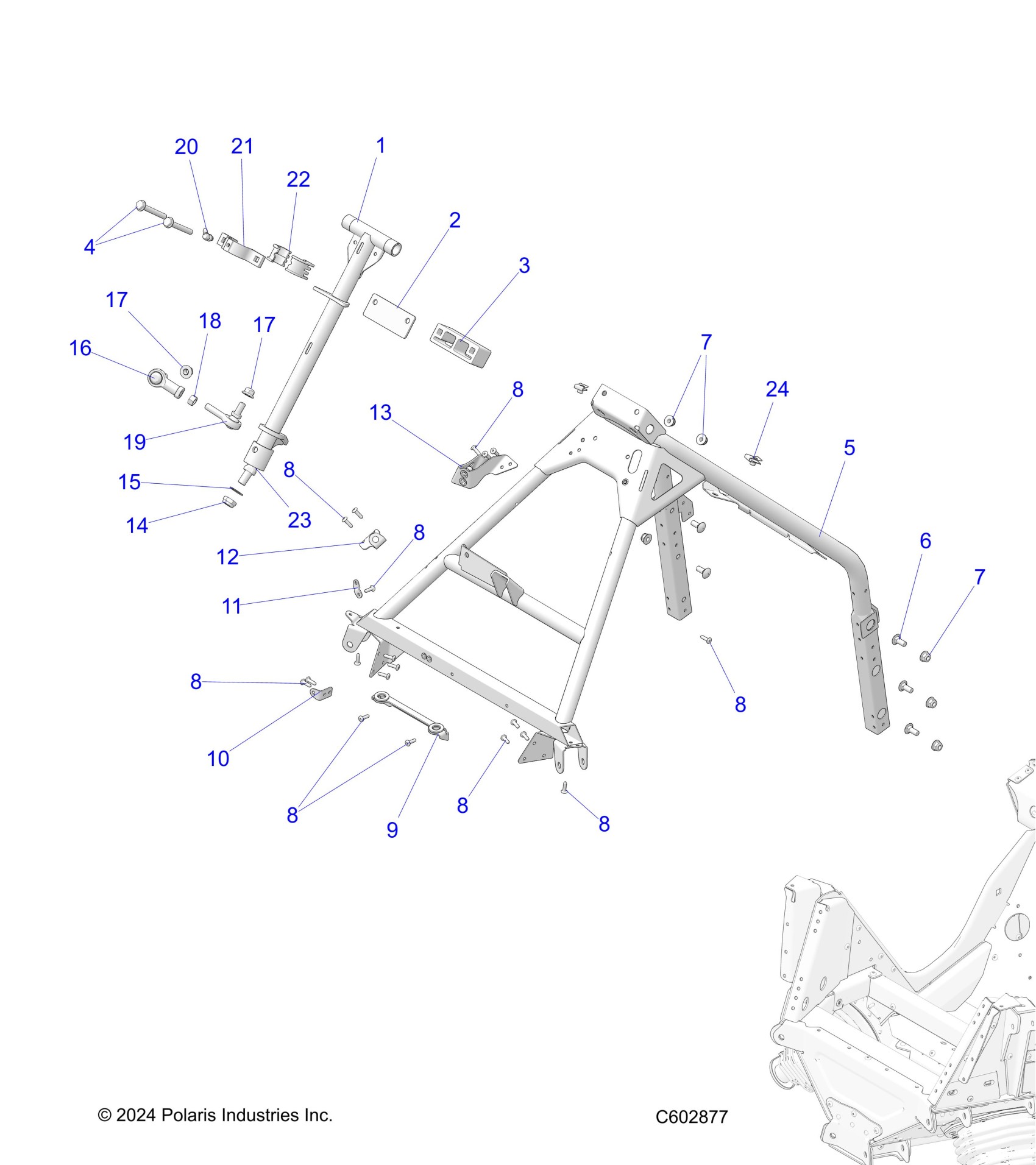

Polaris 600 RACER (R01) - S26MDX6DSA STEERING, STEERING POST AND HOOP - S26MDX6DSA (C602877) Diagram

#

Description
Price

1

POST, STEERING, BLACK

1824509-329

$193.63

2

PLATE, STEERING HOOP

5249193

$8.08

3

BLOCK, STEERING

5142857

$39.99

4

SCR-HXFL-5/16-18X0.25 GR5 ZY3

7518340

$7.19

5

WELD-HOOP STRG RACE BLK

1029396-329

$594.99

6

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

RIVET-3/16-.090-.290

7661637

Unavailable

8

RIVET-3/16-.090-.290

7661637

Unavailable

8

RIVET-3/16-.090-.290

7661637

Unavailable

8

RIVET-3/16-.090-.290

7661637

Unavailable

8

RIVET-3/16-.090-.290

7661637

Unavailable

8

RIVET-3/16-.090-.290

7661637

Unavailable

8

RIVET-3/16-.090-.290

7661637

Unavailable

8

RIVET-3/16-.090-.290

7661637

Unavailable

9

WELD-COIL MOUNT

1026430

$44.99

10

BRKT-RECOIL/PIPE

5267600

$54.99

11

BRKT-PIPE RIGHT BLK

5265827-329

$28.32

12

BRKT-RESONATOR

5267153

$39.99

13

BRKT-FILLER/COOLANT

5265825-329

$69.99

14

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$3.19

15

WASHER-.937X.501X.031,OLIVE D

7556376

$3.19

16

ROD END-3/8-FEMALE

7061240

$79.99

17

NUT-3/8-24 FLG LOC

7547263

$3.19

17

NUT-3/8-24 FLG LOC

7547263

$3.19

18

NUT-3/8-24-2B-Z

7542401

$2.39

19

ROD END-3/8 PL,75�,.750,RH

7061136

$48.56

20

FITTING, ZERK, 90 DEGREE

7080510

$5.59

21

BRACKET, STEERING POST

5132967

$36.41

22

BUSHING-STEERING POST.75DELRIN

5453688

$10.99

23

RING-RET INT 1.125"

7710642

$2.39

23

BEARING-POST, UPPER

7061237

$39.99

24

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59
