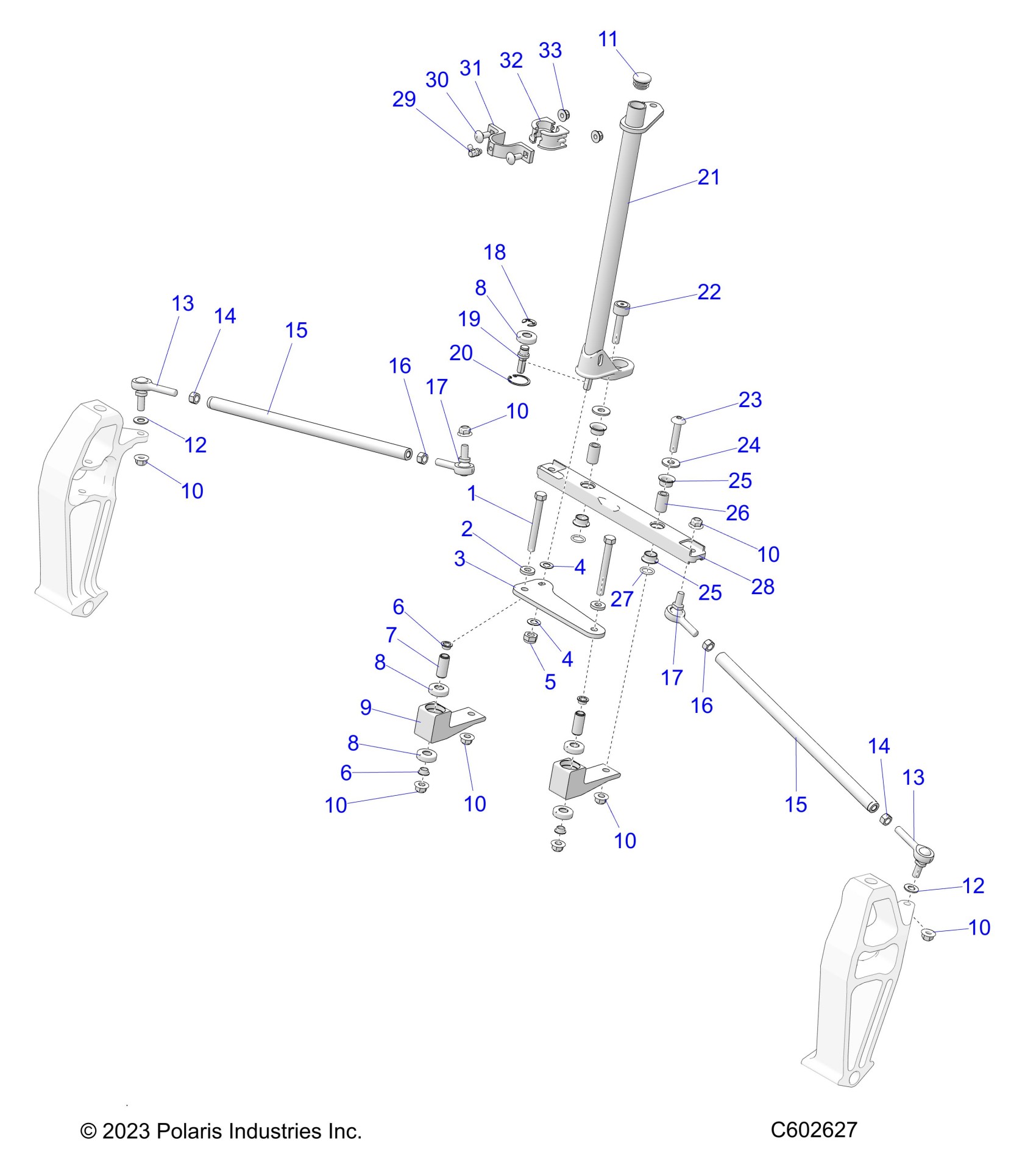

Polaris 600 RACER (R01) - S26MDX6DSA STEERING, LOWER and TIE RODS - S26MDX6DSA (C602627) Diagram

#

Description
Price

1

SCR-3/8-24X3 1/4 HXHDCP GR5-Y

7515406

$7.19

2

WASHER-.380X.813X.150

7556160

$3.99

3

MOUNT-PLATE,PROGRESSIVE ARM

5262565

$35.54

4

WASHER-0.75X.400X.03,FL-Y

7556580

$1.49

4

WASHER-0.75X.400X.03,FL-Y

7556580

$1.49

5

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

6

BUSHING, REDUCER

5132106

$7.99

6

BUSHING, REDUCER

5132106

$7.99

7

SPACER, TUBE

5136298

$9.59

8

Bearing, Ball

3514320

$15.99

8

Bearing, Ball

3514320

$15.99

8

Bearing, Ball

3514320

$15.99

9

ASM., IDLER, STEERING [INCL. 6-8]

1823545

$140.38

10

NUT-3/8-24 FLG LOC

7547263

$3.19

10

NUT-3/8-24 FLG LOC

7547263

$3.19

10

NUT-3/8-24 FLG LOC

7547263

$3.19

10

NUT-3/8-24 FLG LOC

7547263

$3.19

10

NUT-3/8-24 FLG LOC

7547263

$3.19

10

NUT-3/8-24 FLG LOC

7547263

$3.19

10

NUT-3/8-24 FLG LOC

7547263

$3.19

11

PLUG-END CAP,.88 DIA,RIBBED

5432831

$5.59

12

WSHR-FL .406X.812X.065-Y

7555806

$1.49

12

WSHR-FL .406X.812X.065-Y

7555806

$1.49

13

ROD END, LH

7061063

$48.56

13

ROD END, LH

7061063

$48.56

14

NUT-3/8-24-(L.H.)-Y

7542424

$1.49

14

NUT-3/8-24-(L.H.)-Y

7542424

$1.49

15

TIE ROD

5135746

$24.27

15

TIE ROD

5135746

$24.27

16

NUT-3/8-24-2B-Z

7542401

$2.39

16

NUT-3/8-24-2B-Z

7542401

$2.39

17

ROD END-3/8 PL,75�,.750,RH

7061136

$48.56

17

ROD END-3/8 PL,75�,.750,RH

7061136

$48.56

18

RING-RETAINING, "E",EXT., .500

7710901

$7.19

19

STUD-SPACER M10X1.5 8.8 ZOD

7519163

$39.99

20

RING-RET INT 1.125"

7710642

$2.39

21

STEERING POST-LOWER, RACE

1824510-329

$266.25

22

CAM-FOLLOWER STEERING

3514969

$119.99

23

SCR-3/8-24X1.875 TX/TRSS,GR5-Y

7518464

$23.99

24

WASHER

7555983

Unavailable

25

BUSHING-DU FLANGED

-------

Unavailable

25

BUSHING-DU FLANGED

-------

Unavailable

26

PIVOT, RACK, STEERING

5134692

$20.22

27

O-RING

5411220

$6.46

28

ASM., RACK, STEERING [INCL. BUSHINGS]

1824514

$101.17

29

FITTING, ZERK

7080510

$5.59

30

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$4.79

31

BRKT-STEERING POST, ALUM

5132967

$36.41

32

BUSHING-STEERING POST

5453688

$10.99

33

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79
