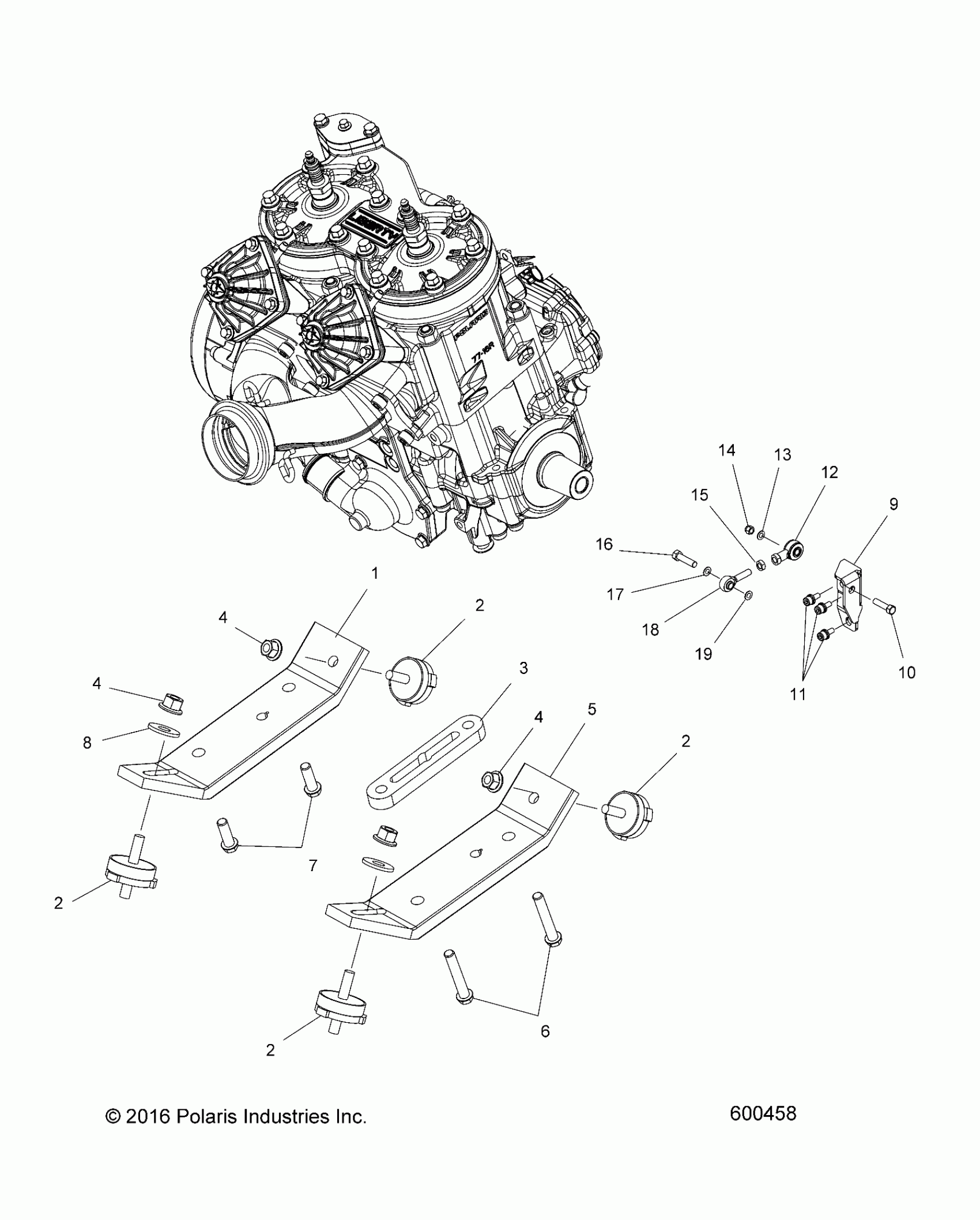

Polaris 600 RACER (R01) - S26MDX6DSA ENGINE, MOUNTING - S26MDX6DSA (600458) Diagram

#

Description
Price

1

STRAP, ENGINE, RH

5136659

$149.99

2

ISOLATOR, RUBBER

3023428

$31.99

2

ISOLATOR, RUBBER

3023428

$31.99

2

ISOLATOR, RUBBER

3023428

$31.99

2

ISOLATOR, RUBBER

3023428

$31.99

3

SPACER, ENGINE

5136720

$44.99

4

NUT-FLANGED,3/8-16 NYLON

7547180

$2.39

4

NUT-FLANGED,3/8-16 NYLON

7547180

$2.39

4

NUT-FLANGED,3/8-16 NYLON

7547180

$2.39

5

STRAP, ENGINE, LH

5136658

$149.99

6

SCR-HXFL-M10X1.5X45 8.8 ZY3

7518531

$4.79

7

SCR-M10X1.50X35 HX/FL

7518644

$4.79

8

Washer, Flat

7555893

$1.49

9

BRKT-TORQUE LIMITER

5260600

$67.76

10

SCR-HH-3/8-24X5.5 GR5 ZY3

7512404

$3.99

11

ASM-SCREW AND WASHER

7516730

$6.39

12

LIMITER-TORQUE

3021411

$93.08

13

WASHER-.390X1.12X.060,FL-Y

7555823

$3.99

14

NUT-3/8-24(NYLOK)-Y

7542439

$1.49

15

NUT-3/8-24-2B-Z

7542401

$2.39

16

SCR-HH-3/8-16X1.75 GR5 ZY3

7515521

$3.99

17

WASHER-SPRING-LOCK

7552603

$1.49

18

ROD END-3/8, RH

7060002

$48.56

19

WASHER-.390X.940X.030-FL-Y

7555797

$3.99
