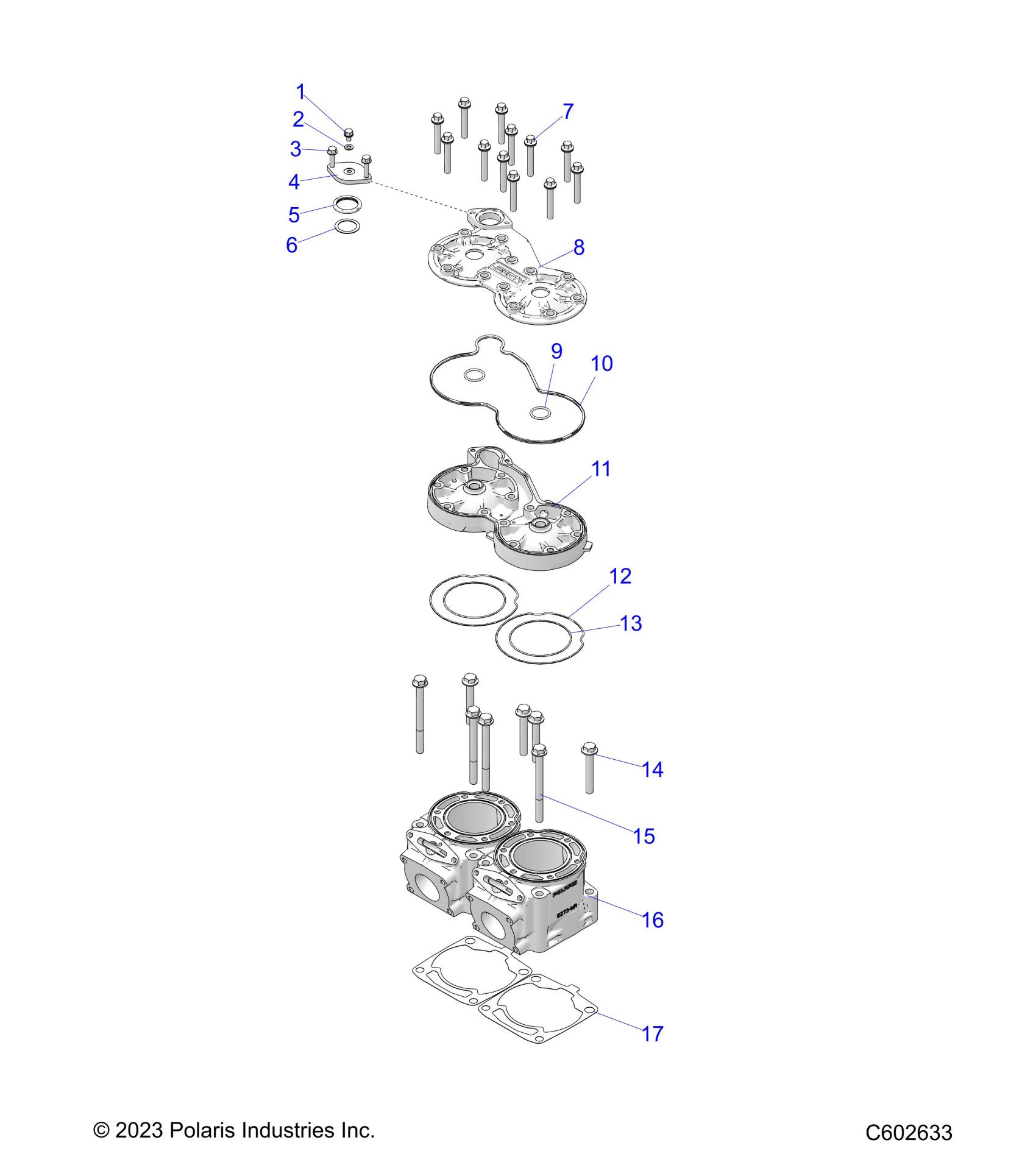

Polaris 600 RACER (R01) - S26MDX6DSA ENGINE, CYLINDER - S26MDX6DSA (C602633) Diagram

#

Description
Price

1

SCREW, BLEED

7517266

$15.99

2

WASHER-FLAT,6.15X12X1MM-AL

7555998

$1.49

3

SCR-M6X1.0X35,HX/FL-Y/D

7516827

$6.39

4

PLATE, BYPASS COVER

5211708

$29.03

5

O-RING-30.0X39.16X3.8 LIPSEAL

5411521

$24.19

6

WASHER, FLAT

7556448

$3.99

7

SCR-M8X1.25X55,HX/FL-Y W/ NYSL

7517533

$4.79

8

COVER, HEAD, BLACK

5632529-329

$48.56

9

O-RING

5411411

$1.49

10

SEAL

5413036

$12.13

11

HEAD-CYL 600EFI RACE

3023940

$499.99

12

SEAL, CYLINDER

5413349

$15.99

13

O-RING

5411044

$28.32

14

SCR-M10X1.50X70 HX/FL-Y/D 10.9

7519095

$31.99

15

SCR-M10X1.50X115MM,HXFL,10.9

7518819

$31.99

16

CYL-73MM 600 RACE MY25

3024378

$789.99

17

GASKET, CYLINDER BASE

5813312

$10.51
