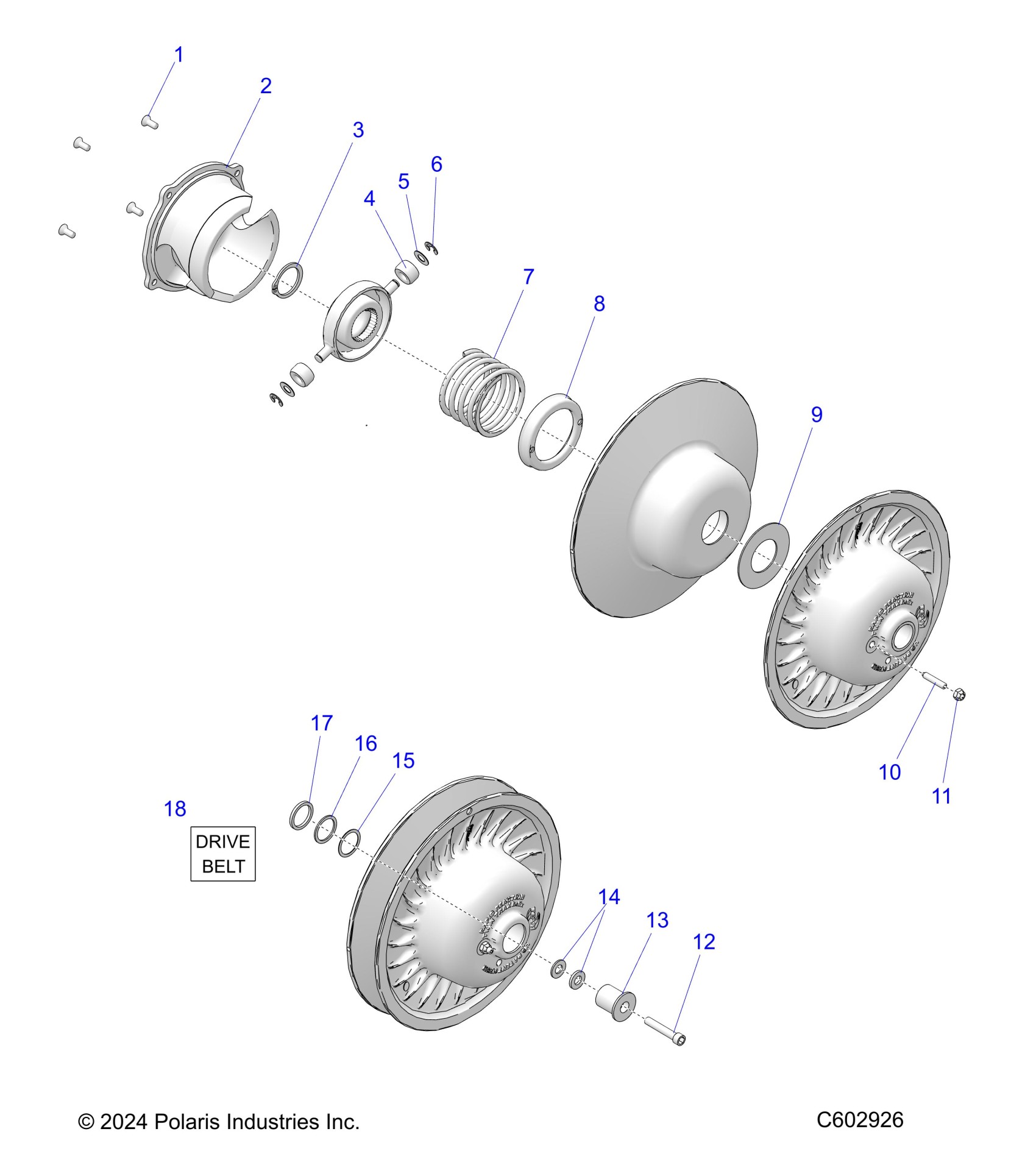

Polaris 600 RACER (R01) - S26MDX6DSA DRIVE TRAIN, CLUTCH, SECONDARY - S26MDX6DSA (C602926) Diagram

Description

Price

ASM., DRIVEN CLUTCH, BASIC, LWT THN [INCL. 1,3-6,8-11]

1323757

$594.99

SCR-FH T-27 1/4-28X.625 PATCH

3235592

$5.59

RAMP-DC(70/44-.46)65/42-.36)LW

5144138

$175.99

RING, RETAINING

7710583

$19.99

ROLLER

5434534

$48.56

WASHER, THRUST

7556226

$5.65

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

SPRING-DRIVE CLUTCH 180/300

7043256

$56.65

WASHER, THRUST

7556728

$19.99

WASHER

7556370

$23.99

SCREW-SET HEX 1/4-20X1.25

3236575

$5.99

NUT-1/4-20,FLEXLOC,LIGHT,HEX-Z

7542103

$5.59

SCR-SH-5/16-18X1.75 GR5 ZY3

7517778

$3.99

SPACER-DRIVEN INPUT SHAFT AL

5142615

$34.99

WASHER, FLAT, .344x.875x.063

7555734

$1.49

WASHER-1.000X1.254X.023-Z

7555917

$2.39

WSHR-1.00X1.250X.120-Y

7555864

$2.39

BUSHING-1.00X1.250X16 GA-Y

7556509

$1.59

BELT-DRV10.625CDCVTMBLS6A-RACE

3211208

$219.99
