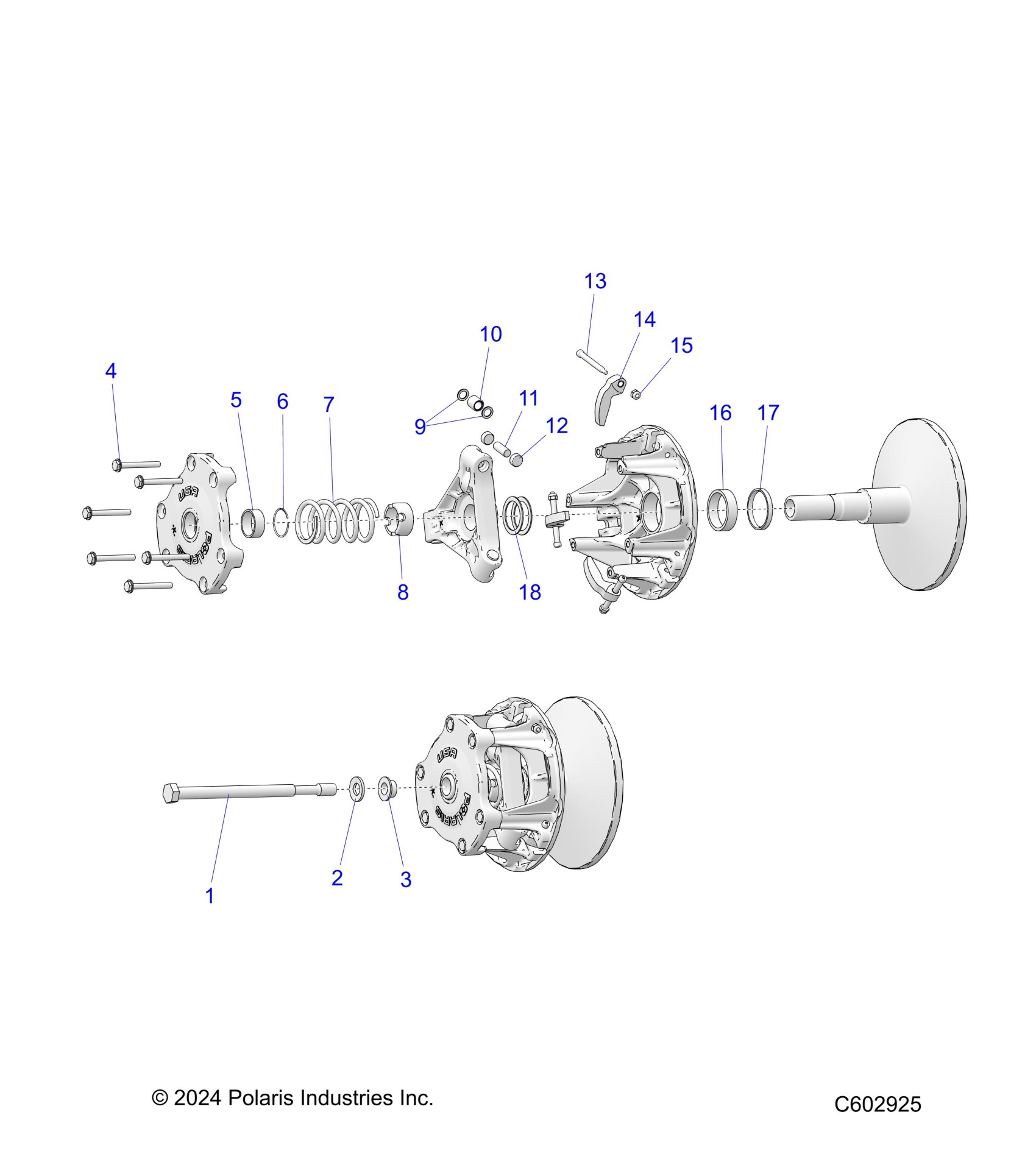

Polaris 600 RACER (R01) - S26MDX6DSA DRIVE TRAIN, CLUTCH, PRIMARY - S26MDX6DSA (C602925) Diagram

Kit - Shim, Drive Clutch

2200387

$24.27

ASM., DRIVE CLUTCH, BASIC, RACE .100 [INCL. ALL, LESS 1-3,7,14]

1323528

$589.99

SCR-M14X1.5X215,HX,10.9,Y35,R

7518412

$34.99

WASHER-BLVL,.567X1.125X.118-Y

7556003

$6.39

WASHER-CLUTCH RET,M14

5132441

$23.99

SCR-1/4-20X2 1/4 HX FLNG GR5-Y

7518349

$1.49

BEARING, COVER, GARMAX

3576516

$28.32

RING-RETAINING,COVER

7710417

$1.49

SPRING-CLUTCH DRIVE 165/310

7045965

$56.65

NUT-JAM

5020425

$23.99

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321622

$32.37

PIN, ROLLER

5133079

$6.39

BUTTON, GUIDE,(10)

5430445

$6.39

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

ASM-WEIGHT/BUSHING (10-62RD) "STOCK"

1327127

$74.99

ASM-WEIGHT/BUSHING (10-60RD) "OPTION"

1327129

$74.99

ASM-WEIGHT/BUSHING (10-64RD) "OPTION"

1327167

$134.99

NUT-10-24-FLEX LOC-Z

7541906

$3.19

BEARING-SLEEVE

3514641

$19.99

INSERT-MOVEABLE

5010188

$7.99

SPACER, .050

5210754

$3.19
